Sale!

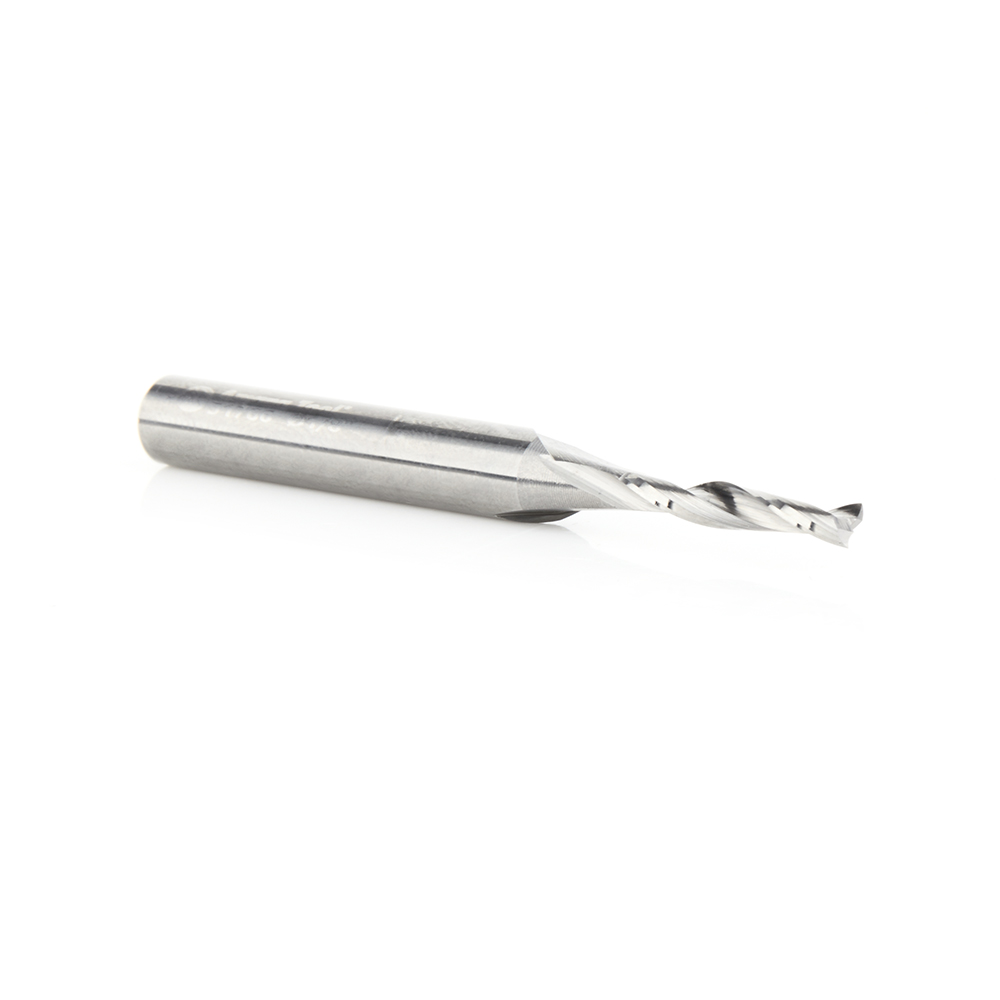

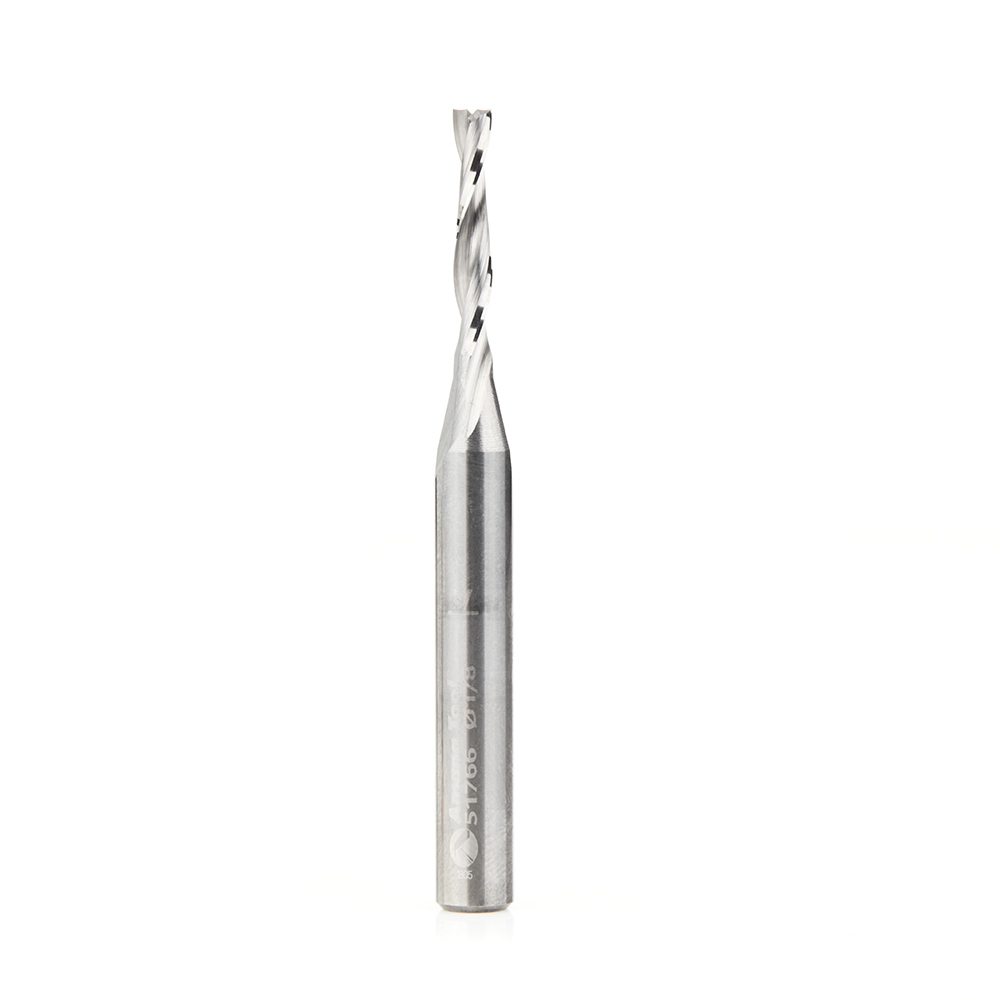

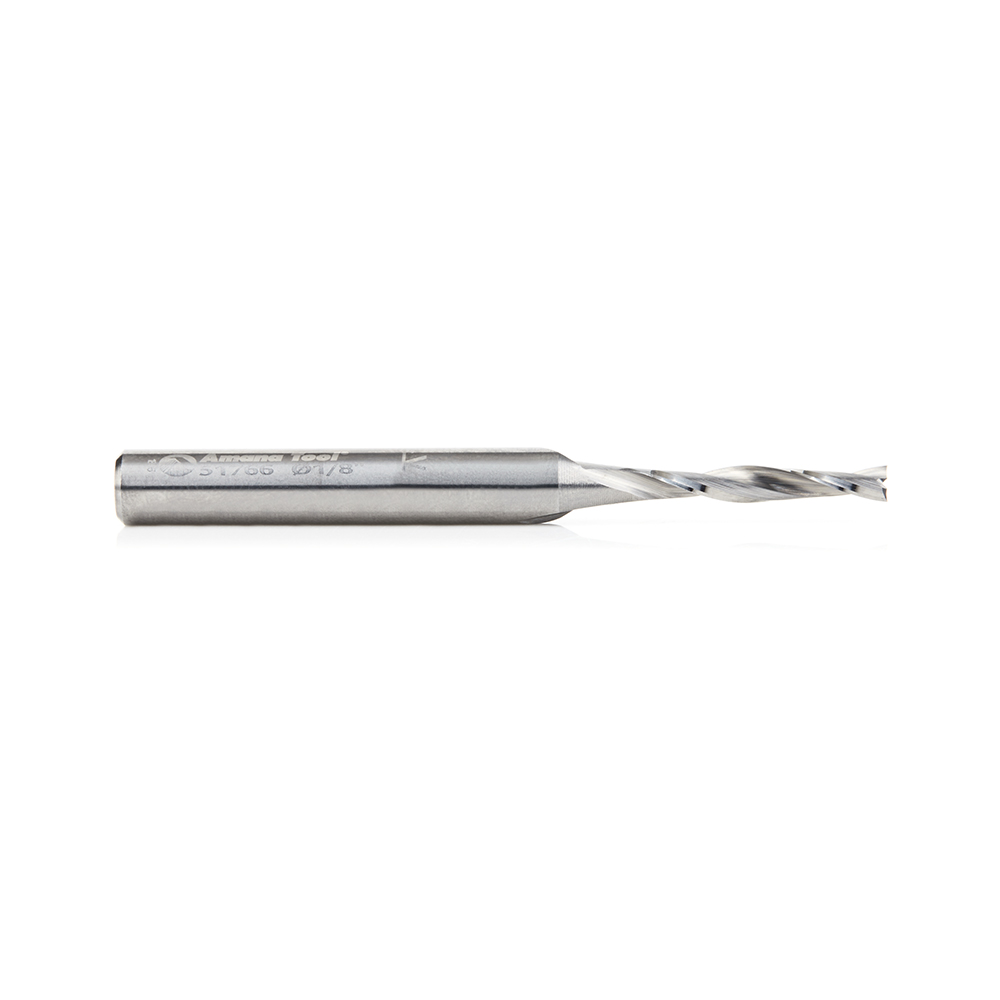

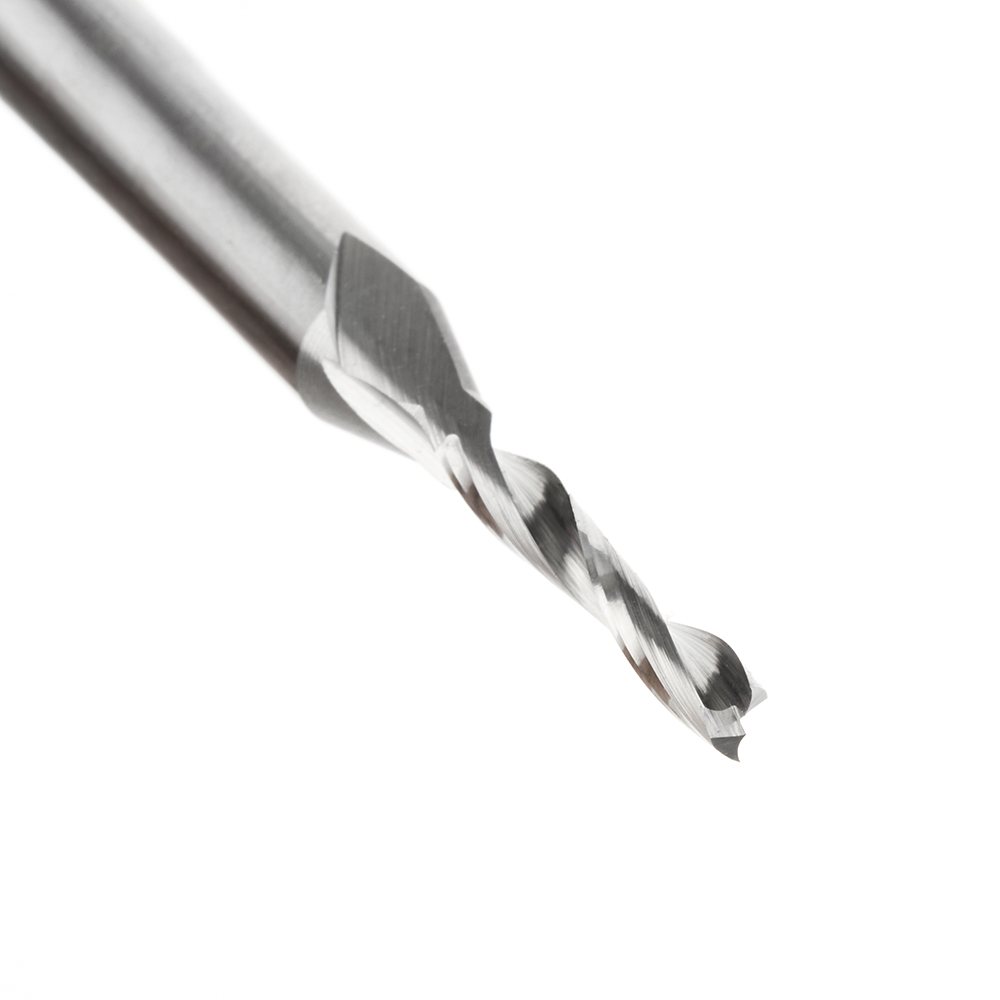

Amana 51766 Solid Carbide CNC Spiral Double ‘O’ Flute, Plastic Cutting 1/8 Dia x 3/4 x 1/4 Shank x 2-1/2 Inch Long Up-Cut Router Bit

Name: Amana 51766 Solid Carbide CNC Spiral Double 'O' Flute, Plastic Cutting 1/8 Dia x 3/4 x 1/4 Shank x 2-1/2 Inch Long Up-Cut Router Bit
SKU: Amana 51766
Availability: InStock

Original price was: $79.75.Current price is: $59.82.

1/8″Dx1/4″SHK 2FL UPCUTPLASTIC

UPC: 738685517666 SKU: Amana 51766 Categories: Amana Tool, CNC Router Bits, Plastic Cutting Router Bits, Solid Carbide Spiral 'O' Flute Plastic Cutting CNC Router Bits

Item Description

To be used only on CNC machines and routers with automatic feeding.

Produce super clean smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.

Excellent for cutting:

Plastic/Acrylic
Acetal and Nylon
Acrylic Stone
Acrylonitrile Butadiene Styrene (ABS)
Aluminum Composite Material (ACM)
Alupanel®
Corian
Coroplast®**
Corrugated Plastics* such as Correx Boards and Polypropylene
Crosslinked Polyethylene (XPE, PEX, XLPE)
Delrin
Dibond®
Epoxy
Expanded PVC
Extruded Acrylic
Foam Board
Fomex®
Gatorfoam®***
Hard Plastic

High Density Polyethylene (HDPE)
High Density Urethane (HDU Board)
High Impact Polystyrene (HIPS)
High Impact Polystyrene (HIPS) for digital printing
High Pressure Laminates (HPL)
Hydroxy-Terminated Polyether (HTPE)
King ColorCore® The Multi-Color Engravable Polymer Sheet.

Laminate
Low Density Polyethylene (LDPE)
LubX®
Lucite®
Mechanical/Engineered Plastics
Perspex® Cast Acrylic Sheet
Plexiglas®
Poly (methyl methacrylate) (PMMA)
Polycarbonate (Lexan™)†
Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
Polystyrene (PS)
PVC
Sign Foam
Sintra PVC
Solid Surface
StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
Teflon®
Thermoplastic Polyolefin (TPO)
Ultra High Molecular Weight Polyethylene (UHMWPE)
Urethane
Wood

Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

A soft plastic cardboard made with super soft super flexible PVC.

Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Maximum RPM:**35,000

Specifications

Direction	Up-Cut
(D) Diameter	1/8
(B) Cutting Height	3/4
(d) Shank	1/4
Overall Length (L)	2-1/2
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Direction	Tool No.
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	Up-Cut	51761
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	51762
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	51781
3/16 (4.76mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	Up-Cut	51763
1/4 (6.35mm)	7/8 (22.23mm)	1/4 (6.35mm)	3 (76.20mm)	Up-Cut	51765
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	Up-Cut	51767
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	51768
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Up-Cut	51769
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	Down-Cut	51784
3/8 (9.53mm)	1-1/8	3/8 (9.53mm)	3 (76.20mm)	Up-Cut	51780

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
