Sale!

54200 Carbide Tipped Classical Multi-Form 2-1/4 Dia x 1-7/8 x 1/2 Inch Shank

Amana 54200 Carbide Tipped Classical Multi-Form 2-1/4 Dia x 1-7/8 x 1/2 Inch Shank

Name: Amana 54200 Carbide Tipped Classical Multi-Form 2-1/4 Dia x 1-7/8 x 1/2 Inch Shank
SKU: Amana 54200
Availability: InStock

Original price was: $159.45.Current price is: $119.59.

CLASSICAL MULTI FORM 1/2 SHANK

UPC: 738685942000 SKU: Amana 54200 Categories: Amana Tool, Architectural Router Bits, Router Bits

Item Description

This one bit is designed to cut more than 40 different molding patterns. By making simple adjustments to the cutter height and fence position, and making two or more passes, you can produce a wide variety of profiles and architectural details.

Use the bit only in a table-mounted router. Available with 1/2″ shank only. Tool #54198 is a miniature version of the multi-form bit.

Maximum RPM 12,000.

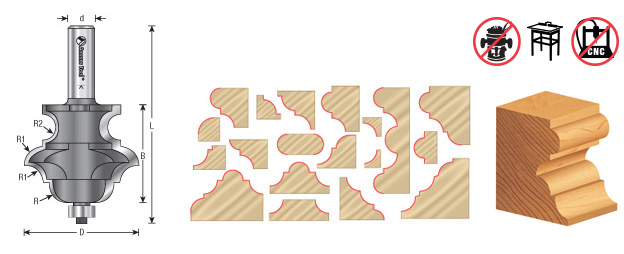

Specifications

Diameter (D)	2-1/4
Radius (R)	23/64
Cutting Height (B)	1-7/8
Shank (d)	1/2
Overall Length (L)	4
R2	1/4
Replacement Bearing	47706
R1	21/64
Flutes	2

Weight	0.74 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
