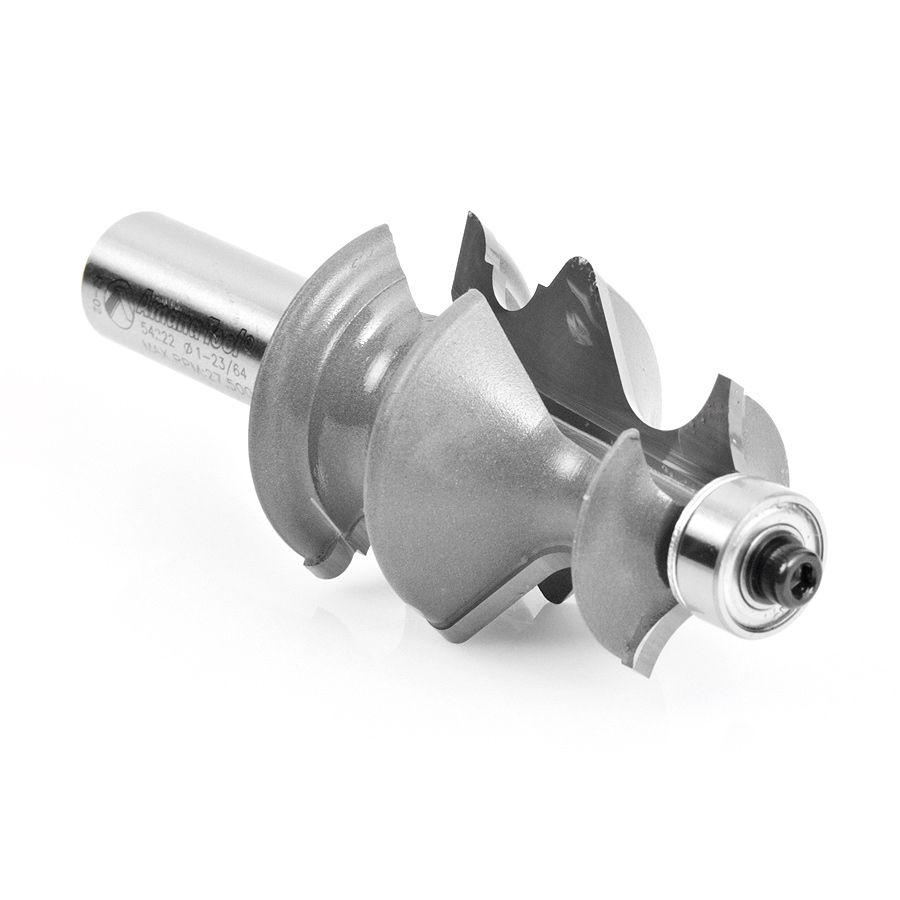

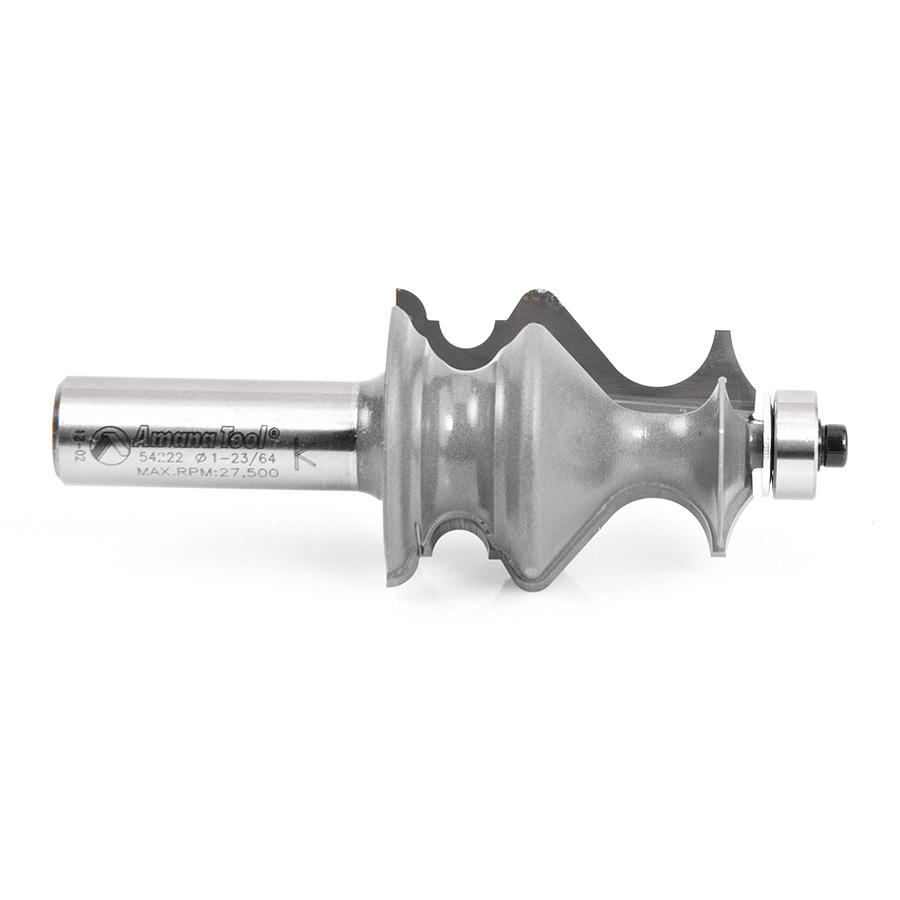

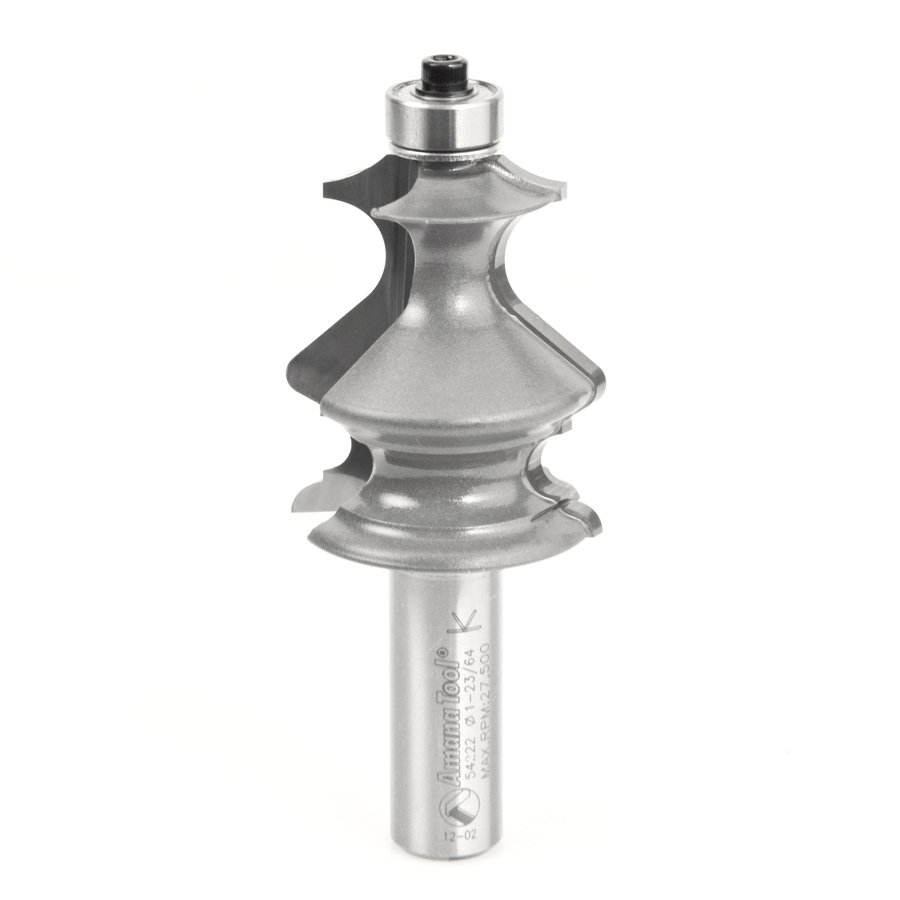

54222 Carbide Tipped Classical Architectural Molding 1/8 x 3/32 x 1/4 x 7/16 Radius x 1-3/8 Dia x 1-5/8 x 1/2 Inch Shank

Amana 54222 Carbide Tipped Classical Architectural Molding 1/8 x 3/32 x 1/4 x 7/16 Radius x 1-3/8 Dia x 1-5/8 x 1/2 Inch Shank

Name: Amana 54222 Carbide Tipped Classical Architectural Molding 1/8 x 3/32 x 1/4 x 7/16 Radius x 1-3/8 Dia x 1-5/8 x 1/2 Inch Shank
SKU: Amana 54222
Availability: InStock

Original price was: $140.90.Current price is: $105.68.

CLASSICAL MOULDING 1/2 SHANK

UPC: 738685942222 SKU: Amana 54222 Categories: Amana Tool, Architectural Molding Router Bits, Architectural Router Bits, Router Bits

Item Description

These bits are designed for routing architectural and furniture moldings and trim. Almost all have the profile laid out vertically, reducing the diameter of the bit. These bits should be used in a 2+ horsepower, table-mounted router, and many should be run at reduced speed. Although most have ball-bearing guides, guiding the cuts with the fence is recommended.

Maximum RPM 18,000

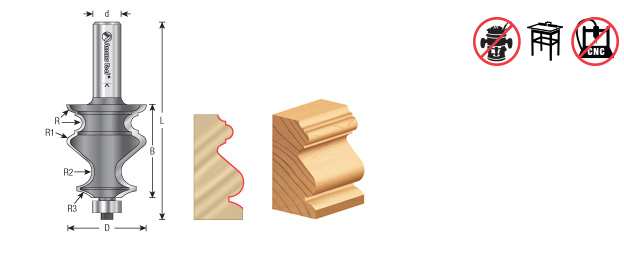

Specifications

Diameter (D)	1-3/8
Radius (R)	1/8
Cutting Height (B)	1-5/8
Shank (d)	1/2
Overall Length (L)	3-1/2
Max RPM	18,000
Type	#8
R2	1/4
Replacement Bearing	47706
R3	7/16
R1	3/32
Flutes	2

Other Sizes Available

Type	Diameter (D)	D1	Radius (R)	R1	R2	R3	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
#9#9#9#9	1-3/8	7/8 (22.23mm)	1/8 (3.18mm)	1/16 (1.59mm)	1/4 (6.35mm)	7/16 (11.11mm)	1-5/8	1/2 (12.70mm)	3-1/2	54224

Weight	0.3 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
