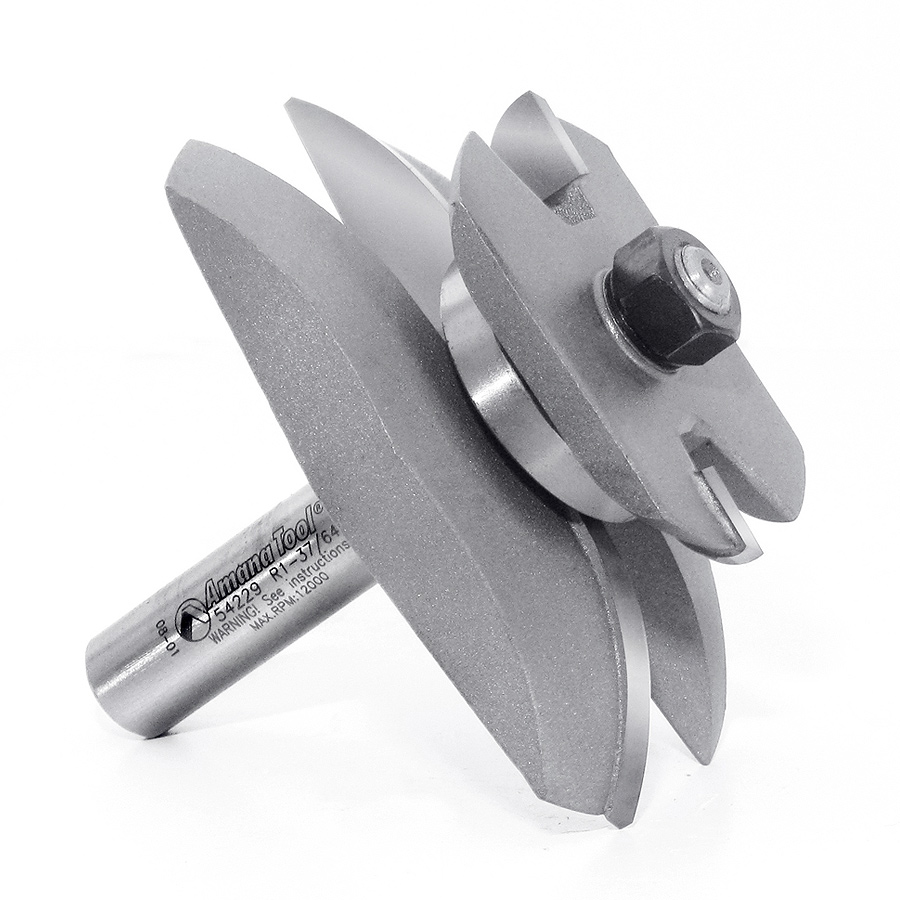

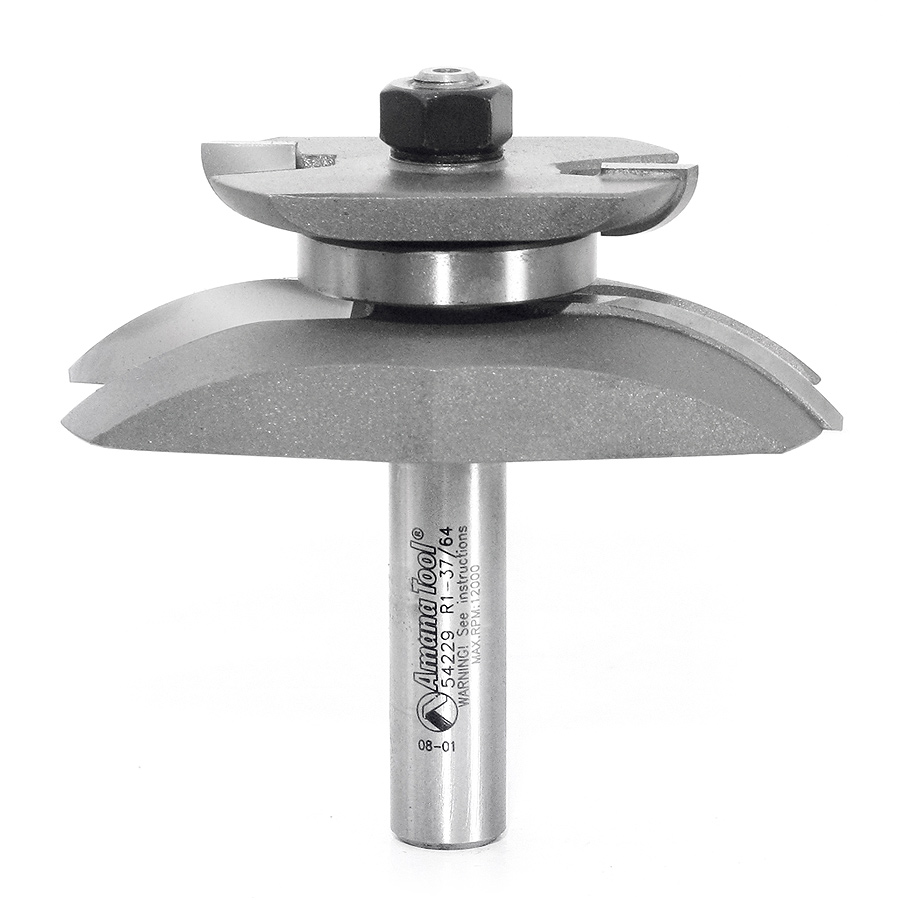

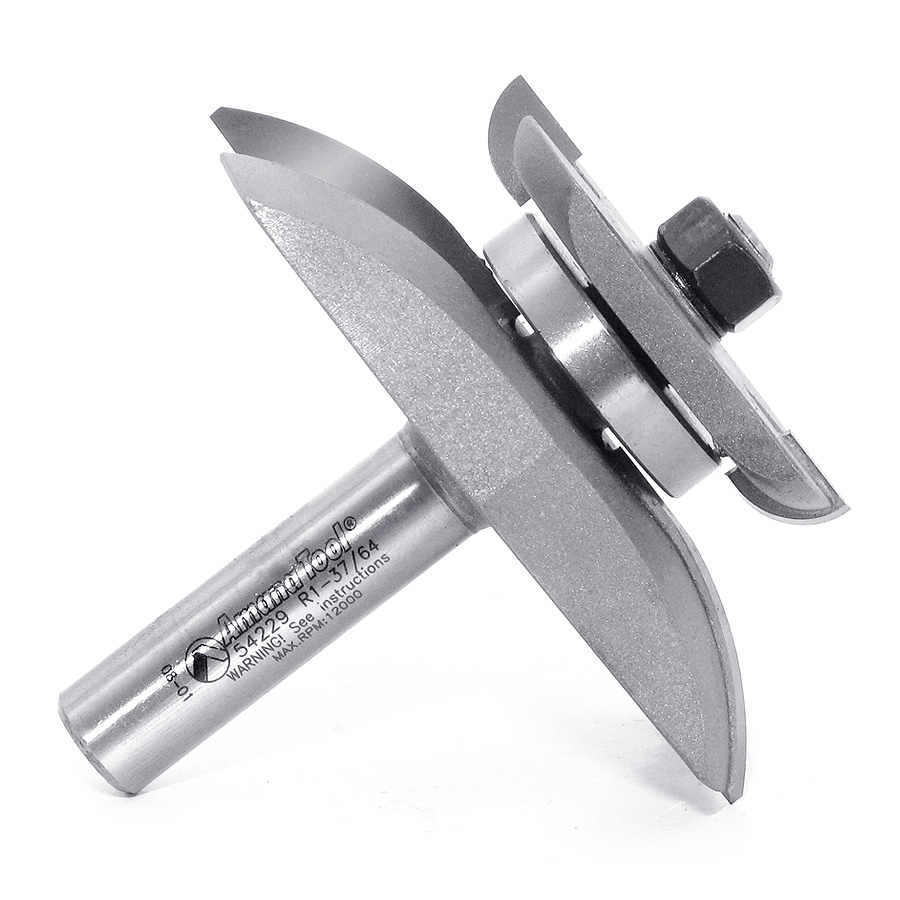

54229 Carbide Tipped Cove Raised Panel with Back Cutter 1-9/16 Radius x 3-3/8 Dia x 1-1/16 x 1/2 Inch Shank

Amana 54229 Carbide Tipped Cove Raised Panel with Back Cutter 1-9/16 Radius x 3-3/8 Dia x 1-1/16 x 1/2 Inch Shank

Name: Amana 54229 Carbide Tipped Cove Raised Panel with Back Cutter 1-9/16 Radius x 3-3/8 Dia x 1-1/16 x 1/2 Inch Shank
SKU: Amana 54229
Availability: InStock

Original price was: $248.15.Current price is: $186.12.

COVE RAISED PANEL /BACK CUTTER

UPC: 738685542293 SKU: Amana 54229 Categories: Amana Tool, Door Making Router Bits, Raised Panel Router Bits, Router Bits

Item Description

Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8″. As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended.

Note:** Reveal (‘A’) reflects the total length of cut. Therefore, you must deduct 3/8″ (usually) for allowing the panel to recess into the frame.

Note:** To recieve (‘A1’) use bearing #47763.

Maximum RPM 12,000.

Replacement Parts

Replacement Bearings	Replacement Back Cutter
47713 47763	55435

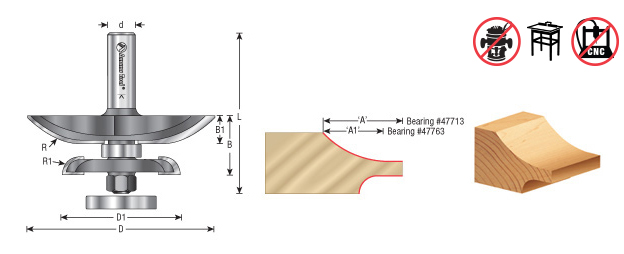

Specifications

Cut Depth (A)	1-3/8
Diameter (D)	3-3/8
D1	2-1/8
Radius (R)	1-9/16
Cutting Height (B)	1-1/16
B1	1/2
Shank (d)	1/2
Overall Length (L)	2-15/16
A1	1-1/16
Replacement Bearing	47713,47763
R1	5/16
Flutes	2

Weight	0.66 lbs

Brand

Amana Tool
