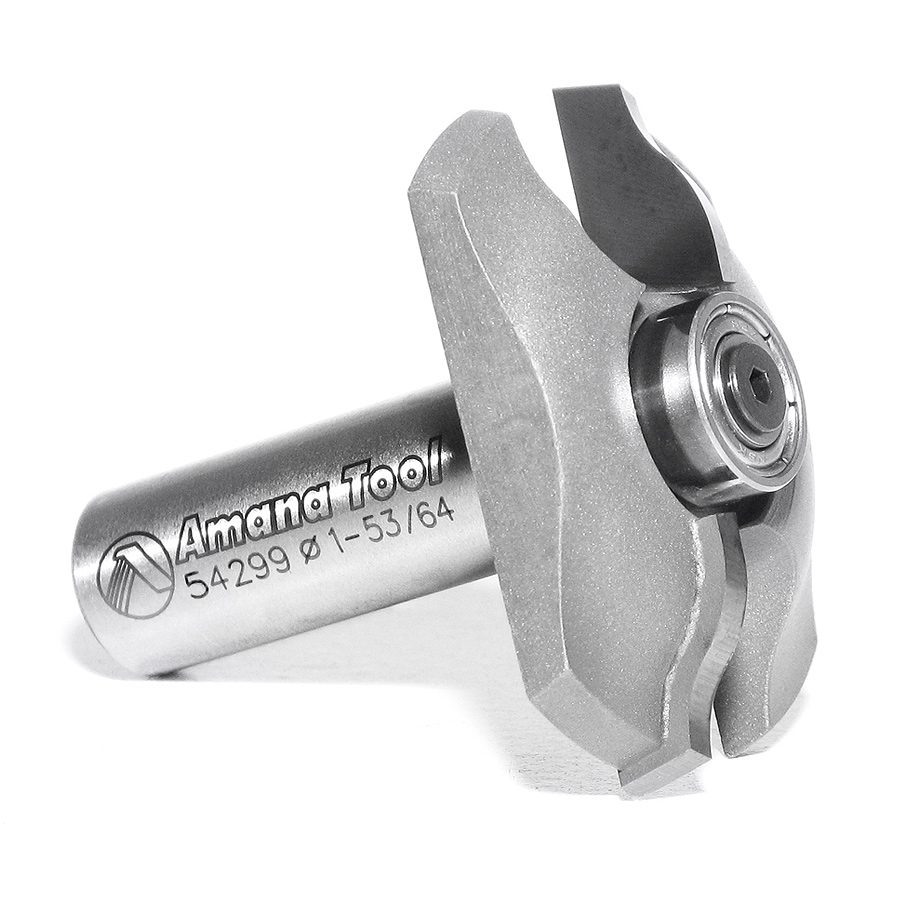

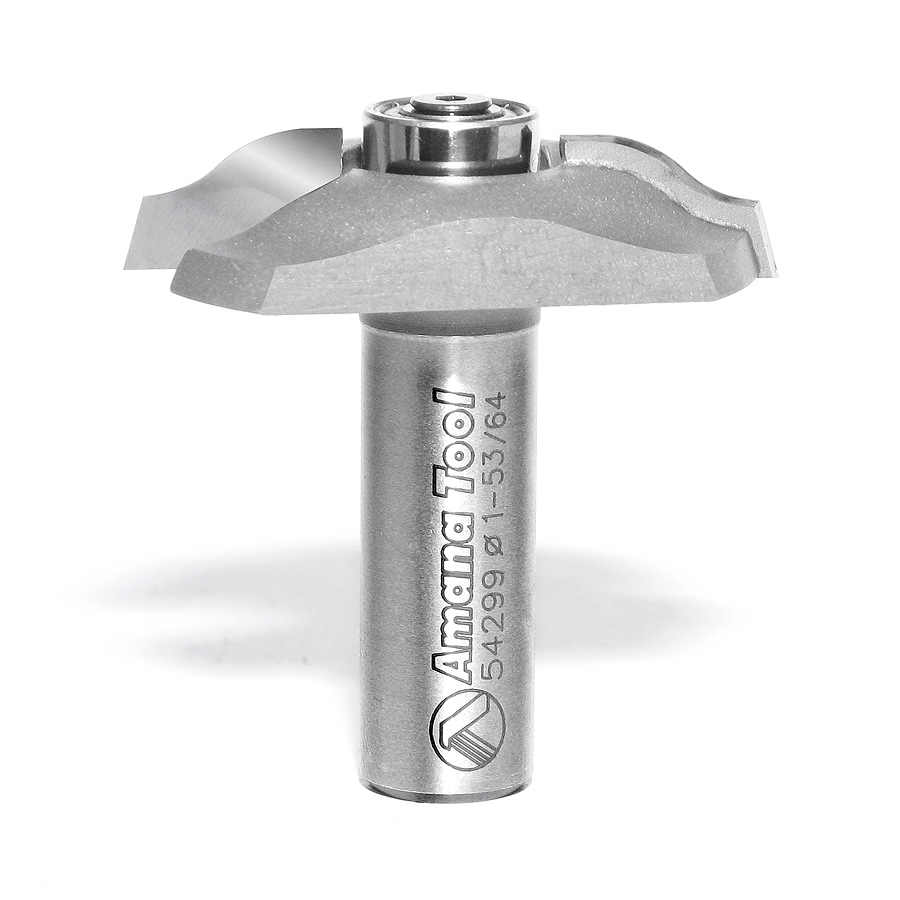

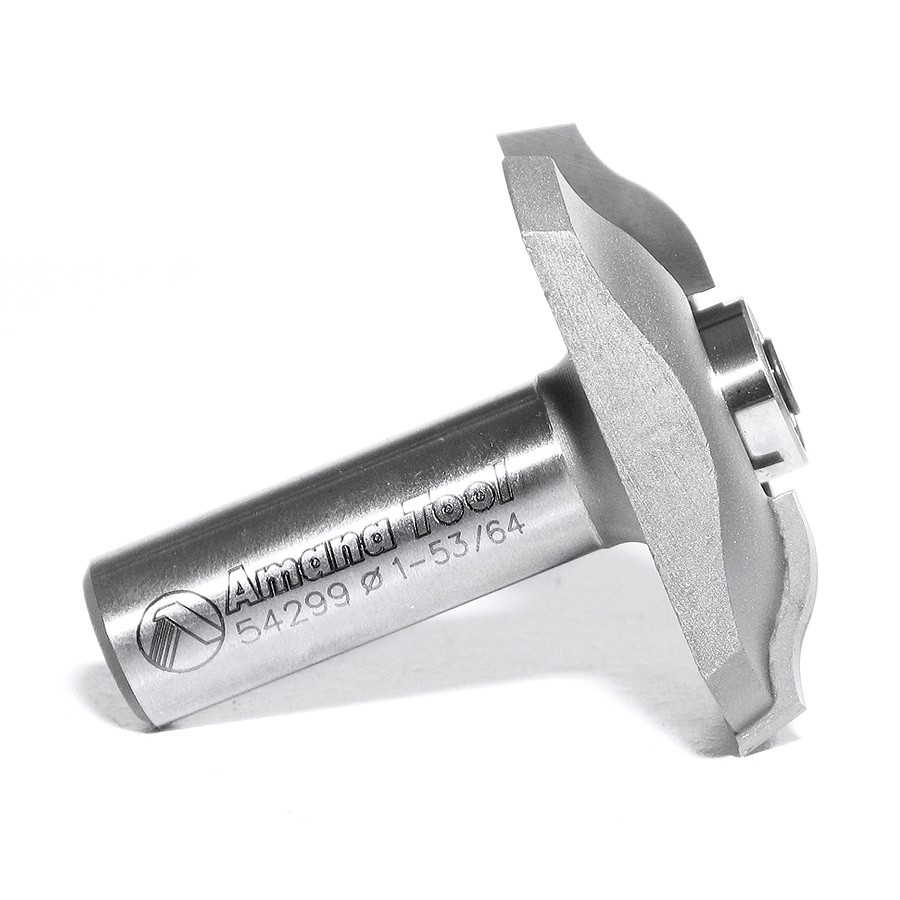

54299 Carbide Tipped Base Molding Ogee Edge Detail with BB 19/64 x 13/32 Radius x 1-53/64 Dia x 3/8 x 1/2 Inch Shank

Amana 54299 Carbide Tipped Base Molding Ogee Edge Detail with BB 19/64 x 13/32 Radius x 1-53/64 Dia x 3/8 x 1/2 Inch Shank

Name: Amana 54299 Carbide Tipped Base Molding Ogee Edge Detail with BB 19/64 x 13/32 Radius x 1-53/64 Dia x 3/8 x 1/2 Inch Shank
SKU: Amana 54299
Availability: InStock

Original price was: $115.35.Current price is: $86.52.

BASE MOLDING W/BB 1-13/16″ D.

UPC: 738685542996 SKU: Amana 54299 Categories: Amana Tool, Architectural Router Bits, Base Molding Router Bits, Router Bits

Item Description

One of the easiest ways to dress up a room is to replace the skimpy base molding with a wide, bold profile. Amana offers classic ogee profiles in two sizes so that you can choose a size that best fits with the architectural details in the room. For quick easy installation we recommend that you attach the molding to the top of the base. This method greatly simplifies installation by allowing for a butt joint on inside corners.

Not for use in CNC machines.

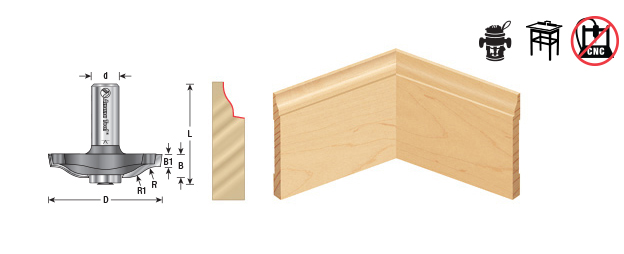

Specifications

Diameter (D)	1-53/64
Radius (R)	19/64
Cutting Height (B)	3/8
B1	7/32
Shank (d)	1/2
Overall Length (L)	2-1/2
Replacement Bearing	47706
R1	13/32
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	R1	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Replacement Bearing	Tool No.
1-7/16	5/16 (7.94mm)	3/8 (9.53mm)	19/32 (15.08mm)	1/4 (6.35mm)	1/2 (12.70mm)	2 (50.80mm)	–	54297

Weight	0.26 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
