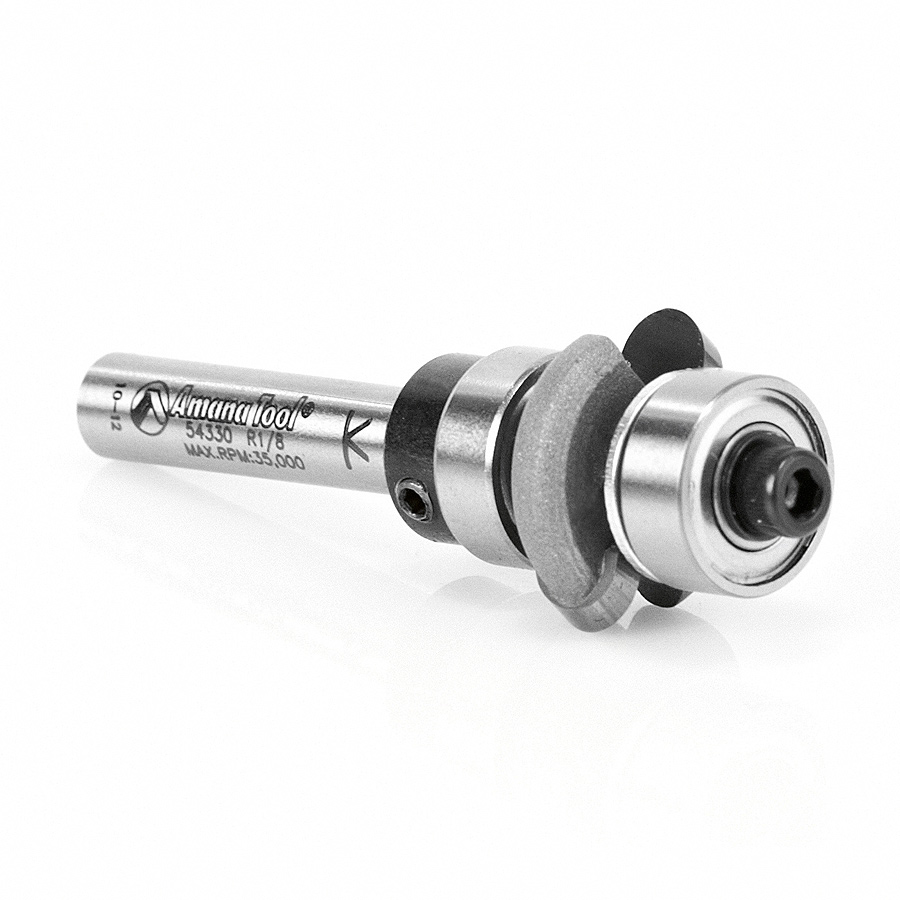

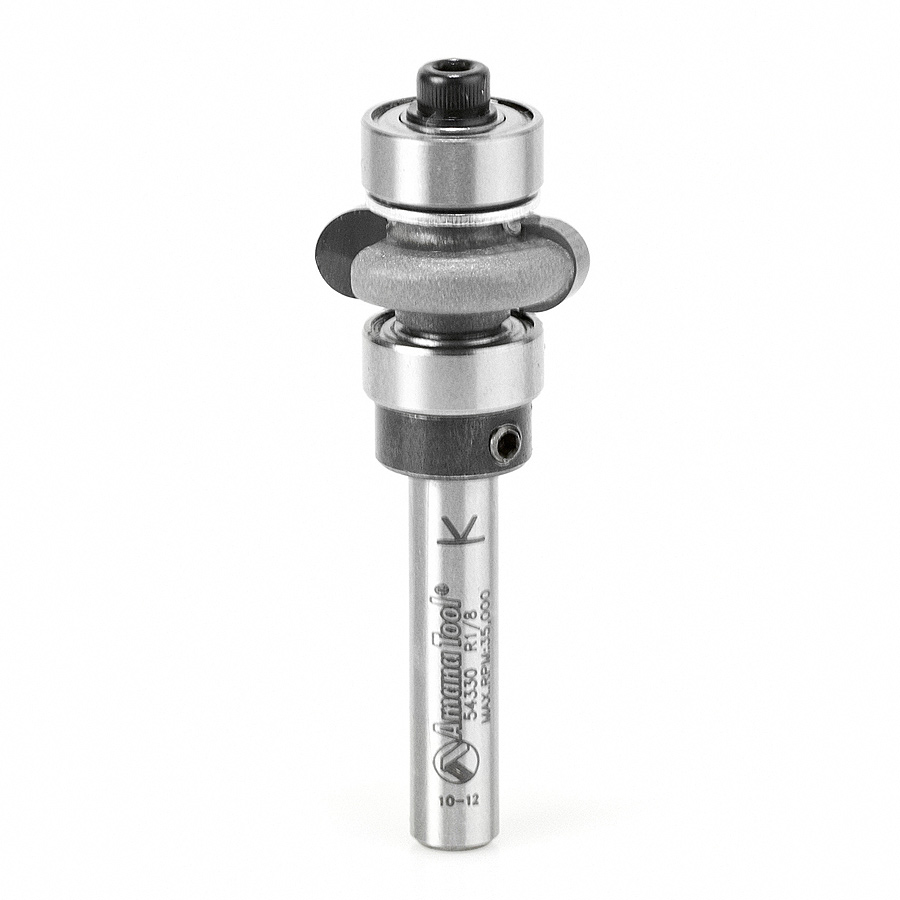

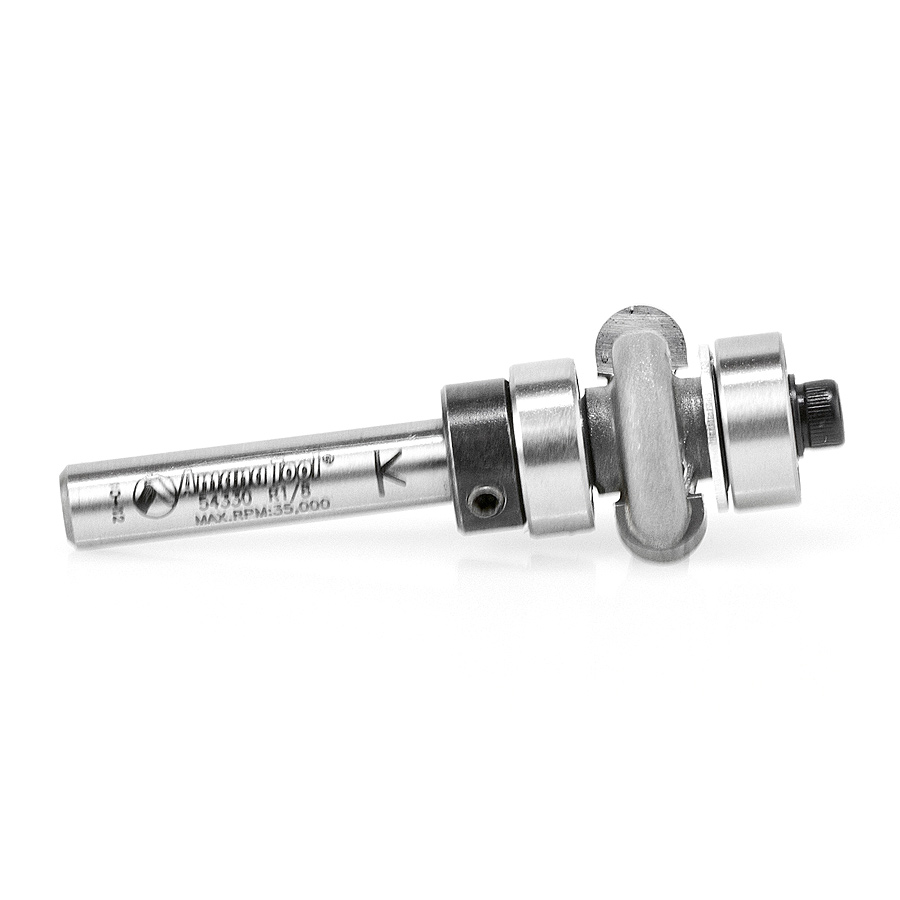

54330 Carbide Tipped Edge Fluting Assembly 1/8 Radius x 3/4 Dia x 1/4 x 1/4 Inch Shank

Amana 54330 Carbide Tipped Edge Fluting Assembly 1/8 Radius x 3/4 Dia x 1/4 x 1/4 Inch Shank

Name: Amana 54330 Carbide Tipped Edge Fluting Assembly 1/8 Radius x 3/4 Dia x 1/4 x 1/4 Inch Shank
SKU: Amana 54330
Availability: InStock

Original price was: $91.35.Current price is: $68.52.

FLUTE ASSEMBLY 1/8 RAD.1/4 SHK

UPC: 738685943304 SKU: Amana 54330 Categories: Amana Tool, Edge Fluting Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut individual flutes – shallow, small-radius grooves – in narrow edges without having to balance a router on that edge. The bit cuts at right angles to the bit axis. Flute depth is controlled by the pilot bearing, the flute’s position by the router’s bit-height setting. Use in a handheld or table-mounted router.

Specifications

Diameter (D)	3/4
Radius (R)	1/8
Cutting Height (B)	1/4
Shank (d)	1/4
Overall Length (L)	2-1/4
Replacement Collar	47724
Replacement Bearing	47701,47706
Flutes	2
C	1/8

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	C	Shank (d)	Overall Length (L)	Tool No.
7/8 (22.23mm)	3/16 (4.76mm)	3/8 (9.53mm)	3/16 (4.76mm)	1/4 (6.35mm)	2-3/8	54332

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
