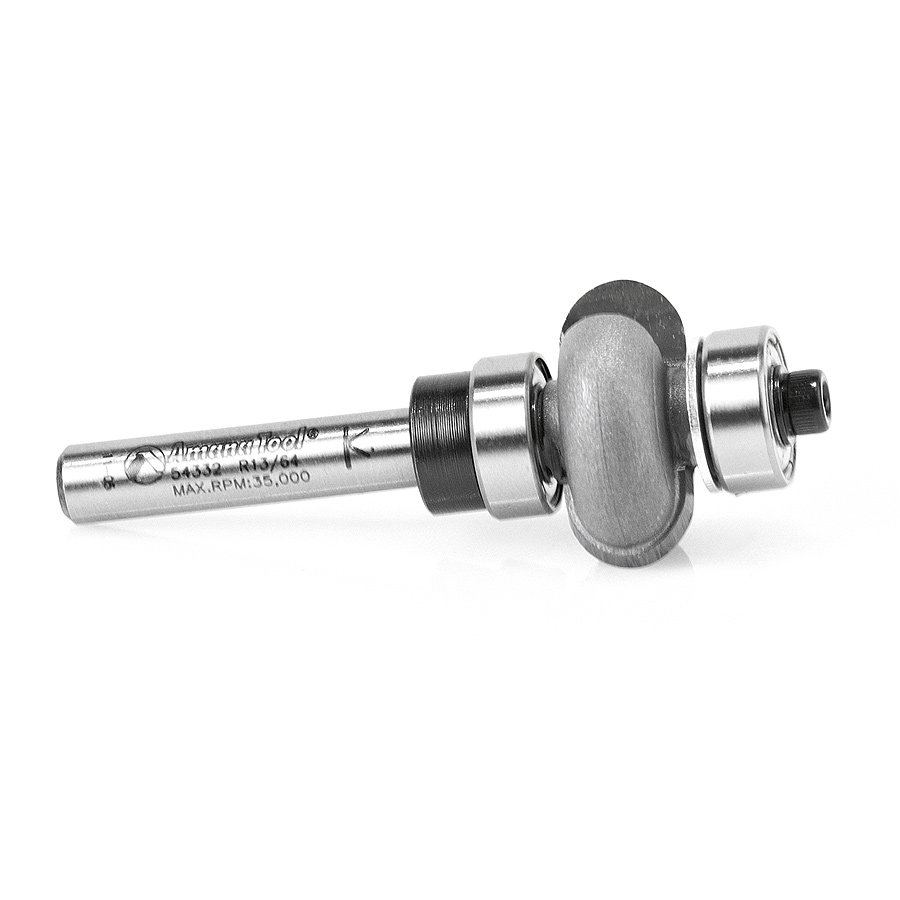

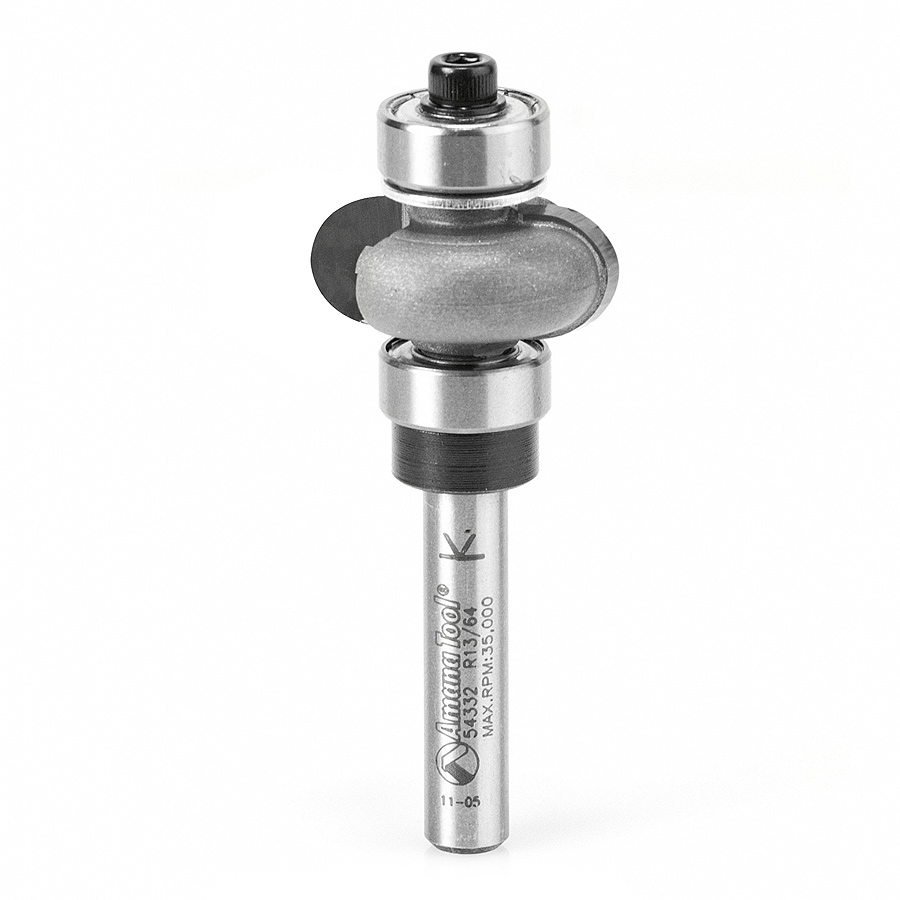

54332 Carbide Tipped Edge Fluting Assembly 3/16 Radius x 7/8 Dia x 3/8 x 1/4 Inch Shank

Amana 54332 Carbide Tipped Edge Fluting Assembly 3/16 Radius x 7/8 Dia x 3/8 x 1/4 Inch Shank

Name: Amana 54332 Carbide Tipped Edge Fluting Assembly 3/16 Radius x 7/8 Dia x 3/8 x 1/4 Inch Shank
SKU: Amana 54332
Availability: InStock

Original price was: $110.15.Current price is: $82.62.

FLUTE ASSEMBLY 13/64 RAD.1/4 S

UPC: 738685943328 SKU: Amana 54332 Categories: Amana Tool, Edge Fluting Router Bits, Profiling Router Bits, Router Bits

Item Description

Cut individual flutes – shallow, small-radius grooves – in narrow edges without having to balance a router on that edge. The bit cuts at right angles to the bit axis. Flute depth is controlled by the pilot bearing, the flute’s position by the router’s bit-height setting. Use in a handheld or table-mounted router.

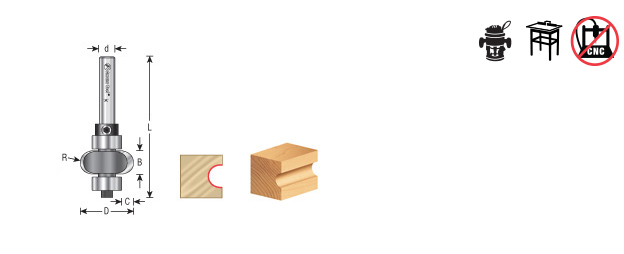

Specifications

Diameter (D)	7/8
Radius (R)	3/16
Cutting Height (B)	3/8
Shank (d)	1/4
Overall Length (L)	2-3/8
Replacement Collar	47724
Replacement Bearing	47701,47706
Flutes	2
C	3/16

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	C	Shank (d)	Overall Length (L)	Tool No.
3/4 (19.05mm)	1/8 (3.18mm)	1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	2-1/4	54330

Weight	0.1 lbs
