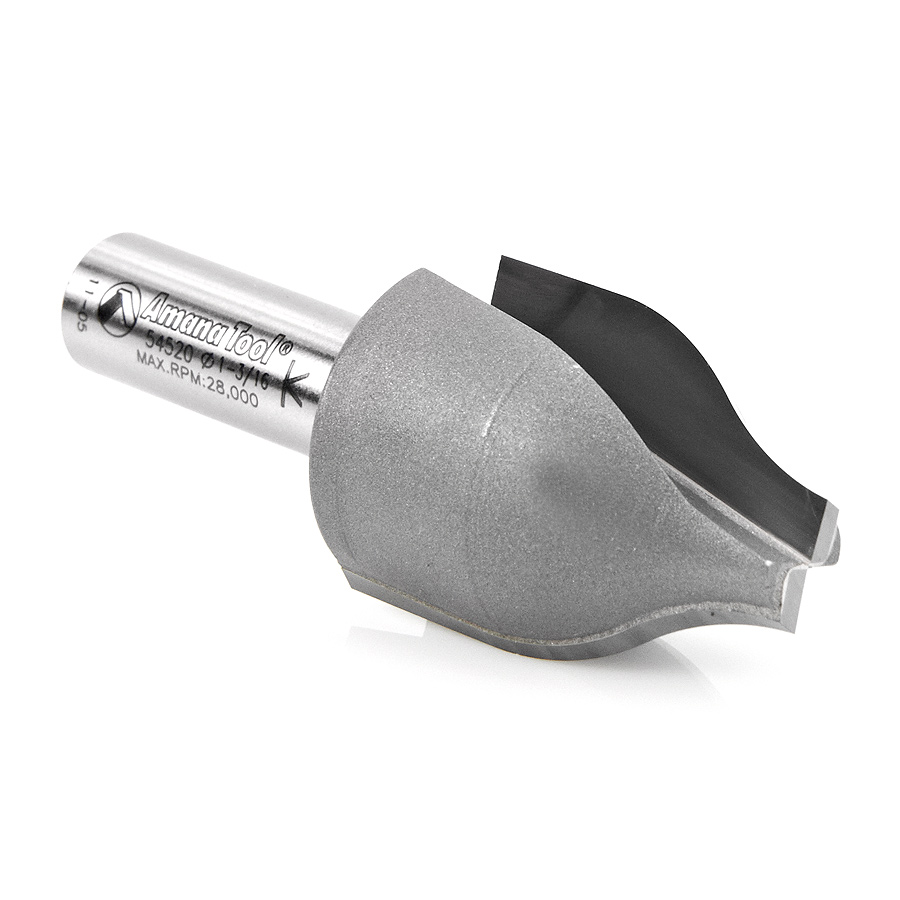

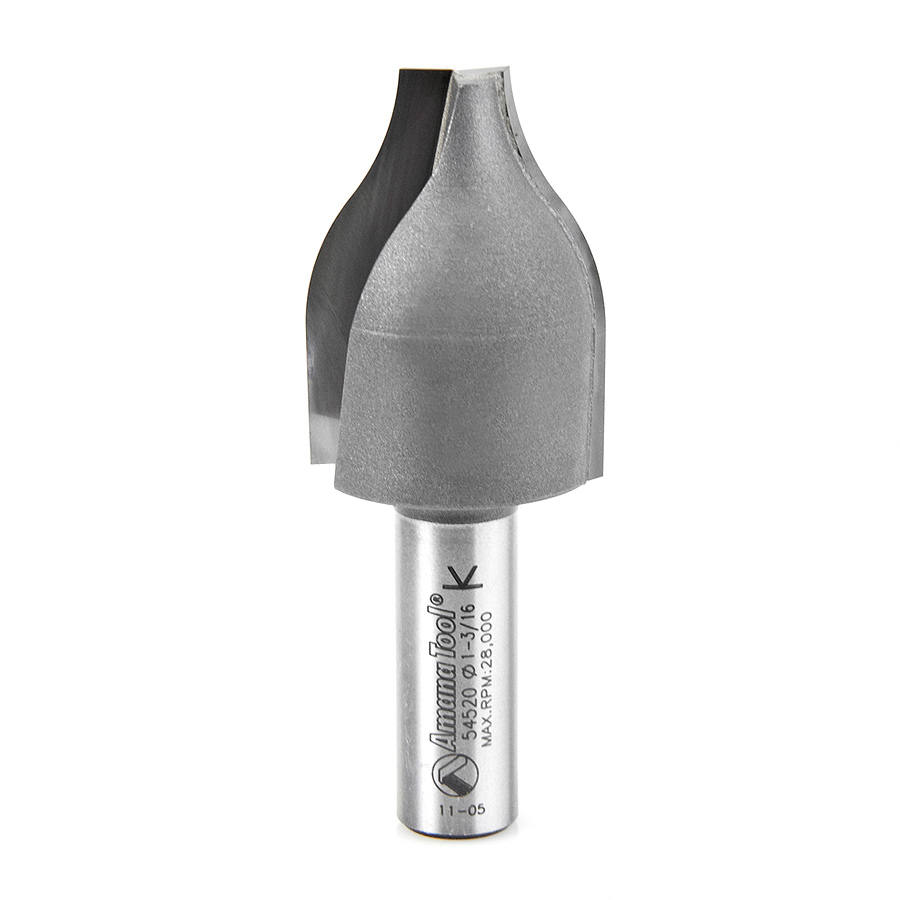

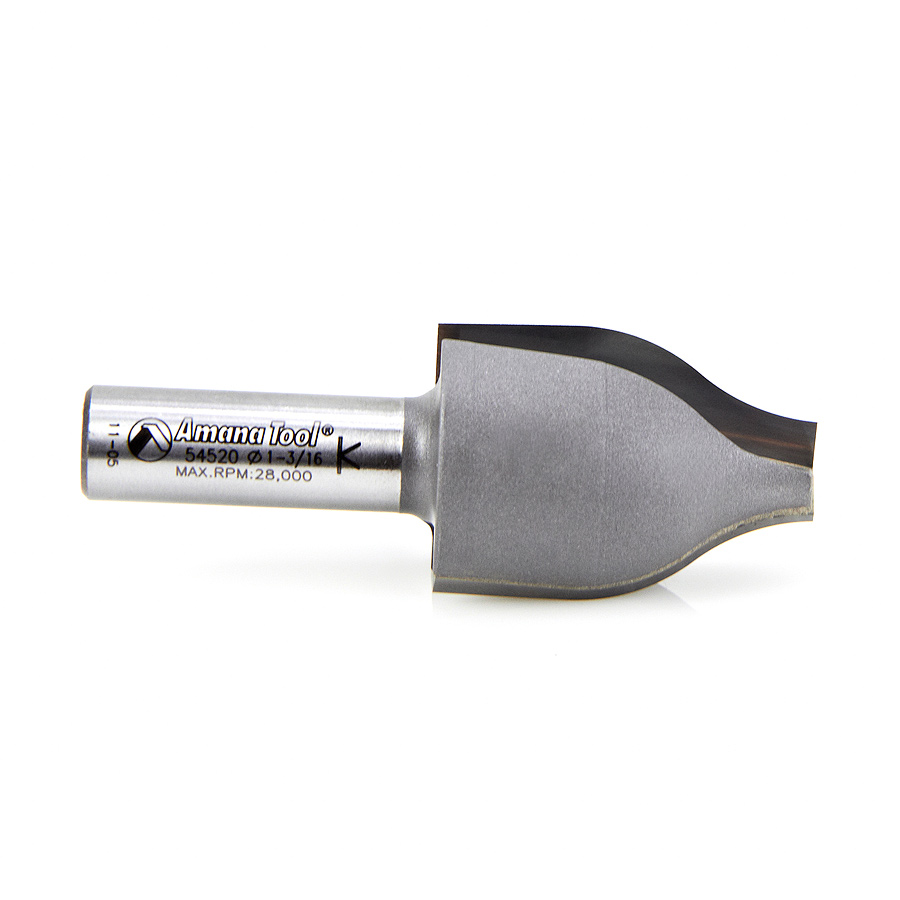

54520 Carbide Tipped Ogee Vertical Raised Panel 7/8 Radius x 1-3/16 Dia x 1-5/8 x 1/2 Inch Shank

Amana 54520 Carbide Tipped Ogee Vertical Raised Panel 7/8 Radius x 1-3/16 Dia x 1-5/8 x 1/2 Inch Shank

Name: Amana 54520 Carbide Tipped Ogee Vertical Raised Panel 7/8 Radius x 1-3/16 Dia x 1-5/8 x 1/2 Inch Shank
SKU: Amana 54520
Availability: InStock

Original price was: $92.20.Current price is: $69.15.

OGEE VERTICAL RAISED PANEL BIT

UPC: 738685545201 SKU: Amana 54520 Categories: Amana Tool, Door Making Router Bits, Router Bits, Vertical Raised Panel Router Bits

Item Description

Raised panels with a low-horsepower, fixed speed router using these VERTICAL raised panel bits. You must do the work on a router table, with the work on edge, braced against the fence. Arched or curved shapes (i.e.: “cathedral” door panels) cannot be routed. To prolong tool life and get the best cut finish, several passes are recommended.

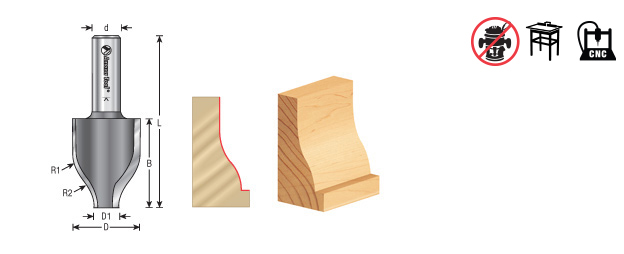

Specifications

Diameter (D)	1-3/16
D1	7/16
Cutting Height (B)	1-5/8
Shank (d)	1/2
Overall Length (L)	3-1/8
Type	Ogee
R2	23/32
R1	7/8
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	R1	R2	R3	Shank (d)	Overall Length (L)	Type	Tool No.
15°	1-1/8	19/32 (15.08mm)	1-5/8	–	–	–	1/2 (12.70mm)	3-1/8	Traditional	54532
–	1-1/8	9/32 (7.14mm)	1-5/8	1-9/16	–	–	1/2 (12.70mm)	3-1/8	Cove	54524
–	1-3/16	3/16 (4.76mm)	1-5/8	7/8 (22.23mm)	23/32 (18.26mm)	1/8 (3.18mm)	1/2 (12.70mm)	3-1/8	Ogee with Bead	54528

Weight	0.36 lbs
