Sale!

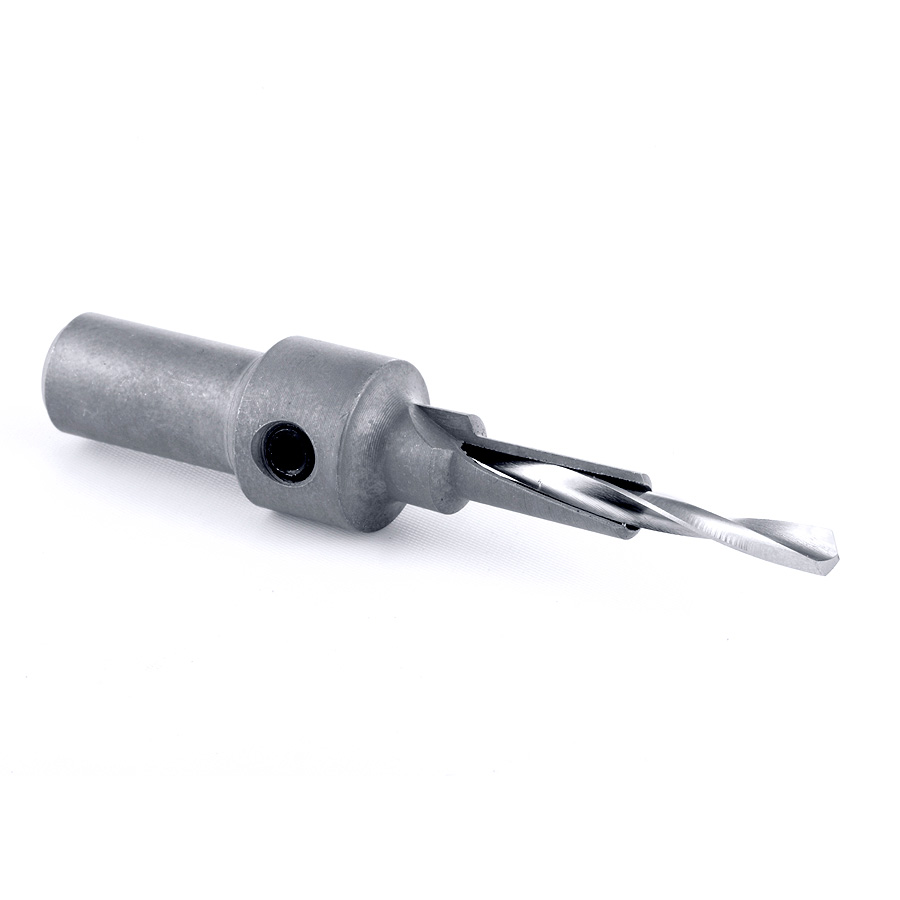

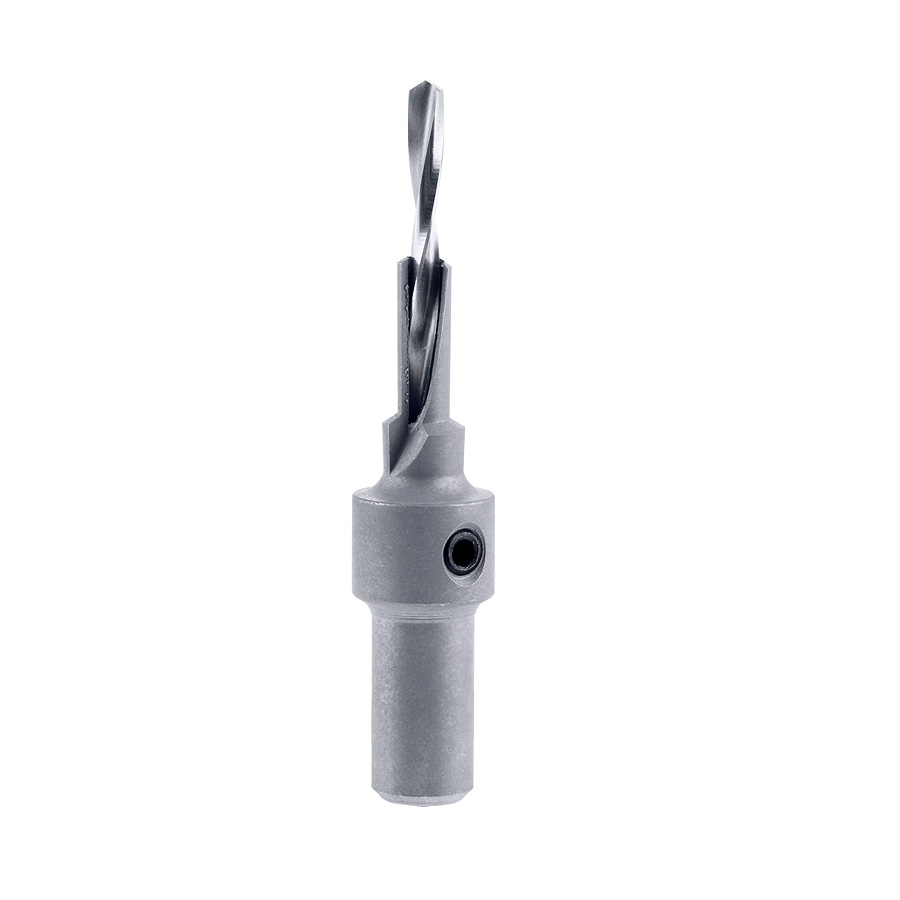

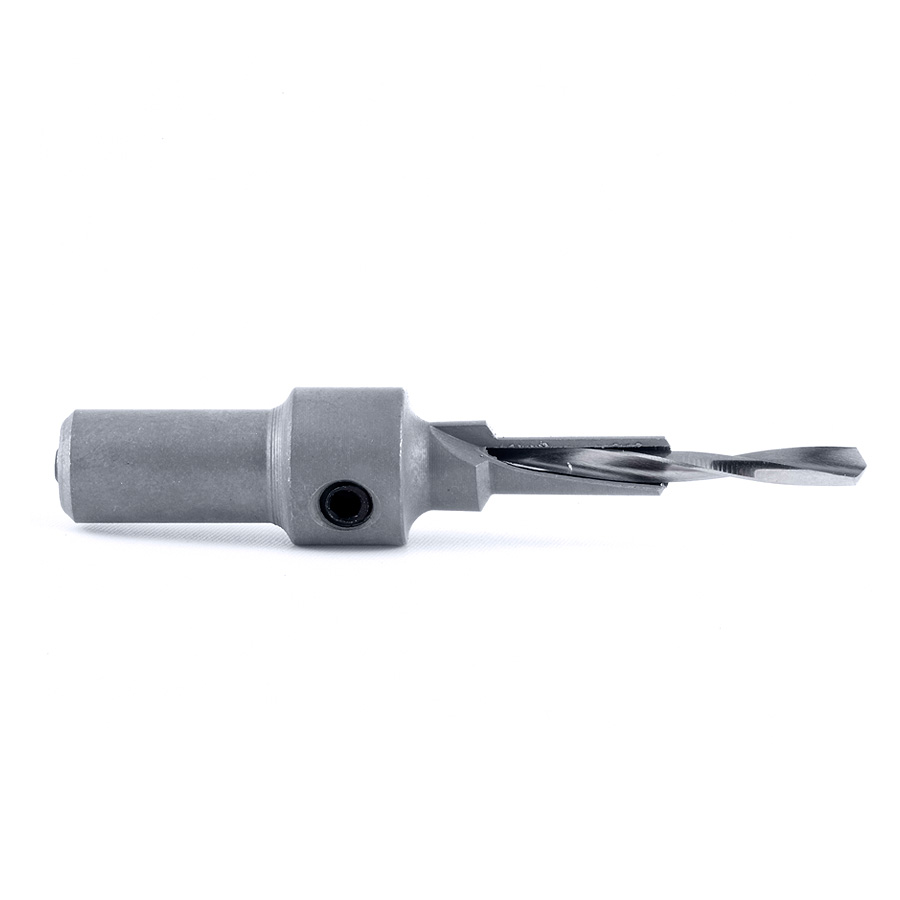

55102 RTA Furniture Drill/Countersink 7mm Dia x 3.5mm Drill Dia x 10mm Shank - 5mm Screw with Drill

Amana 55102 RTA Furniture Drill/Countersink 7mm Dia x 3.5mm Drill Dia x 10mm Shank – 5mm Screw with Drill

Name: Amana 55102 RTA Furniture Drill/Countersink 7mm Dia x 3.5mm Drill Dia x 10mm Shank - 5mm Screw with Drill
SKU: Amana 55102
Availability: InStock

Original price was: $41.35.Current price is: $31.02.

COUNTERSINK 5MM SCREW W/DRILL.

UPC: 738685955123 SKU: Amana 55102 Categories: Amana Tool, Boring & Drilling Bits, Countersink Bits, High-Speed Steel Countersinks Bits

Item Description

Commonly used for RTA (ready-to-assemble) furniture fittings. Specially-treated high-speed steel countersink with polished slow-spiral drill bit. Will perform 3 tasks in one: pilot hole, clearance hole and countersink. For connecting screws (Confirmat, Directa, etc.). The shankless countersink is heat treated.

Replacement Parts

Tool No.	Set Screw	Hex key	Drill Bit
55102	67092	5000	55104

Specifications

(D) Diameter	3.5mm
(B) Cutting Height	15mm
(d) Shank	10mm
Overall Length (L)	80mm
B1	5mm
D1	(5mm)
D2	(7mm)
L1	33mm

Other Sizes Available

(D) Diameter	D1	D2	(B) Cutting Height	B1	(d) Shank	L1	Overall Length (L)	Tool No.
5mm	(7mm)0.28	(10mm)0.39	15mm	5mm	10mm	32mm	90mm	55103

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
