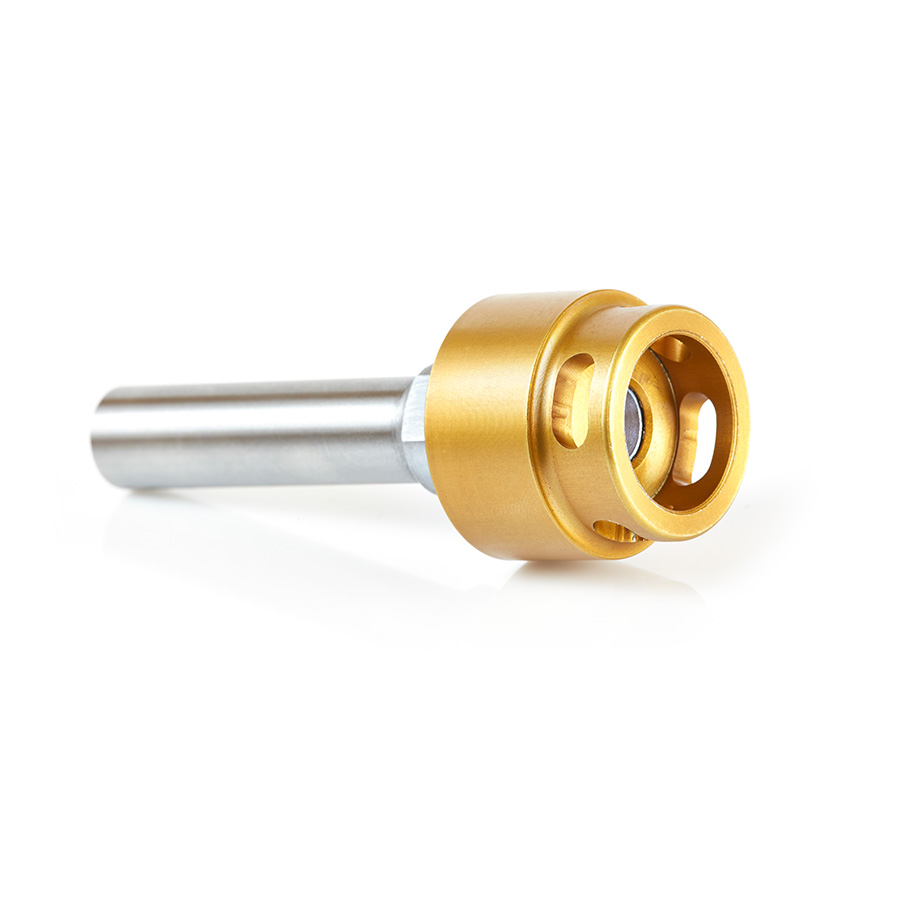

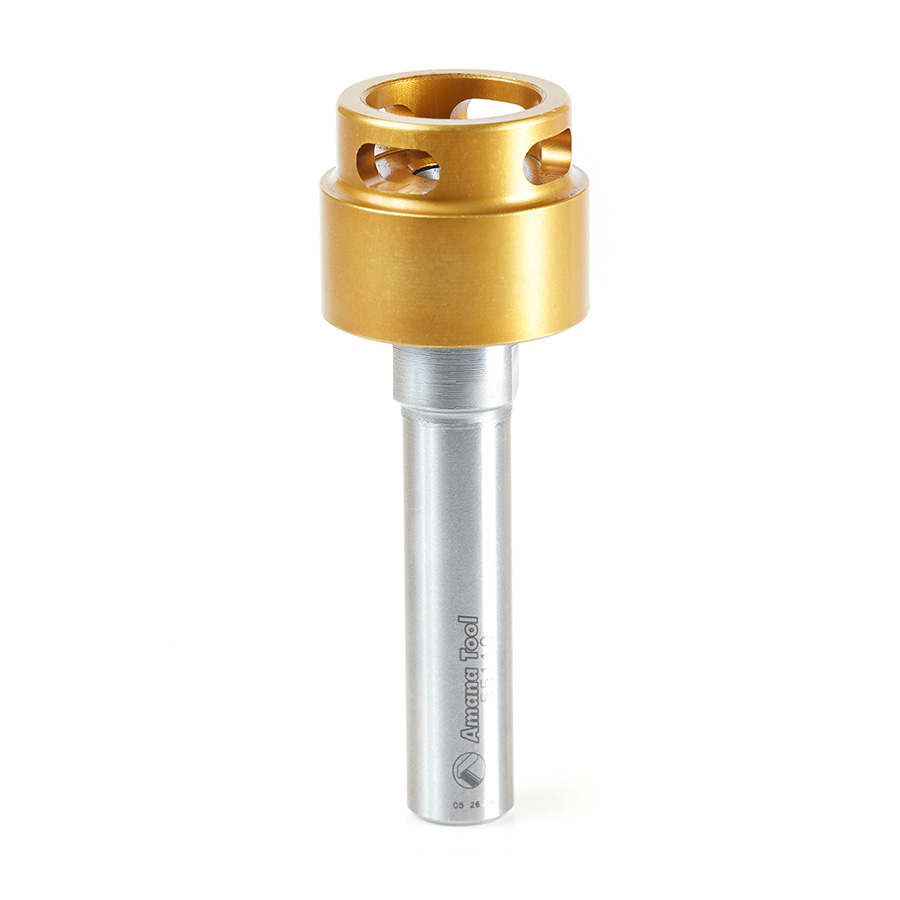

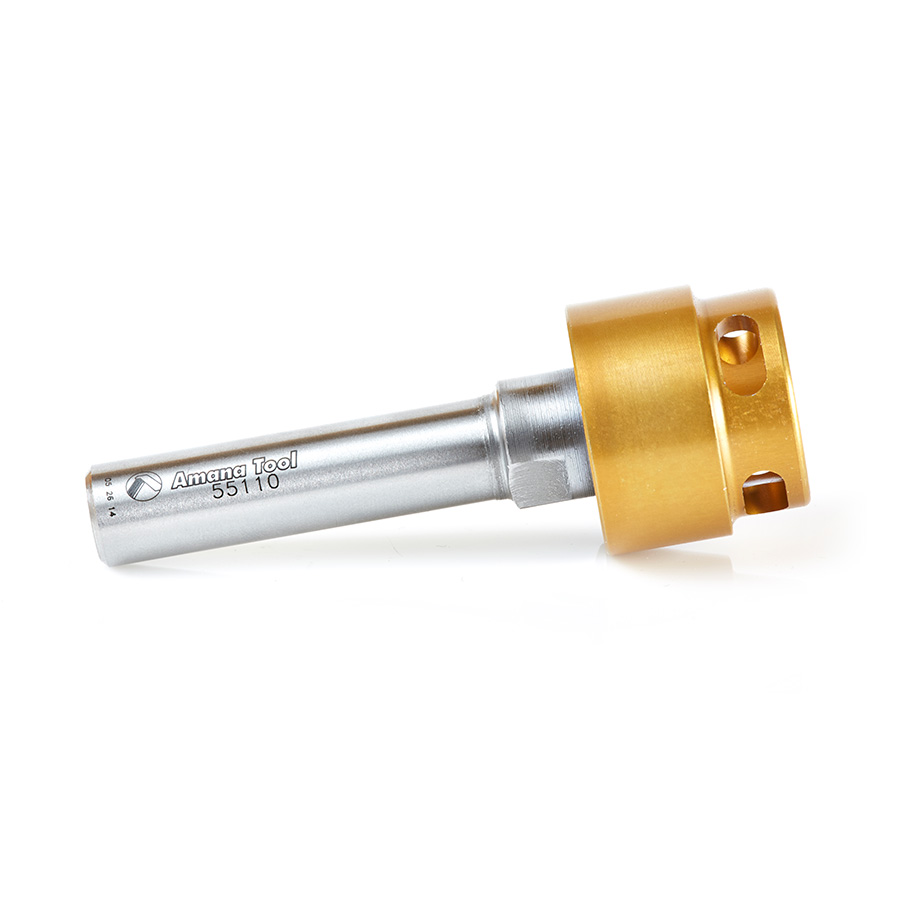

55110 3D Adapter 1-1/16 Dia x 1 x 1/2 Inch Shank

Amana 55110 3D Adapter 1-1/16 Dia x 1 x 1/2 Inch Shank

Name: Amana 55110 3D Adapter 1-1/16 Dia x 1 x 1/2 Inch Shank
SKU: Amana 55110
Availability: InStock

Original price was: $138.00.Current price is: $103.50.

3D ADAPTER

UPC: 738685105511 SKU: Amana 55110 Categories: Amana Tool, Corner Round Router Bits, Profiling Router Bits, Router Bits

Item Description

This 3D adapter is a versatile device used for making compound curves by inserting the adapter over any 1/4″ shank router bit. By making it as an adapter and not a solid tool, the system becomes much more flexible as well as cost effective.

Insert adapter over any tool with 1/4″ shank up to the maximum diameter of the adapter. For example, tool no. 55110 will fit all tools with up to a 3/4″ cutting diameter. The cutting length is adjustable and is limitless to shapes and tools this adapter may be used for.

This adapter was made with 1/2″ shank and it can be used in routers with a recommended maximum RPM of 18,000.

This 3D system may be useful especially for small objects, artistic works and other delicate projects. Hence, it could be a complementary system for the Amana miniature router bits with a 3/16″ diameter ball bearing.

Additionally, this tool can also be used for small jobs with a drill machine (when one doesn’t have a router). In this case, the outer ring, which revolves against the tool, serves as a small “router table”. For this application, Amana recommends a minimum of 3,000 RPM.

Tool comes with 2 Allen Keys.

5009 – 1/8” Allen Key for the screw on the side.

5003 – 5/32” Allen Key

Use to set screw M8″ inside the shank of the tool.

This screw makes it easier to adjust the length accurately and safely.

You need an Allen key – 5/32″ (Amana #5003) to adjust the required length of the shank. Only then, you can tighten the set screw that holds the tool from the side.

This adapter can be used with Amana Tool® #’s 49492, 49496, MR0101, MR0100, MR0105, MR0102, MR0103, MR0104, MR1010, MR1004, MR0106, MR0107, MR0108, MRR108, MR0110, MR0112, MR0114, MRR110 and MR1020.

Replacement Parts

Included 1/8" Allen Key for Side Screw	Included 5/32" Allen Key for Shank Screw M8
5009	5003

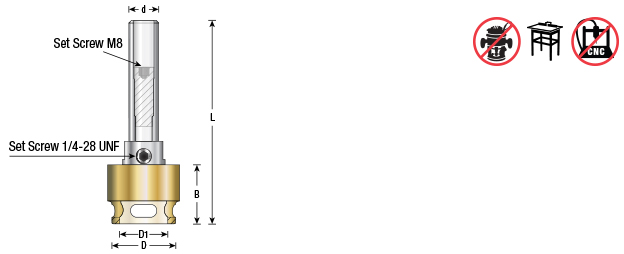

Specifications

Diameter (D)	1-1/16
D1	25/32
Cutting Height (B)	1
Shank (d)	1/2
Overall Length (L)	3-13/32

Weight	0.26 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
