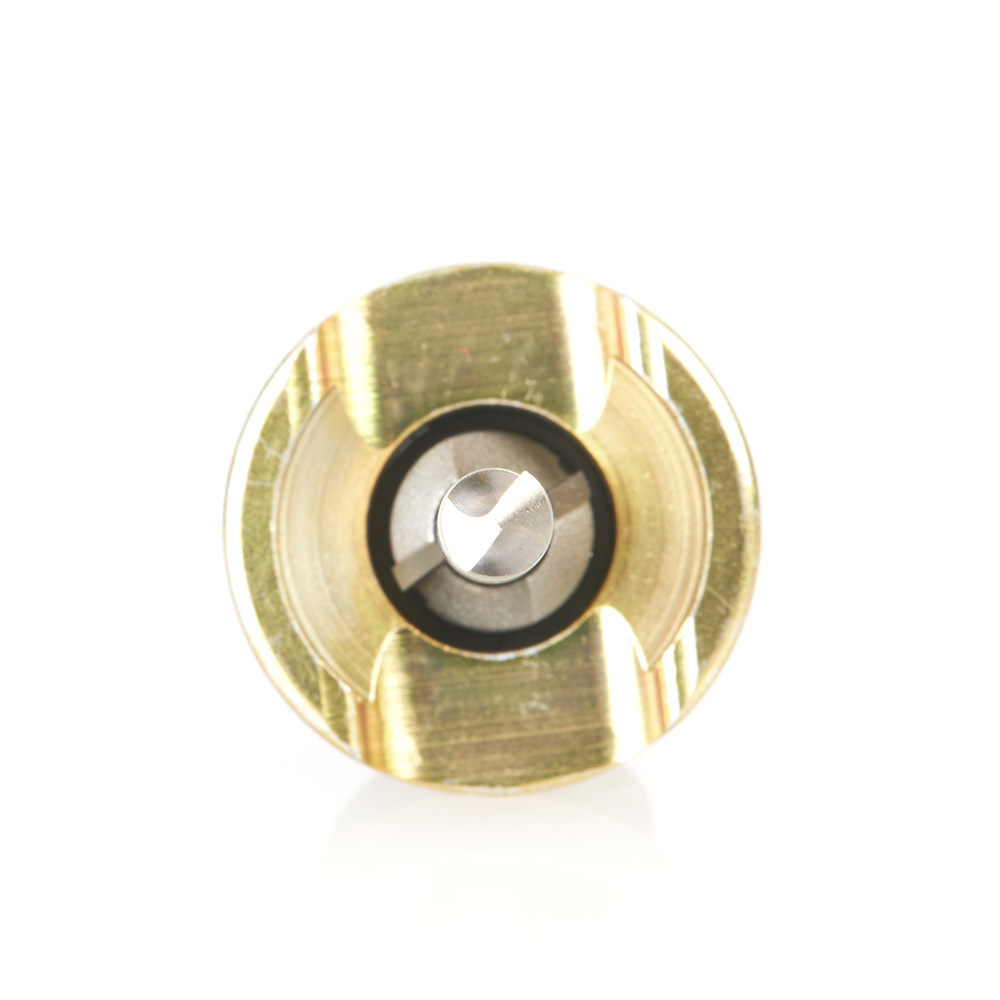

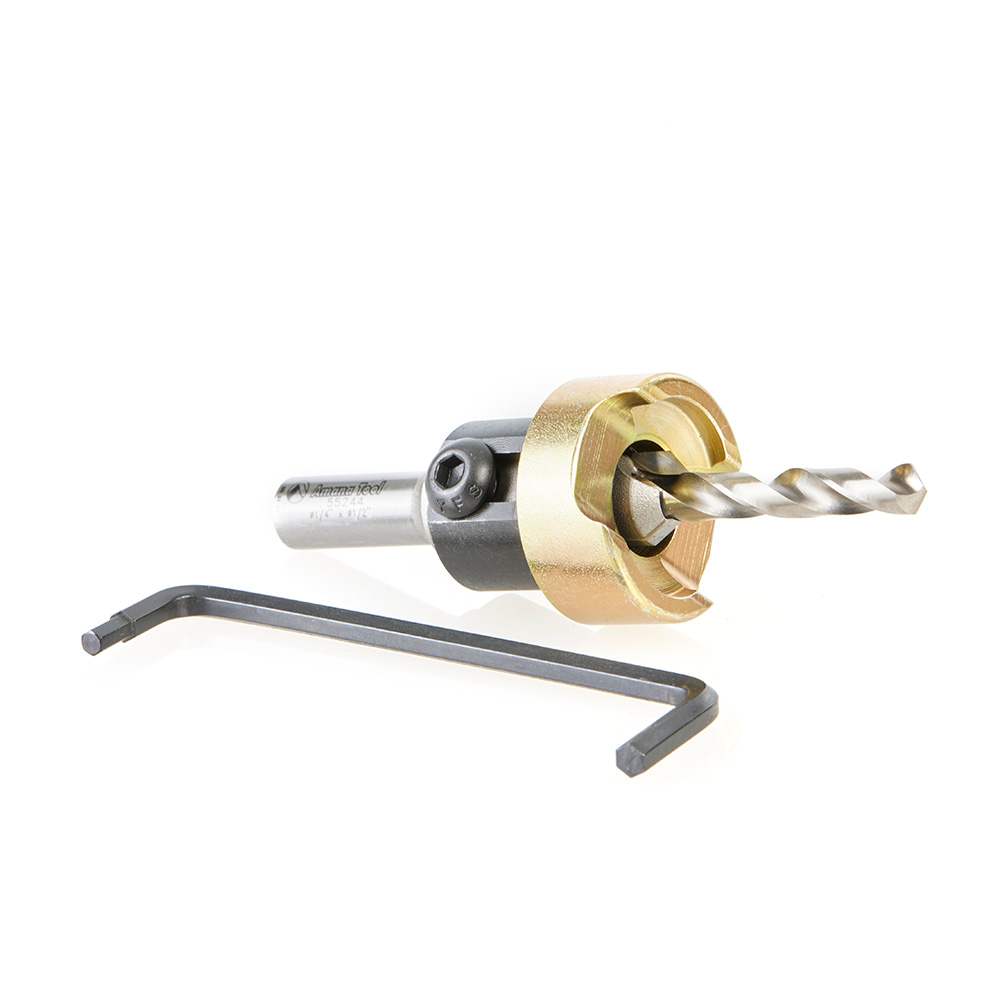

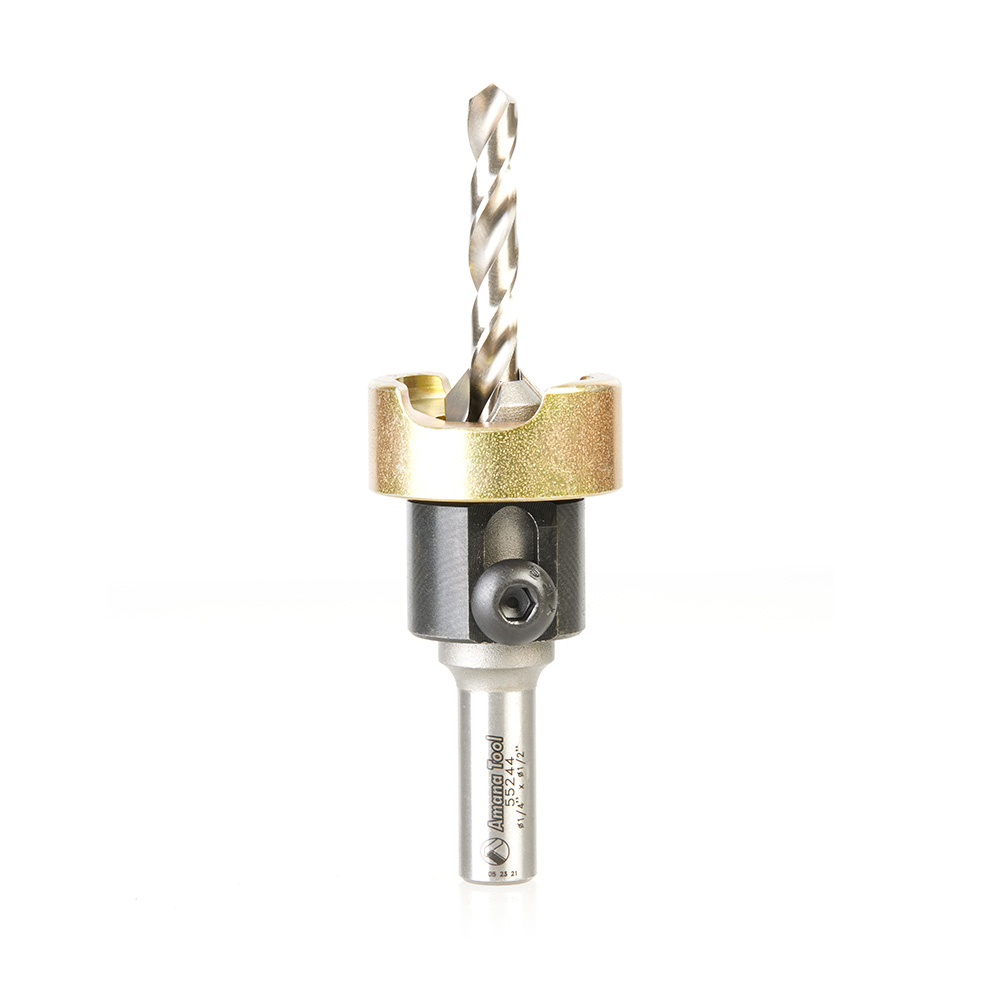

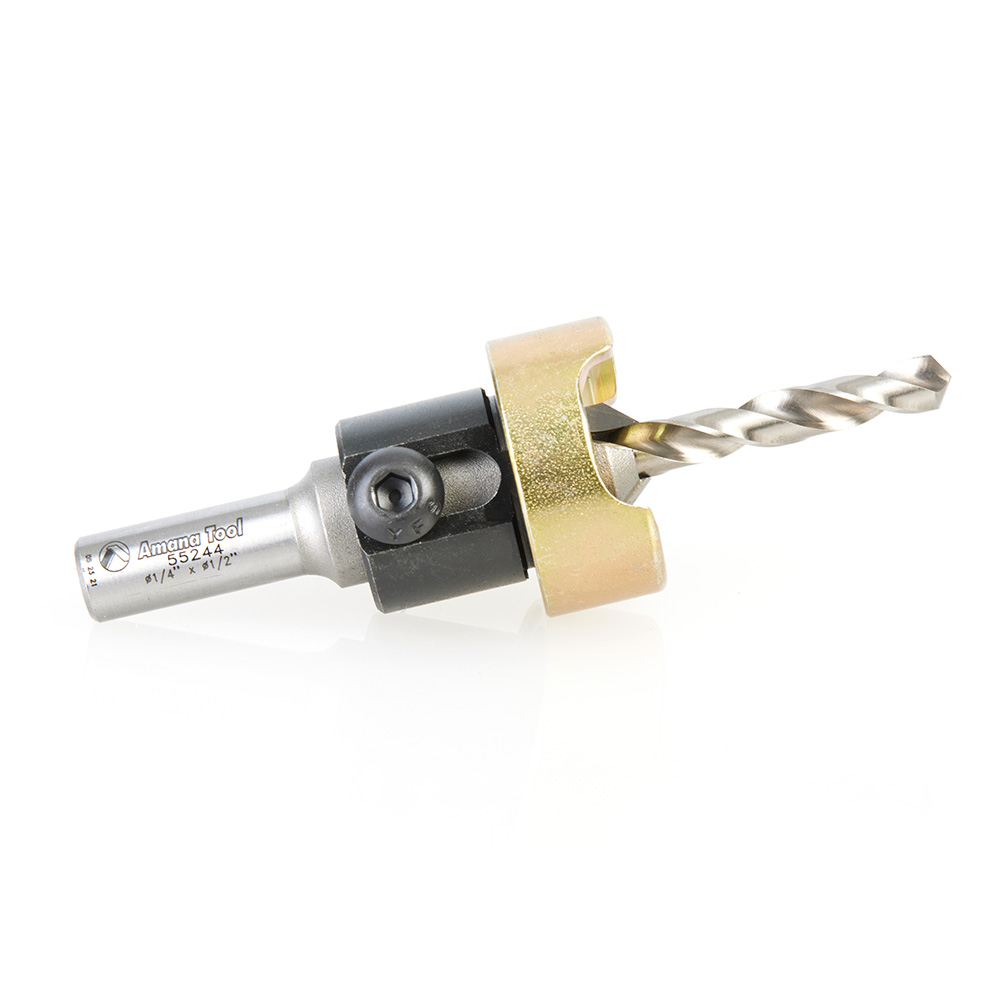

55244 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, 1/2 Dia x 1/4 Drill Dia x 10mm Round Shank for Wood Screw #14

Amana 55244 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, 1/2 Dia x 1/4 Drill Dia x 10mm Round Shank for Wood Screw #14

Name: Amana 55244 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, 1/2 Dia x 1/4 Drill Dia x 10mm Round Shank for Wood Screw #14
SKU: Amana 55244
Availability: InStock

Original price was: $79.75.Current price is: $59.82.

COUNTERSINK/STOP 1/4″ DRILL

UPC: 738685152447 SKU: Amana 55244 Categories: Amana Tool, Boring & Drilling Bits, Carbide Tipped Countersinks Bits, Countersink Bits

Item Description

A must have tool for every woodworker!

_Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit)._

Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.

It also has an open space to allow for chip evacuation.

The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.

Enables users to drill a pilot hole and tapered countersink in one step.

The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.

A must have tool for every woodworker
2-Wing
Quick release 10mm round shank
Slow spiral, HSS M2 fully ground drill bit included

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous*****
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling. Disconnect from any vacuum system. Using Low RPM is recommended.

For hardwoods, or when screws are close to the end grain, using a larger screw size is recommended.

Replacement Parts

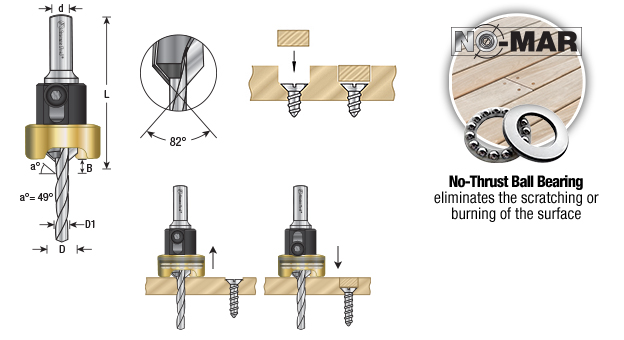

Specifications

(a°) Angle	49°
(D) Diameter	1/2
(B) Cutting Height	3/64-3/8
(d) Shank	10mm
Overall Length (L)	2-9/16
Drill Din	338
Wood Screw Size	#14
D1	1/4
Replacement Countersink	57274
Replacement HSS M2 Drill (Included)	630-702

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(B) Cutting Height	(a°) Angle	(d) Shank	Overall Length (L)	Drill Din	Use with Plug Cutter (Optional)	Replacement Drill	Replacement Countersink	Tool No.
#6#6#6#6	3/8 (9.53mm)	3/32 (2.38mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	338 (8585.22mm)	55220	630-222	55271	55225
#4#4#4#4	3/8 (9.53mm)	5/64 (1.98mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	1897	55220	630-220	57270	55226
#6#6#6#6	3/8 (9.53mm)	1/8 (3.18mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	1897	55220	630-226	55272	55227
#12#12#12#12	3/8 (9.53mm)	9/64 (3.57mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	1897	55220	630-228	55273	55228
12-14, 1214	3/8 (9.53mm)	5/32 (3.97mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	1897	55220	630-230	55274	55229
#8#8#8#8	3/8 (9.53mm)	7/64 (2.78mm)	3/64-3/8	49°	1/4 (6.35mm)	2-5/8	338 (8585.22mm)	55220	630-224	57272	55241
14-16, 1416	1/2 (12.70mm)	11/64 (4.37mm)	3/64-3/8	49°	1/4 (6.35mm)	2-3/4	1897	55222	630-234	55275	55240
#16#16#16#16	1/2 (12.70mm)	3/16 (4.76mm)	3/64-3/8	49°	1/4 (6.35mm)	2-3/4	1897	55222	630-236	55276	55242

Weight	0.32 lbs
