Item Description
A must have tool for every woodworker!
_Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit)._

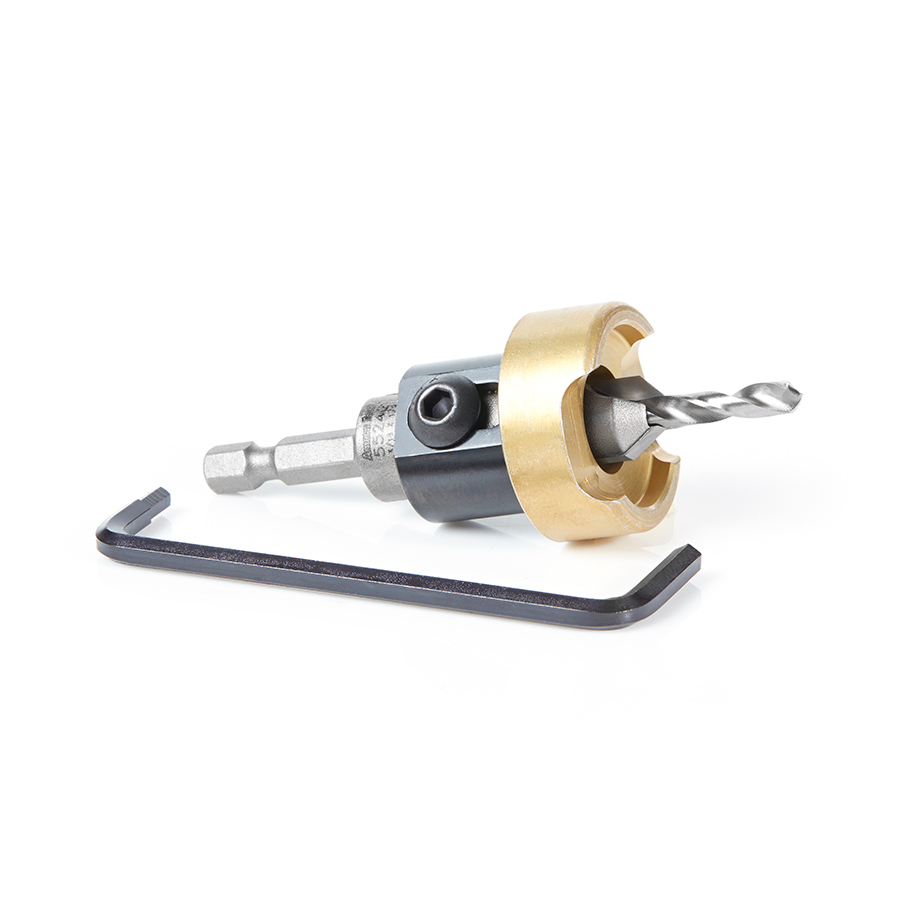

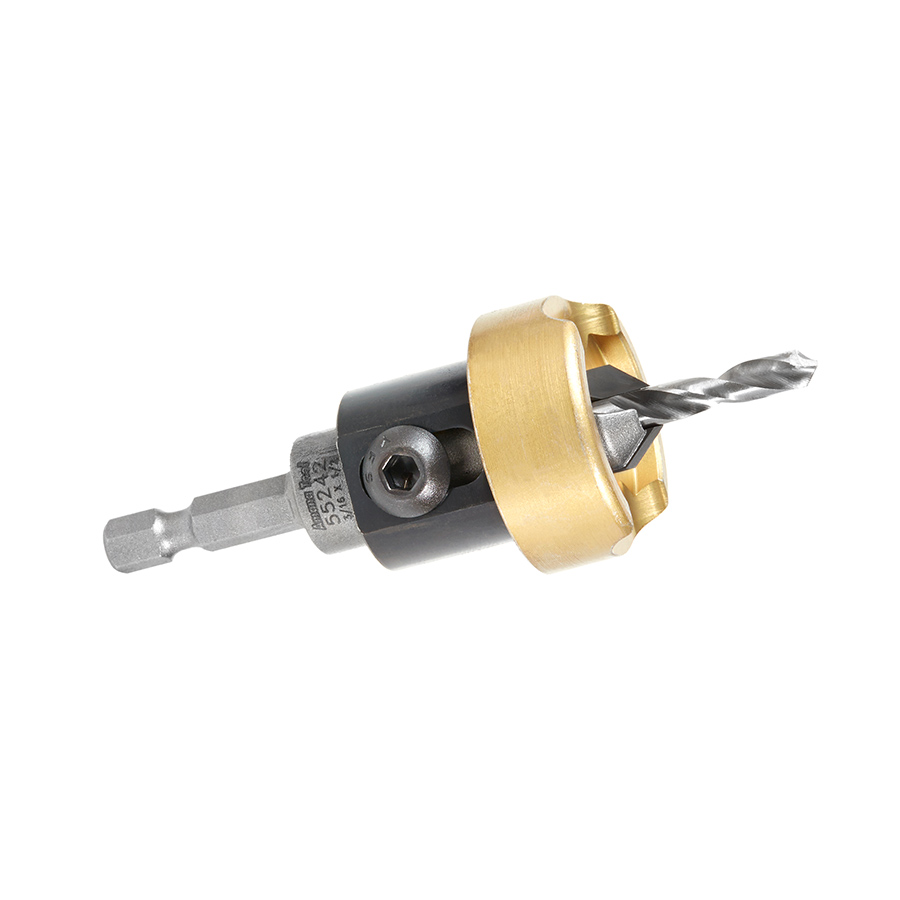

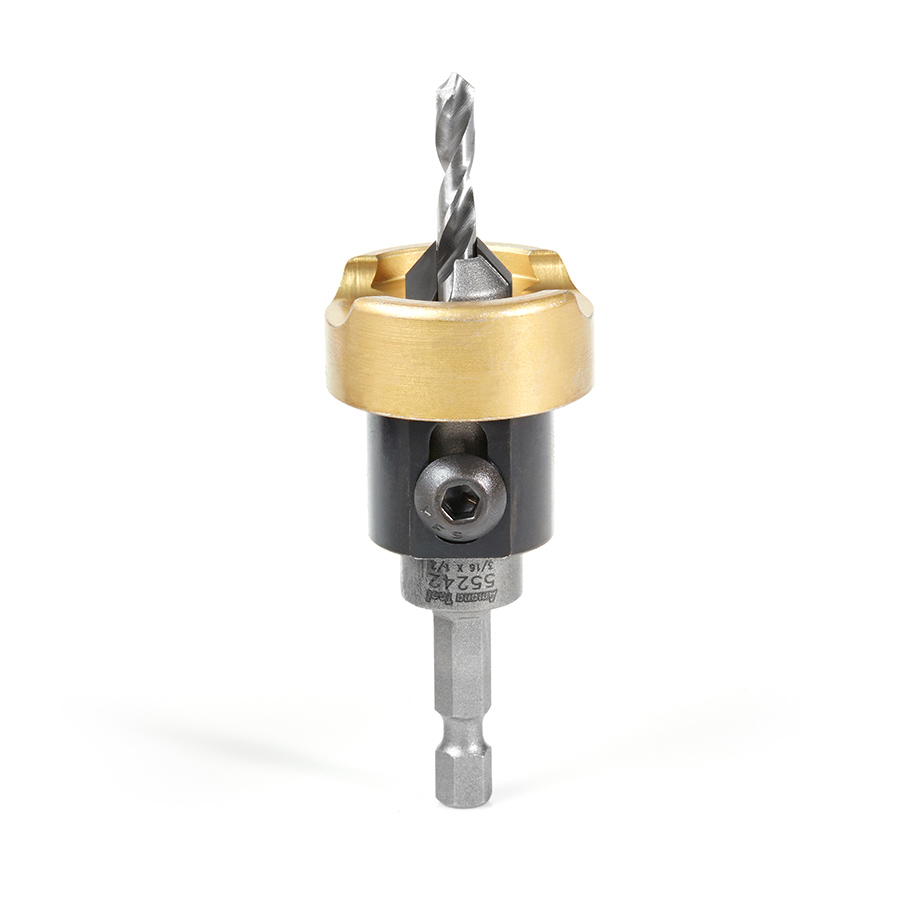

Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.
It also has an open space to allow for chip evacuation.
The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.
Enables users to drill a pilot hole and tapered countersink in one step.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
- A must have tool for every woodworker
- 2-Wing
- Quick release 1/4″ hex shank
- Slow spiral, HSS M2 fully ground drill bit included
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous*****
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
- High Density Polyethylene (HDPE)
- Acrylic
Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling. Disconnect from any vacuum system. Using Low RPM is recommended.
For hardwoods, or when screws are close to the end grain, using a larger screw size is recommended.
Replacement Parts
| Replacement Countersink | Replacement Drill (Included) | NF1/4 x 1/4 Set Screw for Tightening Depth Stop | NF1/4-28 x 3/16 Set Screw for Drill Tightening | 1/8 x 5/32 Double-Sided Hex Key (Included) |
|---|---|---|---|---|
| 55276 | 630-236 | 67070 | 67083 | 5019 |
Specifications
| (a°) Angle | 49° |
|---|---|
| (D) Diameter | 1/2 |
| (B) Cutting Height | 3/64-3/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-3/4 |
| Drill Din | 1897 |
| Wood Screw Size | #16 |
| D1 | 3/16 |
| Replacement Drill | 630-236 |
| Replacement Countersink | 55276 |
| Use with Plug Cutter (Optional) | 55222 |
Other Sizes Available
| Wood Screw Size | (D) Diameter | D1 | (B) Cutting Height | (a°) Angle | (d) Shank | Overall Length (L) | Drill Din | Use with Plug Cutter (Optional) | Replacement Drill | Replacement Countersink | Tool No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| #6#6#6#6 | 3/8 (9.53mm) | 3/32 (2.38mm) | 3/64-3/8 | 49° | 1/4 (6.35mm) | 2-5/8 | 338 (8585.22mm) | 55220 | 630-222 | 55271 | 55225 |
| #4#4#4#4 | 3/8 (9.53mm) | 5/64 (1.98mm) | 3/64-3/8 | 49° | 1/4 (6.35mm) | 2-5/8 | 1897 | 55220 | 630-220 | 57270 | 55226 |
| #6#6#6#6 | 3/8 (9.53mm) | 1/8 (3.18mm) | 3/64-3/8 | 49° | 1/4 (6.35mm) | 2-5/8 | 1897 | 55220 | 630-226 | 55272 | 55227 |
| #12#12#12#12 | 3/8 (9.53mm) | 9/64 (3.57mm) | 3/64-3/8 | 49° | 1/4 (6.35mm) | 2-5/8 | 1897 | 55220 | 630-228 | 55273 | 55228 |
| 12-14, 1214 | 3/8 (9.53mm) | 5/32 (3.97mm) | 3/64-3/8 | 49° | 1/4 (6.35mm) | 2-5/8 | 1897 | 55220 | 630-230 | 55274 | 55229 |
| #8#8#8#8 | 3/8 (9.53mm) | 7/64 (2.78mm) | 3/64-3/8 | 49° | 1/4 (6.35mm) | 2-5/8 | 338 (8585.22mm) | 55220 | 630-224 | 57272 | 55241 |
| 14-16, 1416 | 1/2 (12.70mm) | 11/64 (4.37mm) | 3/64-3/8 | 49° | 1/4 (6.35mm) | 2-3/4 | 1897 | 55222 | 630-234 | 55275 | 55240 |
| #14#14#14#14 | 1/2 (12.70mm) | 1/4 (6.35mm) | 3/64-3/8 | 49° | 10mm | 2-9/16 | 338 (8585.22mm) | – | – | 57274 | 55244 |
| Weight | 0.3 lbs |
|---|
