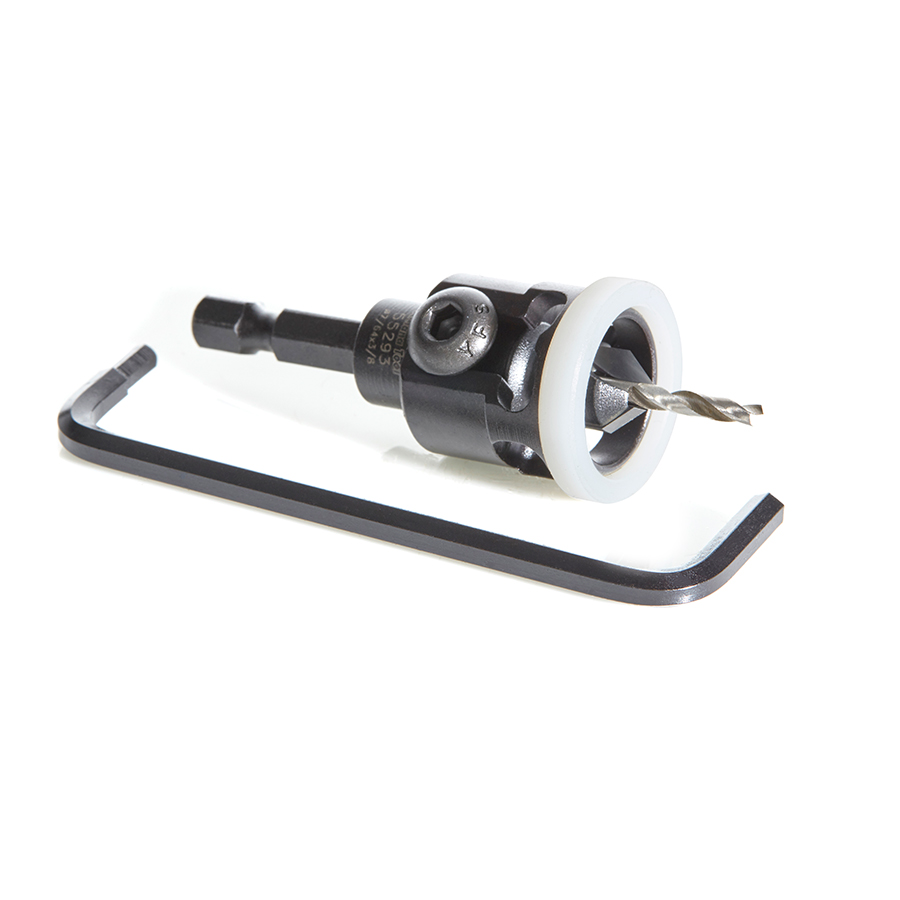

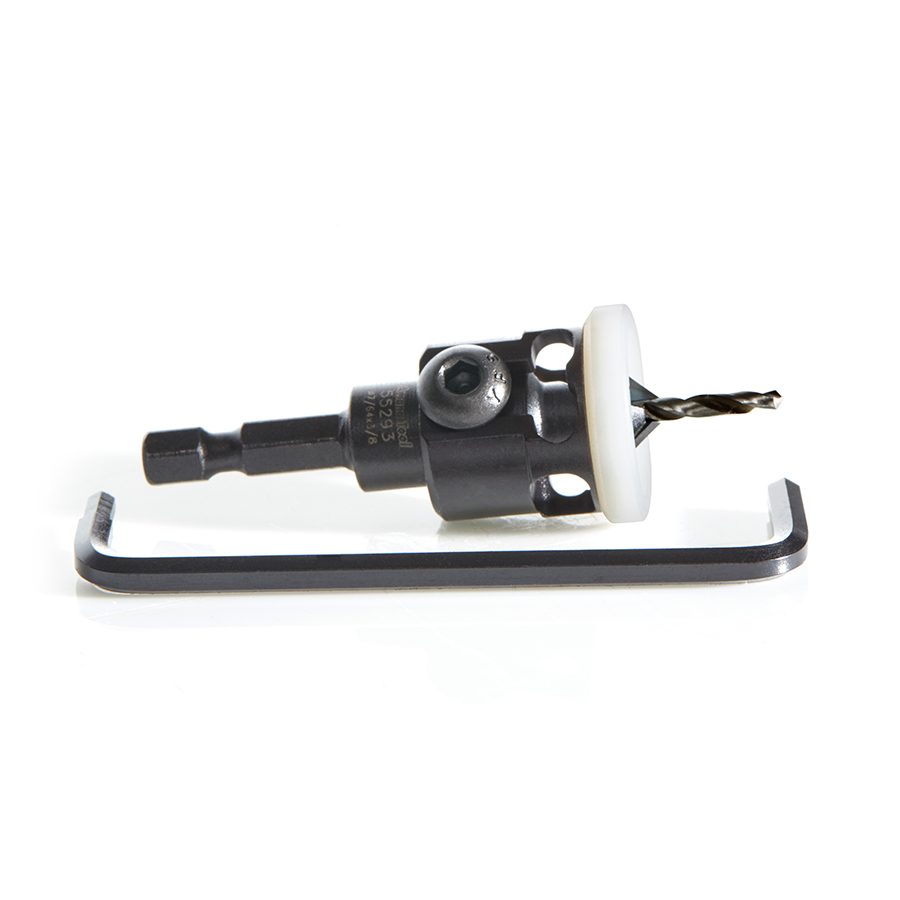

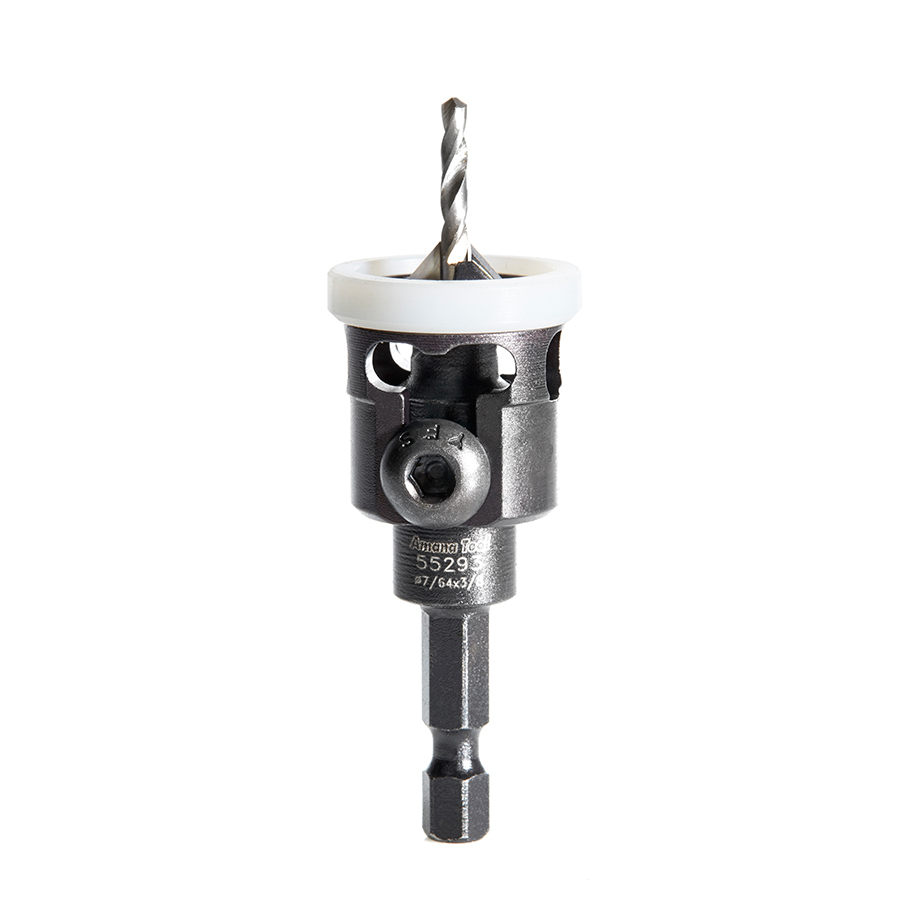

55293 Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, 3/8 Dia x 7/64 Drill Dia x 1/4 Inch Quick Release Hex Shank for Wood Screw #8

Amana 55293 Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, 3/8 Dia x 7/64 Drill Dia x 1/4 Inch Quick Release Hex Shank for Wood Screw #8

Original price was: $49.95.Current price is: $37.47.

LOW FRICTION COUNTERSINK 7/64″

UPC: N/A SKU: Amana 55293 Categories: Amana Tool, Boring & Drilling Bits, Carbide Tipped Countersinks Bits, Countersink Bits

Item Description

A must have tool for every woodworker!

_Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit)._

Low friction polymer collar. No surface scratches or burn marks!

These tools combine carbide countersink, high-speed-steel drill bit and free-spinning, low friction depth-stop. The countersink leaves a clean hole edge and the adjustable depth-stop doesn’t mar the surface. The large openings around the collar allow the chips to clear effectively and eliminate clogging.

Quick release 1/4″ hex shank with slow spiral, HSS M2 fully ground drill bit included.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous*****
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling. Disconnect from any vacuum system. Using Low RPM is recommended.

For hardwoods, or when screws are close to the end grain, using a larger screw size is recommended.

Replacement Parts

Replacement Drill (Included)	NF1/4 x 1/4 Set Screw for Tightening Depth Stop	NF1/4-28 x 3/16 Set Screw for Drill Tightening	1/8 x 5/32 Double-Sided Hex Key (Included)
630-224	67070	67083	5019

Specifications

(a°) Angle	49°
(D) Diameter	3/8
(B) Cutting Height	5/64-11/32
(d) Shank	1/4
Overall Length (L)	2-3/8
Drill Din	1897
Wood Screw Size	#8
D1	7/64
Replacement Drill	630-224

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(B) Cutting Height	(a°) Angle	(d) Shank	Overall Length (L)	Replacement Drill	Tool No.
#10#10#10#10	3/8 (9.53mm)	1/8 (3.18mm)	5/64-11/32	49°	1/4 (6.35mm)	2-3/8	630-226	55294
12-14, 1214	3/8 (9.53mm)	5/32 (3.97mm)	5/64-11/32	49°	1/4 (6.35mm)	2-3/8	630-230	55296
#12#12#12#12	1/2 (12.70mm)	9/64 (3.57mm)	5/64-11/32	49°	1/4 (6.35mm)	2-3/8	630-228	55295

Weight	0.2 lbs
