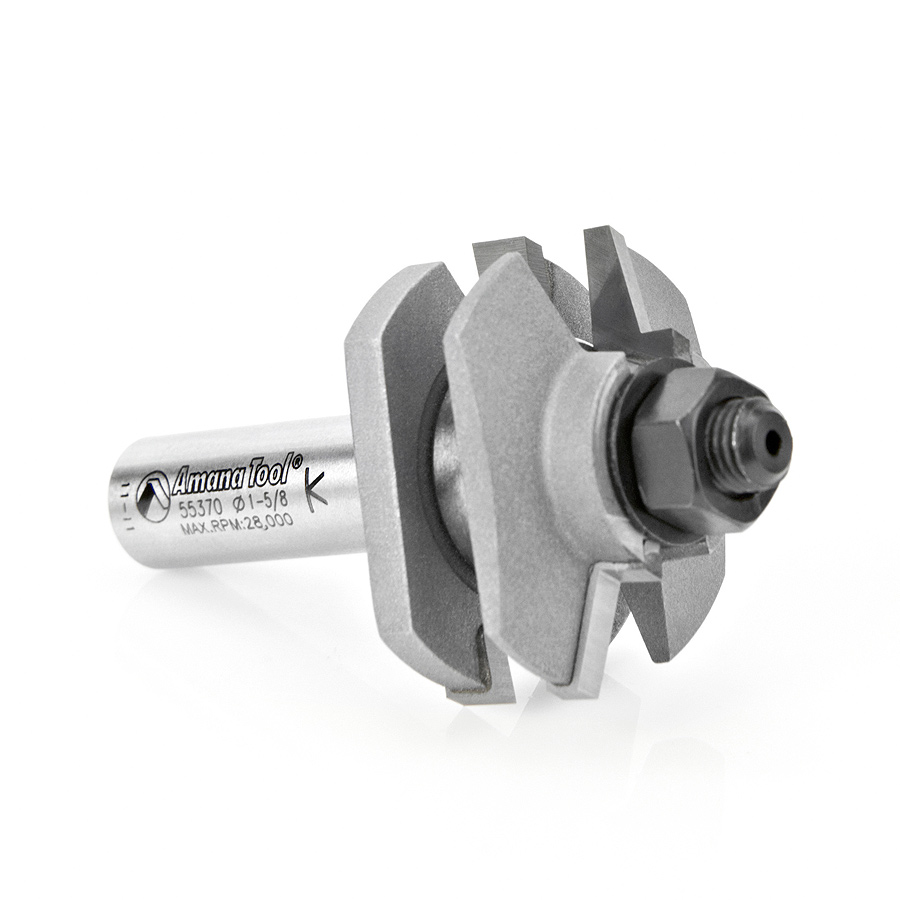

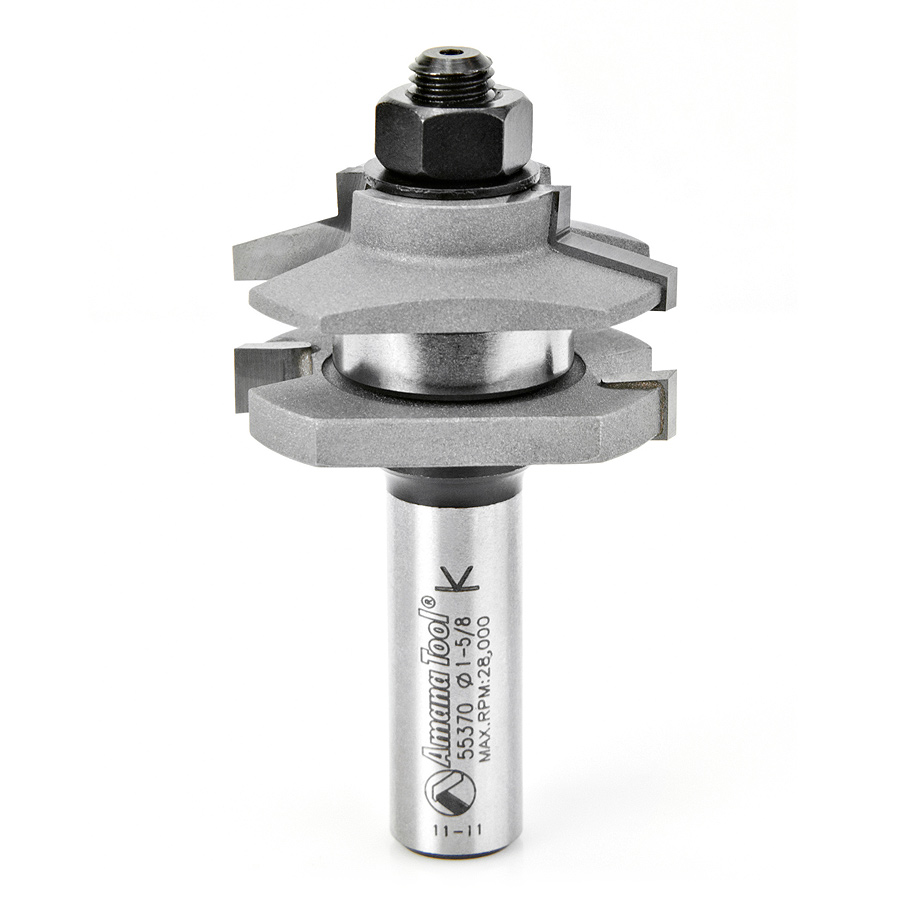

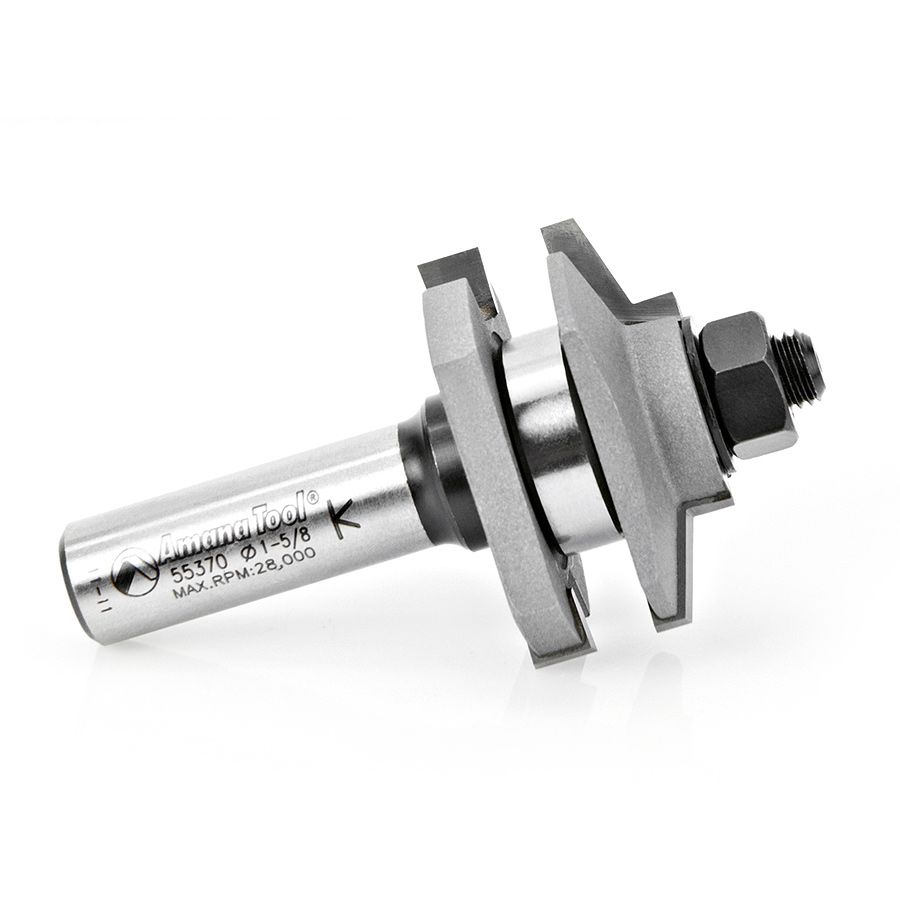

55370 Carbide Tipped Traditional Reversible Stile and Rail Assembly 1-5/8 Dia x 11/16 x 1/2 Inch Shank

Amana 55370 Carbide Tipped Traditional Reversible Stile and Rail Assembly 1-5/8 Dia x 11/16 x 1/2 Inch Shank

Name: Amana 55370 Carbide Tipped Traditional Reversible Stile and Rail Assembly 1-5/8 Dia x 11/16 x 1/2 Inch Shank
SKU: Amana 55370
Availability: InStock

Original price was: $153.75.Current price is: $115.32.

TRADITIONAL STILE AND RAIL ASS

UPC: 738685953709 SKU: Amana 55370 Categories: Amana Tool, Door Making Router Bits, One Piece Stile & Rail Router Bits, Router Bits

Item Description

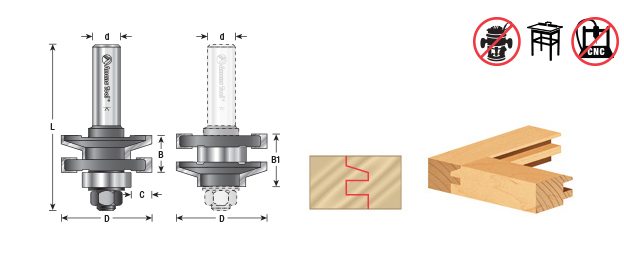

Cut both the stiles and rails with a single economical assembly. Switch from the stile cut to the rail cut simply by rearranging the cutters and bearing on the arbor. Because the profile and the cope are cut with the same cutter, you get a perfect fit. The assembly order for each setup is shown in the drawing. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

Note:** Stile & Rail assemblies can be used on 5/8″ through 7/8″ material.

Specifications

Diameter (D)	1-5/8
Cutting Height (B)	11/16
B1	7/8
Shank (d)	1/2
Overall Length (L)	3
Type	Traditional
Replacement Bearing	47708
Flutes	2
C	3/8
# Wings	2

Other Sizes Available

Diameter (D)	Type	C	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
1-5/8	Ogee	3/8 (9.53mm)	11/16 (17.46mm)	7/8 (22.23mm)	1/2 (12.70mm)	3 (76.20mm)	55350
1-5/8	Classical	3/8 (9.53mm)	11/16 (17.46mm)	7/8 (22.23mm)	1/2 (12.70mm)	3 (76.20mm)	55380

Weight	0.4 lbs
