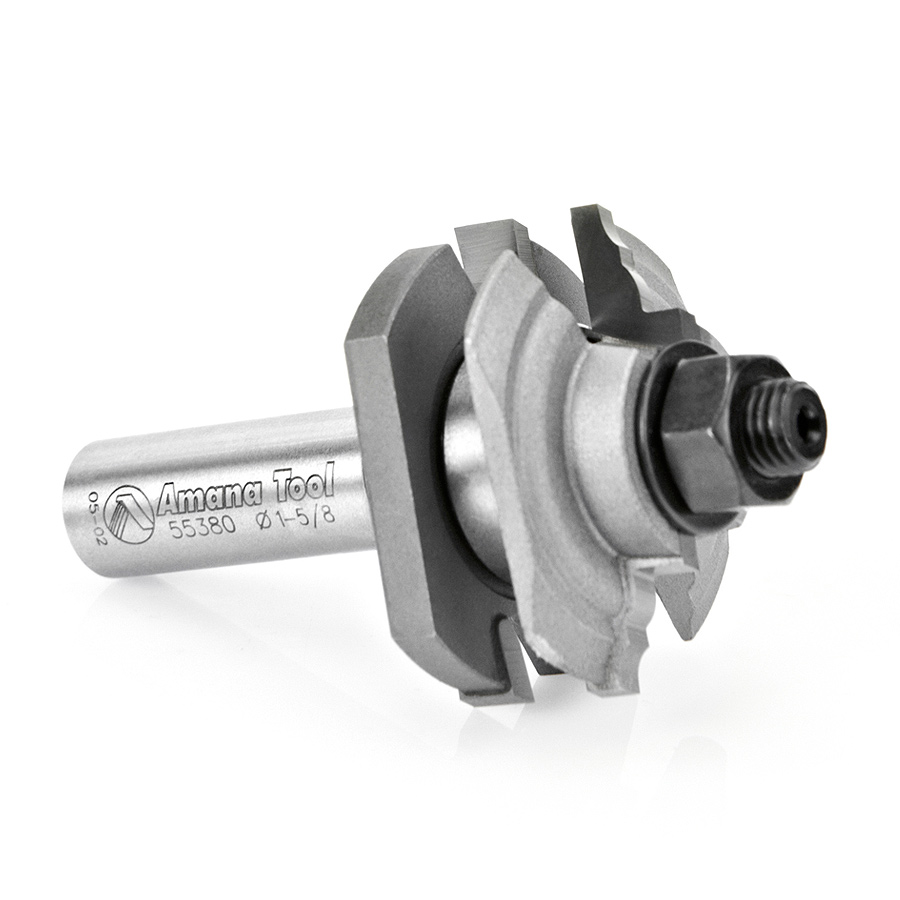

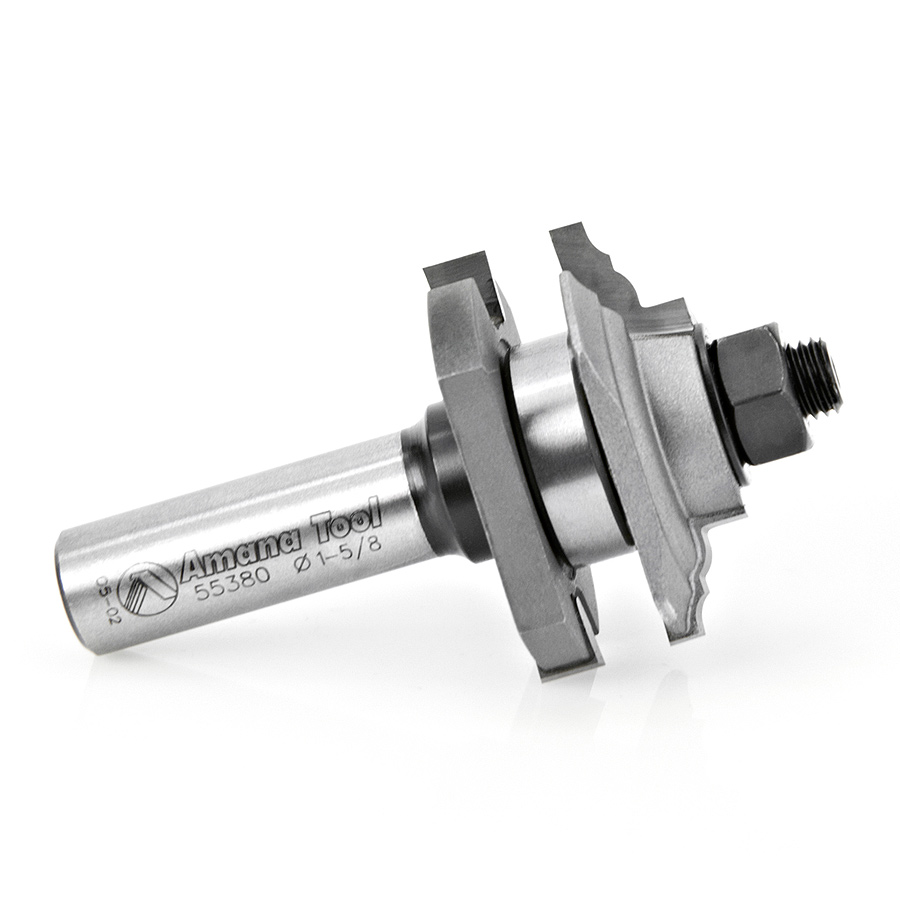

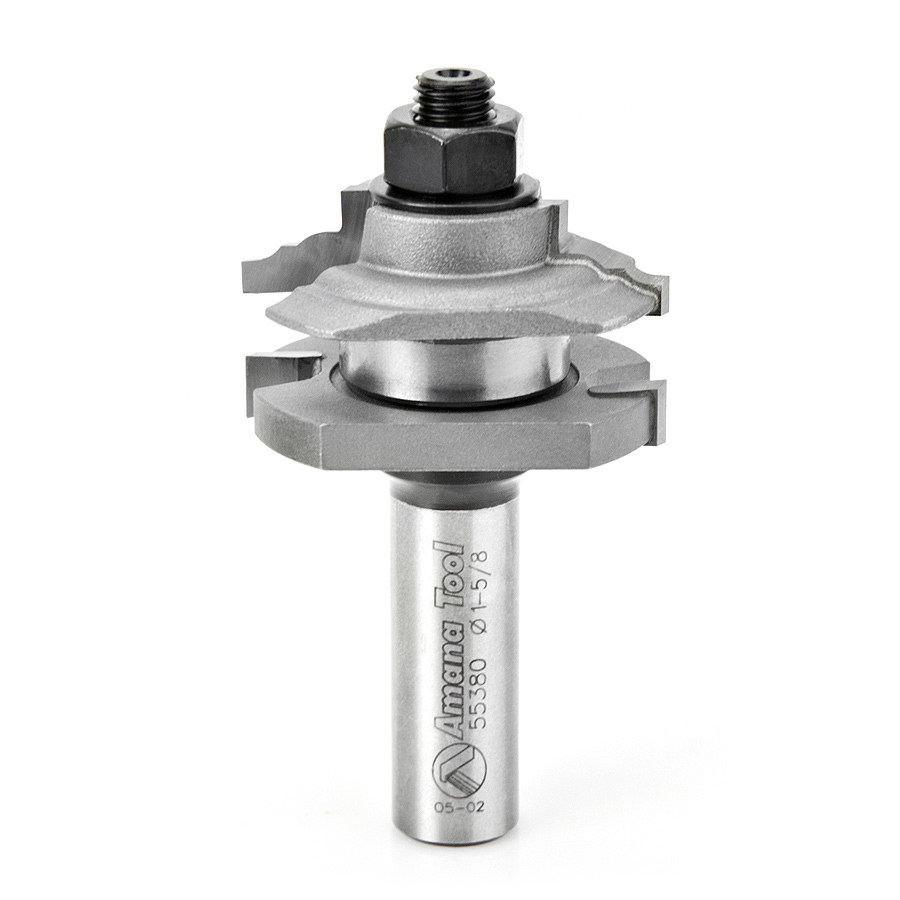

55380 Carbide Tipped Classical Reversible Stile and Rail Assembly 1-5/8 Dia x 11/16 x 1/2 Inch Shank

Amana 55380 Carbide Tipped Classical Reversible Stile and Rail Assembly 1-5/8 Dia x 11/16 x 1/2 Inch Shank

Name: Amana 55380 Carbide Tipped Classical Reversible Stile and Rail Assembly 1-5/8 Dia x 11/16 x 1/2 Inch Shank
SKU: Amana 55380
Availability: InStock

Original price was: $145.95.Current price is: $109.47.

CLASSICAL STILE AND RAIL ASSEM

UPC: 738685953808 SKU: Amana 55380 Categories: Amana Tool, Door Making Router Bits, One Piece Stile & Rail Router Bits, Router Bits

Item Description

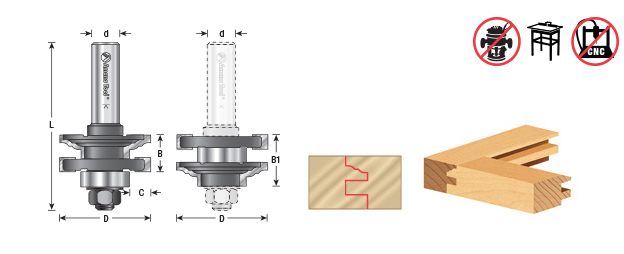

Cut both the stiles and rails with a single economical assembly. Switch from the stile cut to the rail cut simply by rearranging the cutters and bearing on the arbor. Because the profile and the cope are cut with the same cutter, you get a perfect fit. The assembly order for each setup is shown in the drawing. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

Note:** Stile & Rail assemblies can be used on 5/8″ through 7/8″ material.

Specifications

Diameter (D)	1-5/8
Cutting Height (B)	11/16
B1	7/8
Shank (d)	1/2
Overall Length (L)	3
Type	Classical
Flutes	2
C	3/8
# Wings	2

Other Sizes Available

Diameter (D)	Type	C	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
1-5/8	Ogee	3/8 (9.53mm)	11/16 (17.46mm)	7/8 (22.23mm)	1/2 (12.70mm)	3 (76.20mm)	55350
1-5/8	Traditional	3/8 (9.53mm)	11/16 (17.46mm)	7/8 (22.23mm)	1/2 (12.70mm)	3 (76.20mm)	55370

Weight	0.38 lbs
