Sale!

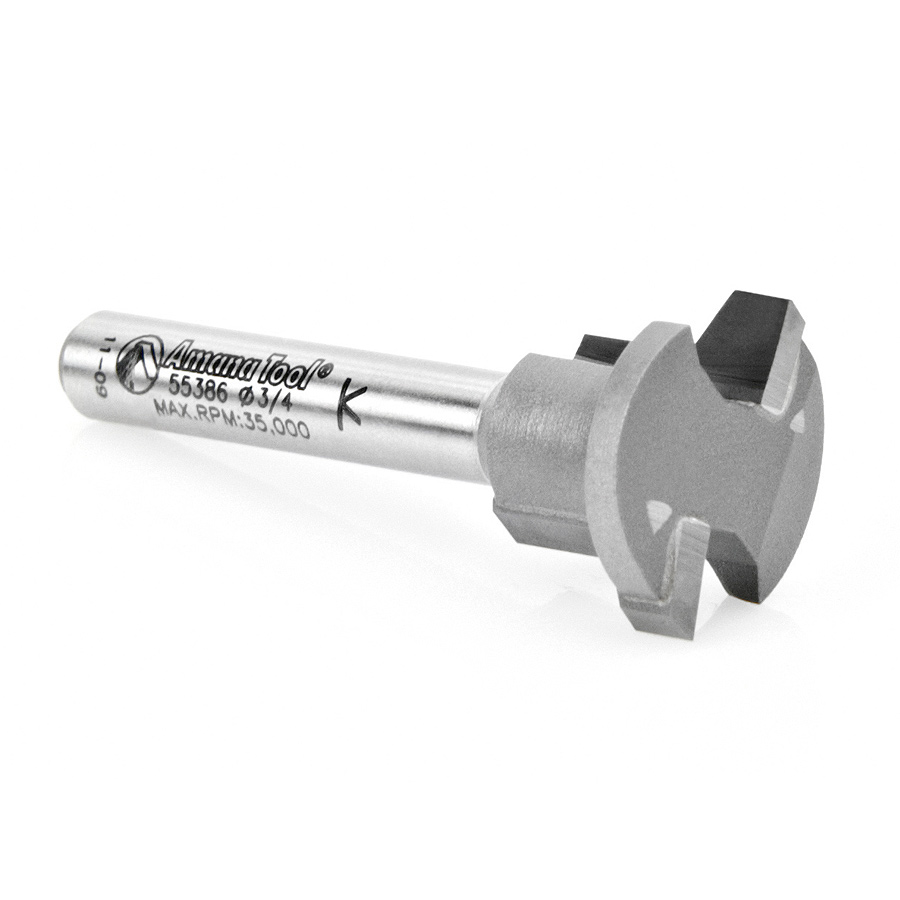

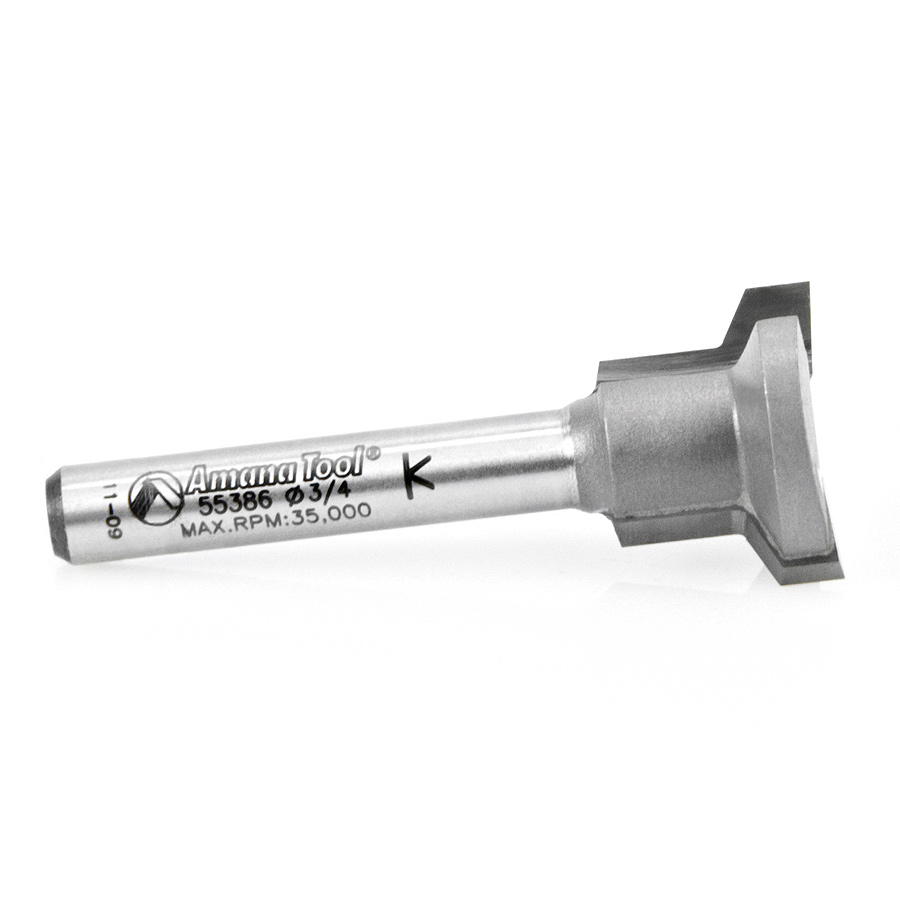

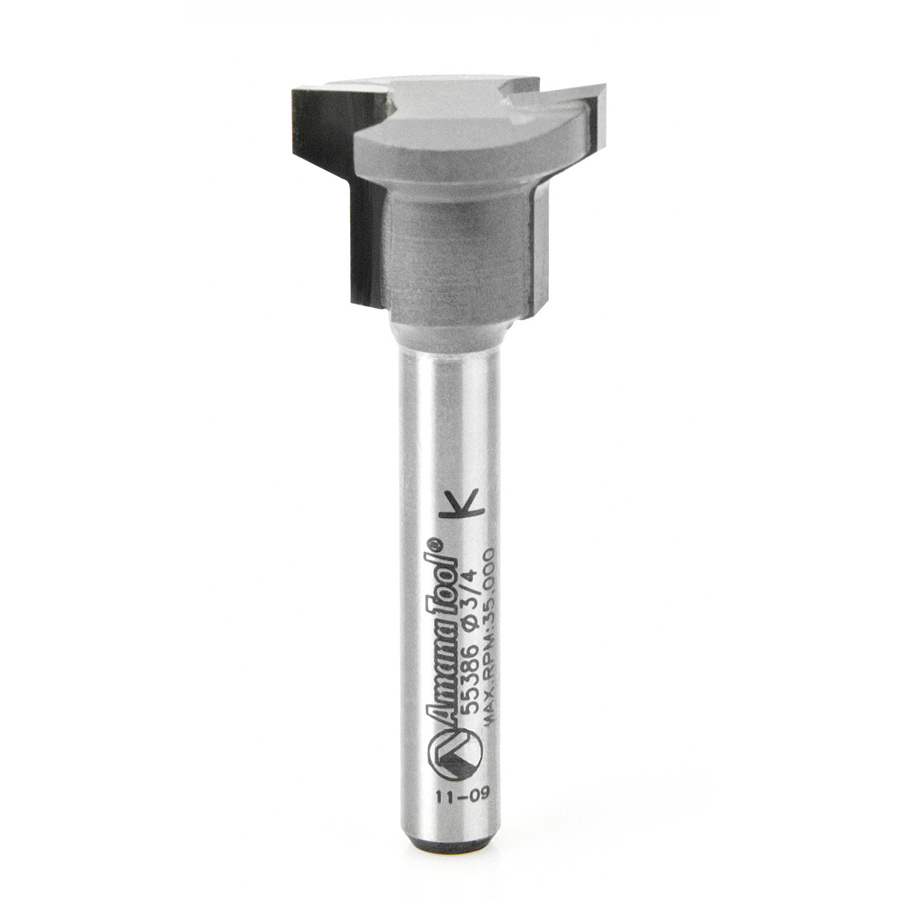

55386 Carbide Tipped Drawer Lock 3/4 Dia x 1/2 x 1/4 Inch Shank

Amana 55386 Carbide Tipped Drawer Lock 3/4 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 55386 Carbide Tipped Drawer Lock 3/4 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 55386
Availability: InStock

Original price was: $76.85.Current price is: $57.64.

DRAWER LOCK BIT 1/4 SHANK

UPC: 738685953860 SKU: Amana 55386 Categories: Amana Tool, Drawer Lock Router Bits, Jointing Router Bits, Router Bits

Item Description

With this one bit, cut a lock joint that’s ideal for quick construction of strong drawer boxes. Use in a table-mounted router only. The same bit setting is used for both halves of the joint; adjust the fence position slightly to switch between sides and fronts/backs. The drawer front (or back) is laid flat on the tabletop and fed across the cutter. The side is braced vertically against the fence and fed across the cutter. You can use stock of any thickness and any composition and produce flush or lipped drawers. For best results use in a table-mounted router.

Click on the product information tab for more info.

Product Information

![Image 16: Drawer Lock Information](http://www.amanatool.com/media/wysiwyg/55386-Drawer-Lock.jpg)

Specifications

Diameter (D)	3/4
D1	1/2
Cutting Height (B)	1/2
B1	5/32
Shank (d)	1/4
Overall Length (L)	1-7/8
Flutes	2

Other Sizes Available

Diameter (D)	D1	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
1 (25.40mm)	23/32 (18.26mm)	1/2 (12.70mm)	5/32 (3.97mm)	1/2 (12.70mm)	1-7/8	55387

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
