Sale!

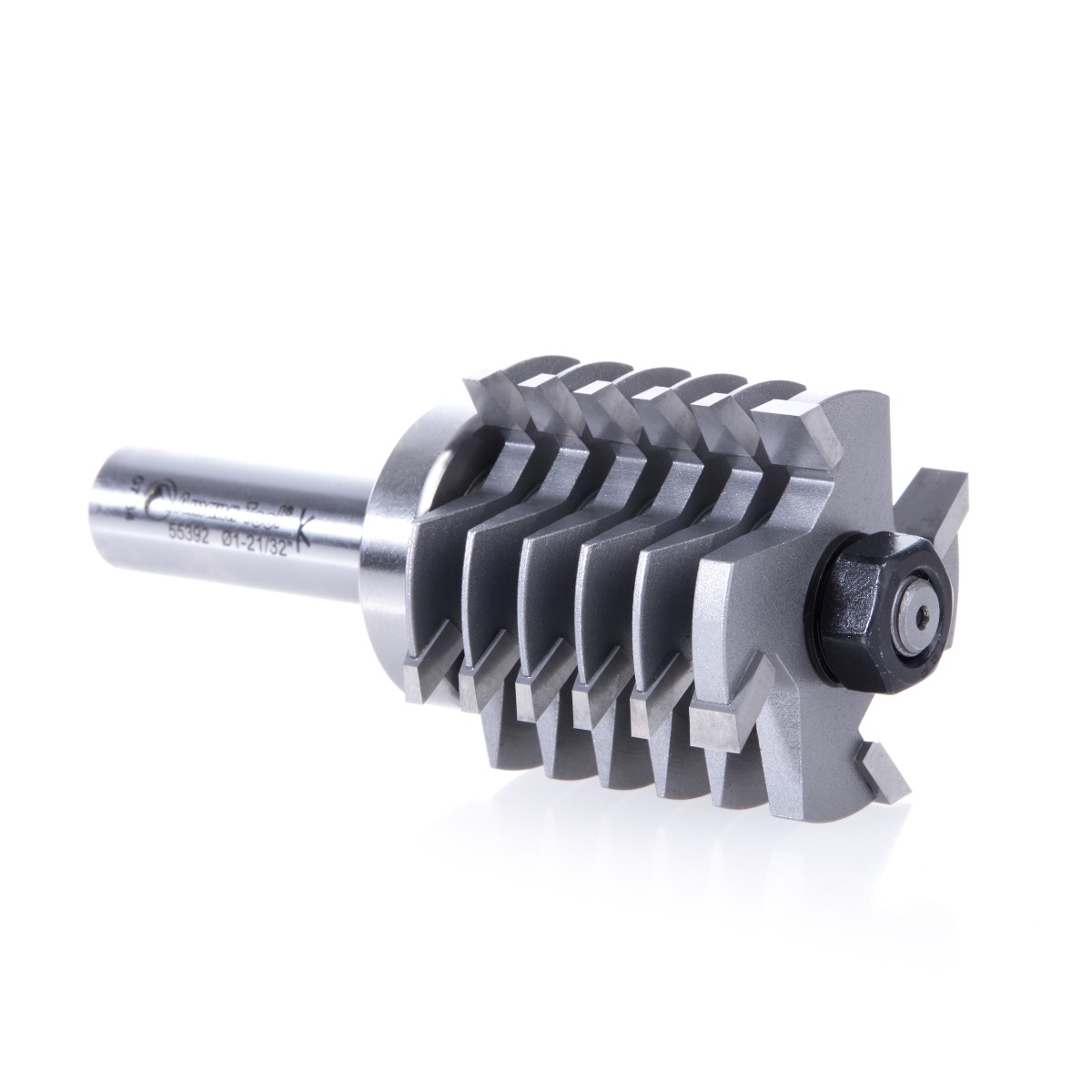

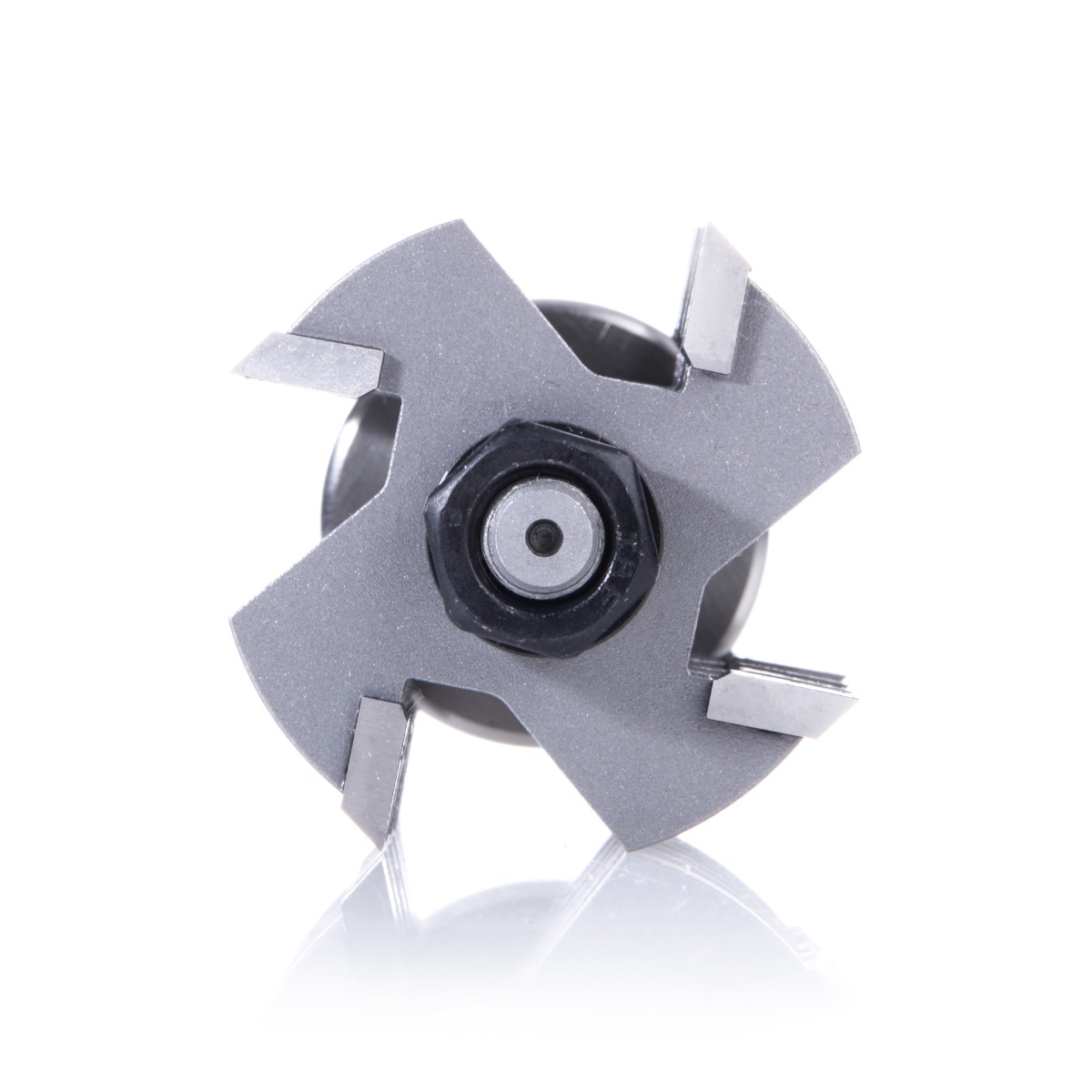

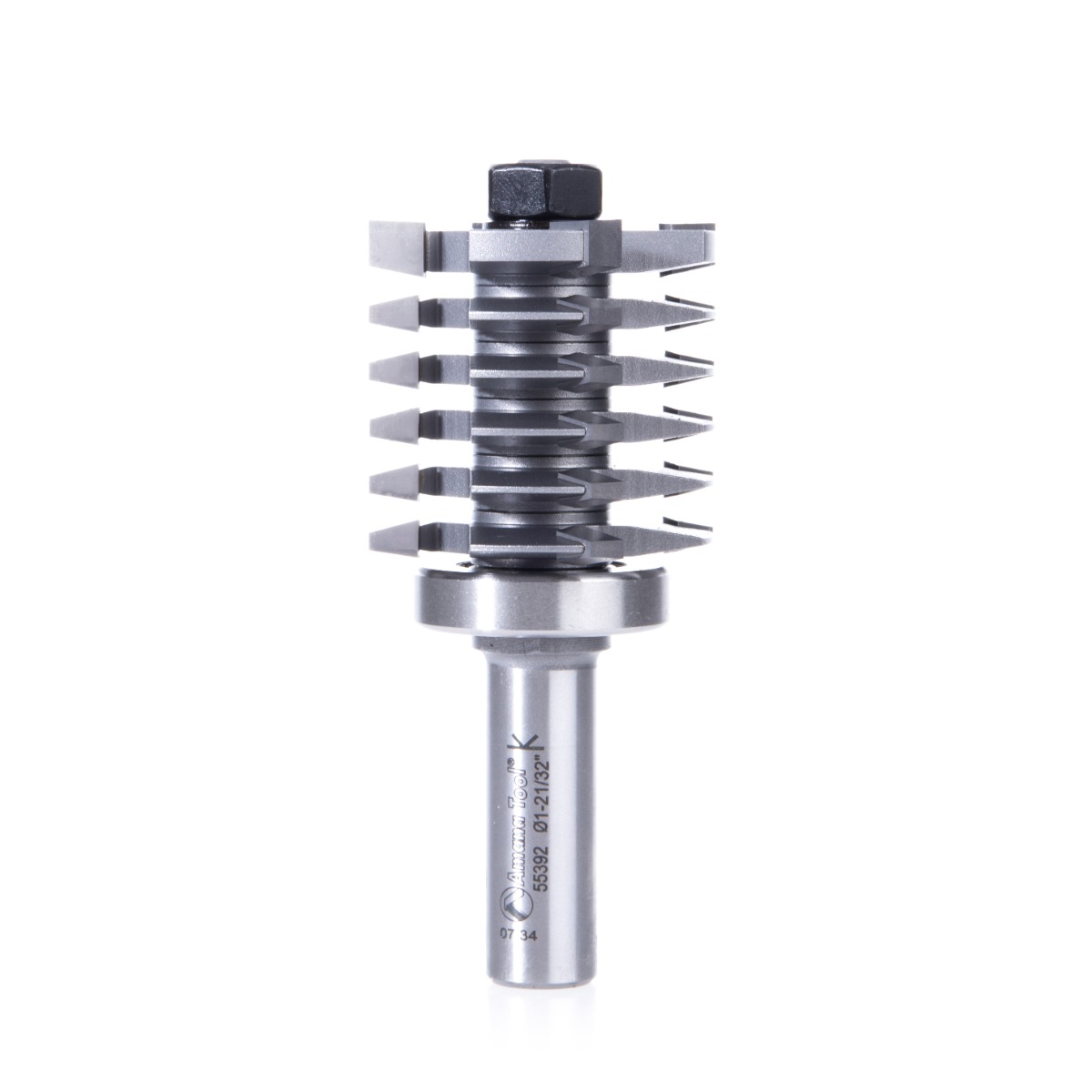

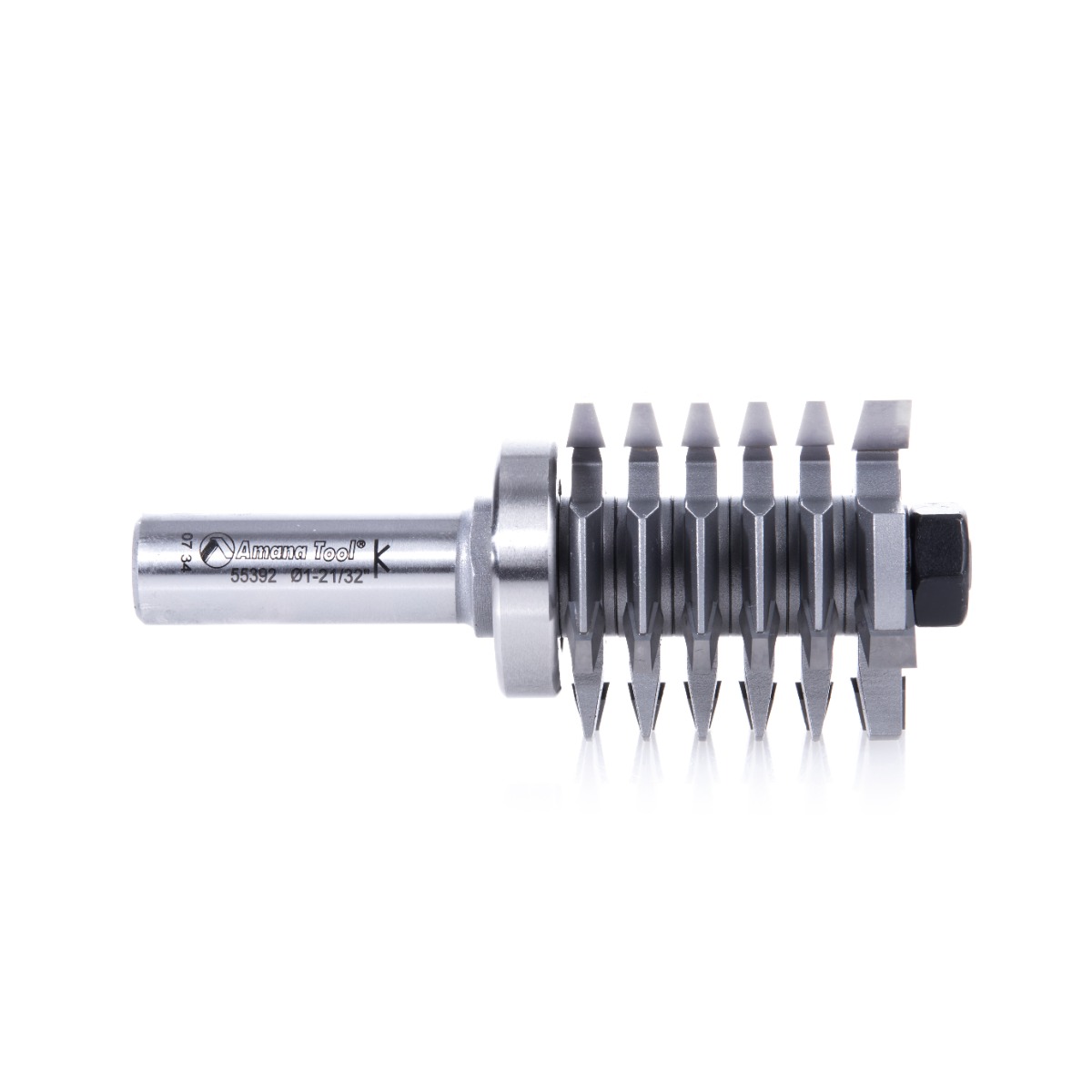

55392 Carbide Tipped Finger Joint Assembly 1-21/32 Dia x 1-17/32 x 1/2 Inch Shank with Upper BB

Amana 55392 Carbide Tipped Finger Joint Assembly 1-21/32 Dia x 1-17/32 x 1/2 Inch Shank with Upper BB

Original price was: $205.00.Current price is: $153.75.

FINGER JOINT BIT 1/2 SHANK

Item Description

Ideal for joining wood end-to-end as well as edge-to-edge, the finger joint can be routed quickly and accurately with this tool. Rout one workpiece face up, the other face down. When the bit height is correct, the two pieces should slide together with their faces perfectly flush. The assembly includes five 4-wing finger cutters, one 4-wing straight cutter, a ball bearing guide, a 1/2″ shank arbor. The number of finger cutters used varies with the stock thickness; it can handle stock between 7/16″ and 1-1/2″ thick. For best results run at full speed in a 1-1/2 horsepower table-mounted router. Full instructions for setup and use are included.

Replacement Parts

Ball Bearing
47834

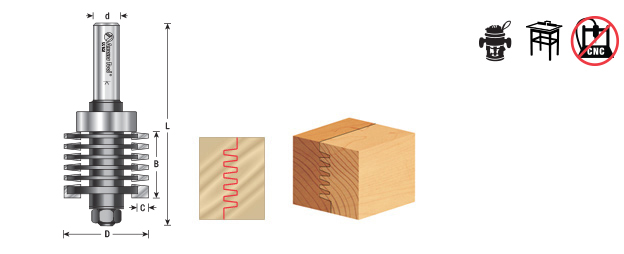

Specifications

Diameter (D)	1-21/32
Cutting Height (B)	1-17/32
Shank (d)	1/2
Overall Length (L)	3-21/32
Replacement Bearing	47834
C	1/4
# Wings	4

Weight	0.54 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
