55408 2-Piece Carbide Tipped Tongue & Groove 3/8 Kerf x 1-5/8 Dia x 17/32 x 1/2 Inch Shank Set for 3/8 - 1/2 Material

Amana 55408 2-Piece Carbide Tipped Tongue & Groove 3/8 Kerf x 1-5/8 Dia x 17/32 x 1/2 Inch Shank Set for 3/8 – 1/2 Material

Name: Amana 55408 2-Piece Carbide Tipped Tongue &amp; Groove 3/8 Kerf x 1-5/8 Dia x 17/32 x 1/2 Inch Shank Set for 3/8 - 1/2 Material
SKU: Amana 55408
Availability: InStock

Original price was: $179.40.Current price is: $134.55.

TONGUE & GROOVE SET 1/8″ KERF

UPC: 738685005408 SKU: Amana 55408 Categories: Amana Tool, Jointing Router Bits, Router Bits, Tongue & Groove Router Bits

Item Description

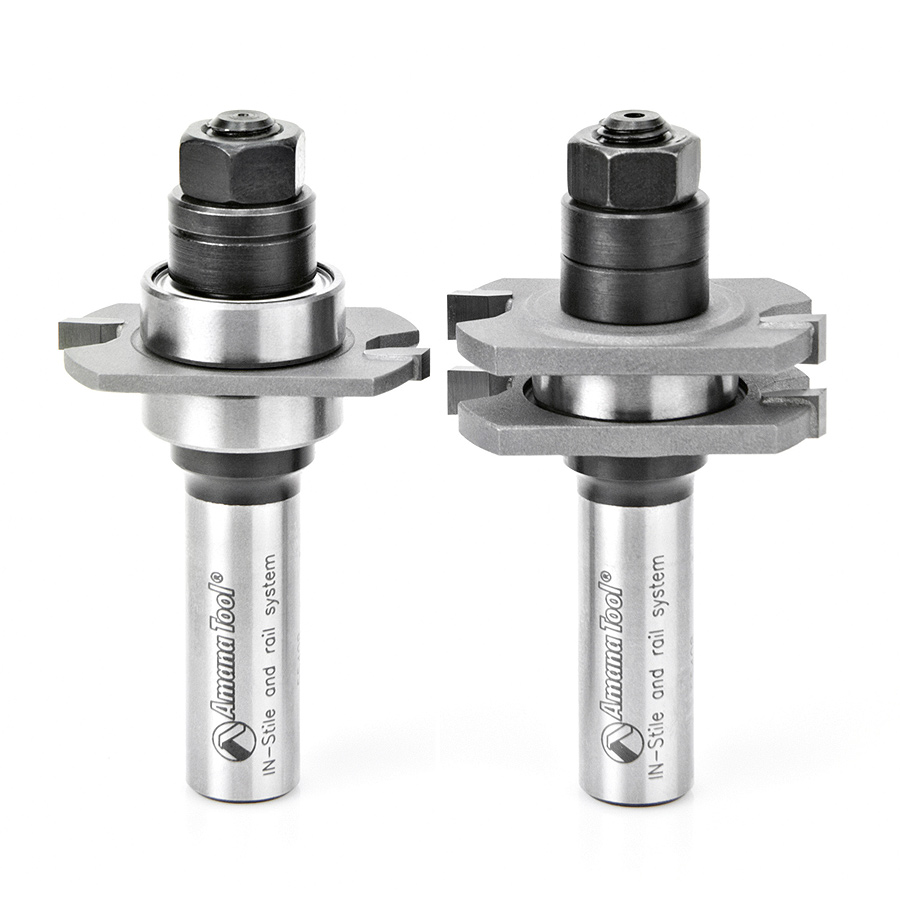

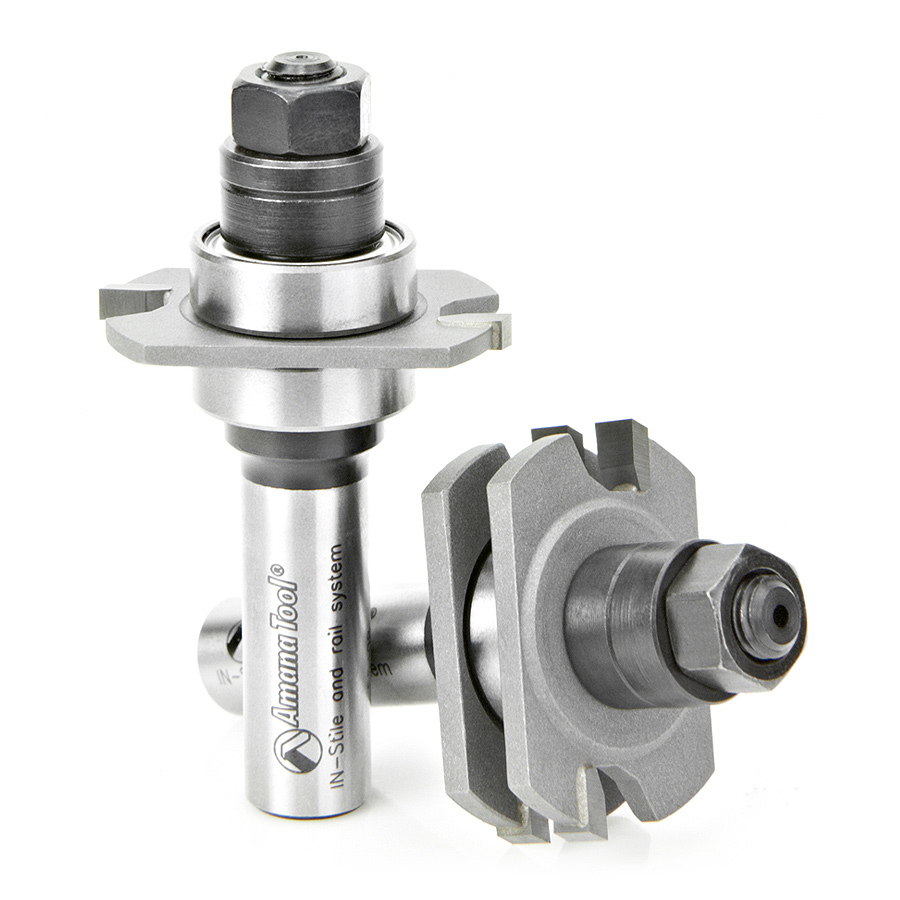

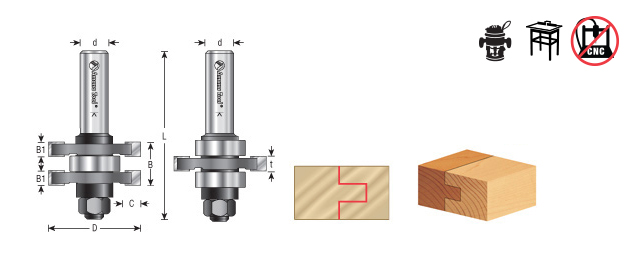

Cut perfectly fitted tongue-and-groove joints on stock between 3/8″ and 1/2″ thick with a table-mounted router and this assembly. The tool consists of an arbor with an integral shank, two identical, removable slotting cutters, and a pair of bearings. To cut tongues, sandwich one bearing between the two cutters (as in drawing A). To cut slots, mount one cutter between the two bearings (as in drawing B). Each set contains two complete tongue & groove assemblies, one to cut tongues, one to cut slots.

Specifications

Diameter (D)	1-5/8
Cutting Height (B)	17/32
B1	13/64
Shank (d)	1/2
Overall Length (L)	3
T	1/8
Replacement Bearing	47708
Material size	3/8" through 1/2" thick
C	3/8
# Wings	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	B1	C	Shank (d)	T	Overall Length (L)	Tool No.
1-5/8	1-1/8	7/16 (11.11mm)	3/8 (9.53mm)	1/2 (12.70mm)	1/4 (6.35mm)	3-5/16	55416
1-7/8	3/4 (19.05mm)	1/4 (6.35mm)	1/2 (12.70mm)	1/2 (12.70mm)	1/4 (6.35mm)	3 (76.20mm)	55407

Weight	0.62 lbs
