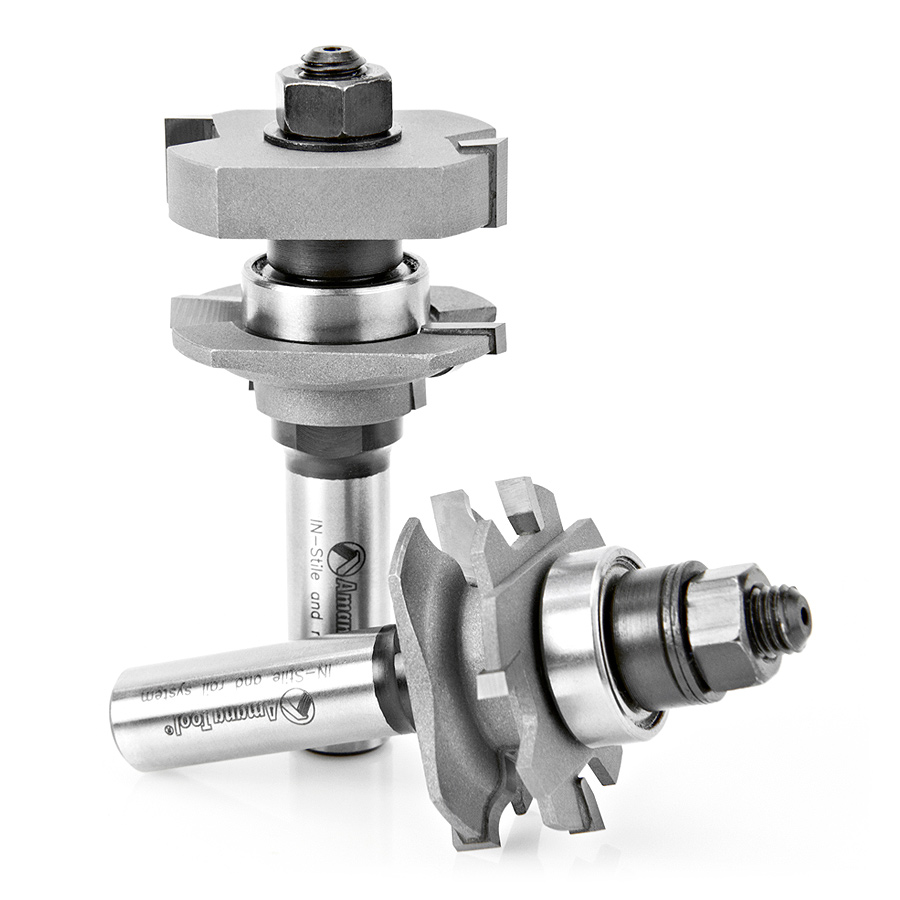

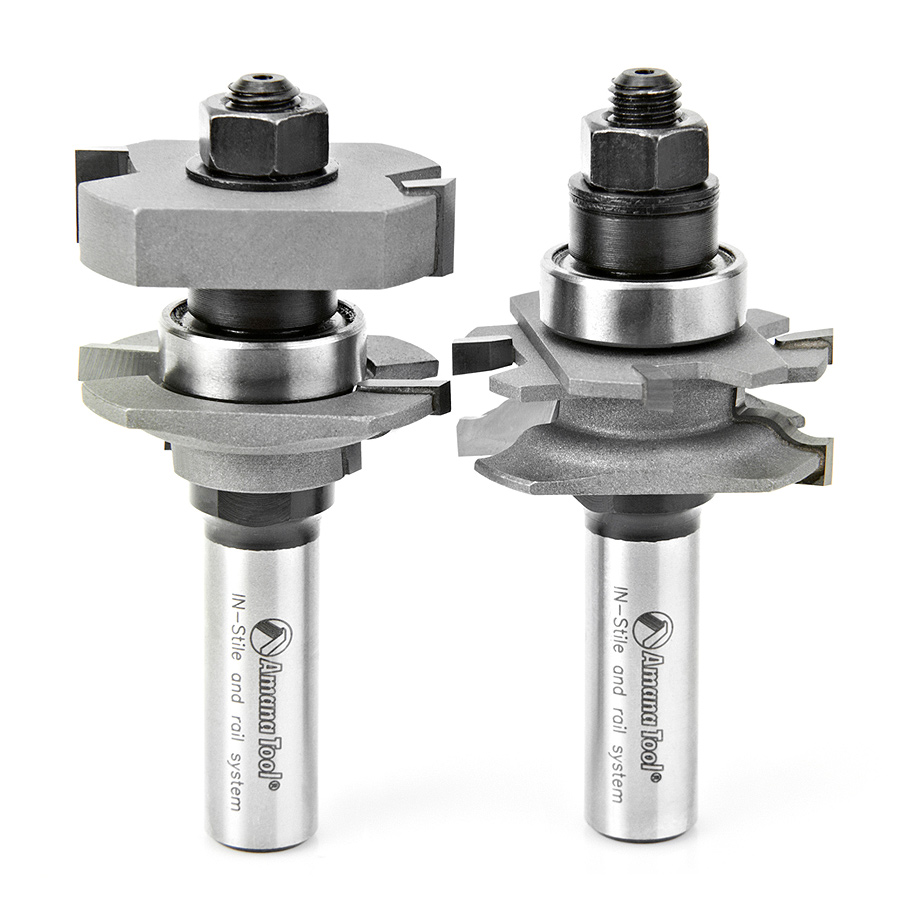

55436 Carbide Tipped Adjustable Ogee Instile and Rail System 1-5/8 Dia x 5/8 to 1-1/8 x 5/32 Radius x 1/2 Inch Shank Set

Amana 55436 Carbide Tipped Adjustable Ogee Instile and Rail System 1-5/8 Dia x 5/8 to 1-1/8 x 5/32 Radius x 1/2 Inch Shank Set

Name: Amana 55436 Carbide Tipped Adjustable Ogee Instile and Rail System 1-5/8 Dia x 5/8 to 1-1/8 x 5/32 Radius x 1/2 Inch Shank Set
SKU: Amana 55436
Availability: InStock

Original price was: $384.35.Current price is: $288.27.

IN-STILE /RAIL OGEE PLYWOOD

UPC: 738685554364 SKU: Amana 55436 Categories: 2-pc Stile & Rail Router Bit Sets, Amana Tool, Door Making Router Bits, Router Bits

Item Description

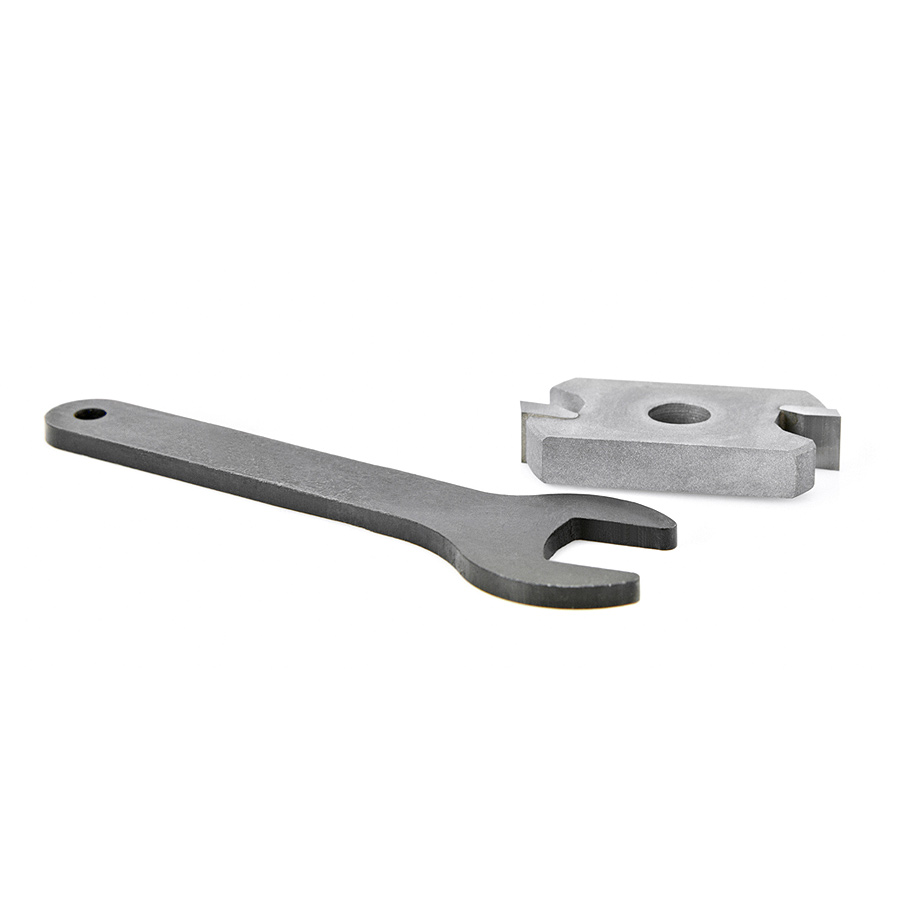

Bits in these sets have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2″ shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.

Replacement Parts

Tool No.	Bearing(s)
55436	47708

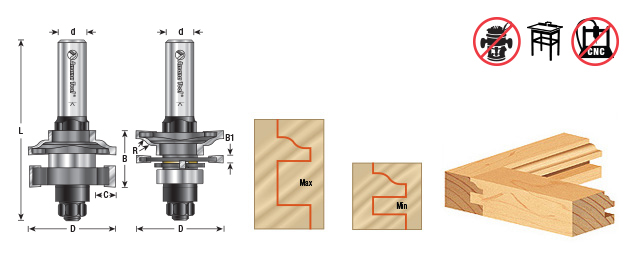

Specifications

Diameter (D)	1-5/8
Radius (R)	5/32
Cutting Height (B)	5/8 to 1-1/8
Shank (d)	1/2
Overall Length (L)	3-11/32
Type	Ogee
Flutes	2
C	3/8
B1 for 1/4" Plywood	3/16 to 9/32
B1 for 1/2" Plywood	7/16 to 17/32

Other Sizes Available

Angle (a°)	Diameter (D)	Radius (R)	Cutting Height (B)	B1 for 1/4" Plywood	B1 for 1/2" Plywood	C	Shank (d)	Overall Length (L)	Type	Flutes	Tool No.
18°	1-7/8	–	5/8	3/16	7/16	1/2 (12.70mm)	1/2 (12.70mm)	3-11/32	Straight with Bevel	2	55432
–	1-5/8	1/4 (6.35mm)	5/8	3/16	7/16	3/8 (9.53mm)	1/2 (12.70mm)	3-11/32	Concave	2	55433
–	1-5/8	3/16 (4.76mm)	5/8	3/16	7/16	3/8 (9.53mm)	1/2 (12.70mm)	3-11/32	Bead	2	55437
–	1-5/8	–	5/8	3/16	7/16	3/8 (9.53mm)	1/2 (12.70mm)	3-11/32	Mission (Straight)Mission (Straight)Mission (Straight)Mission (Straight)	2	55438
–	1-7/8	–	5/8	3/16	7/16	1/2 (12.70mm)	1/2 (12.70mm)	3-11/32	Mission (Straight)Mission (Straight)Mission (Straight)Mission (Straight)	2	55439

Weight	0.96 lbs
