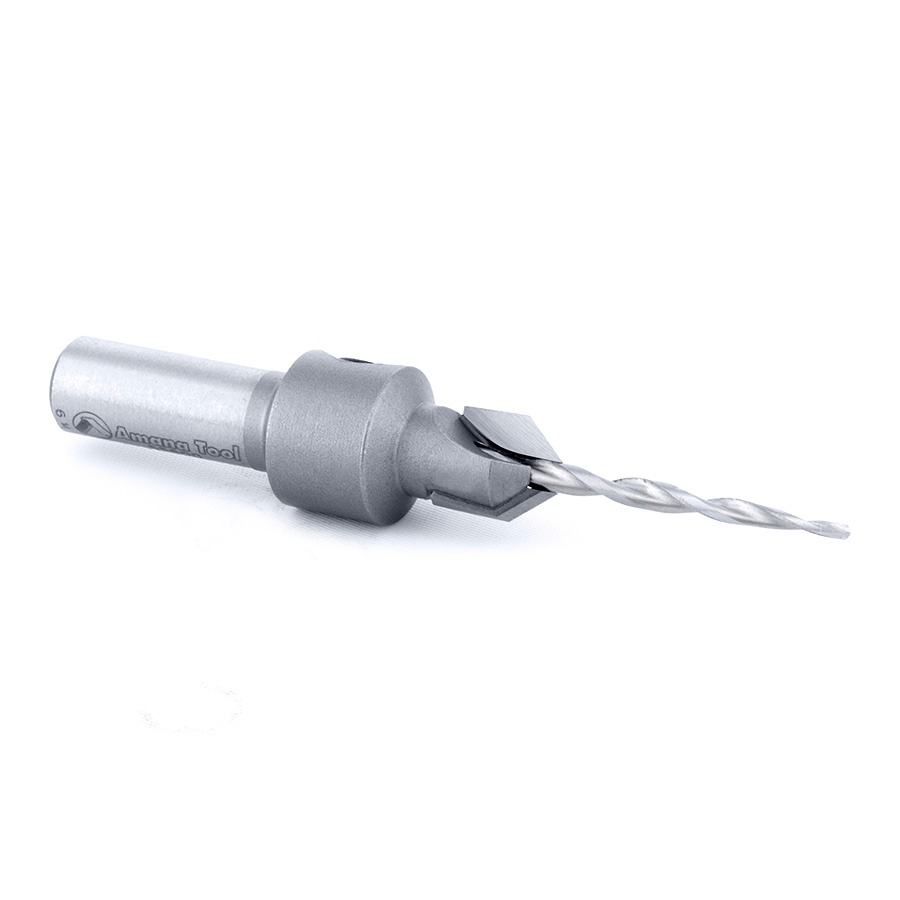

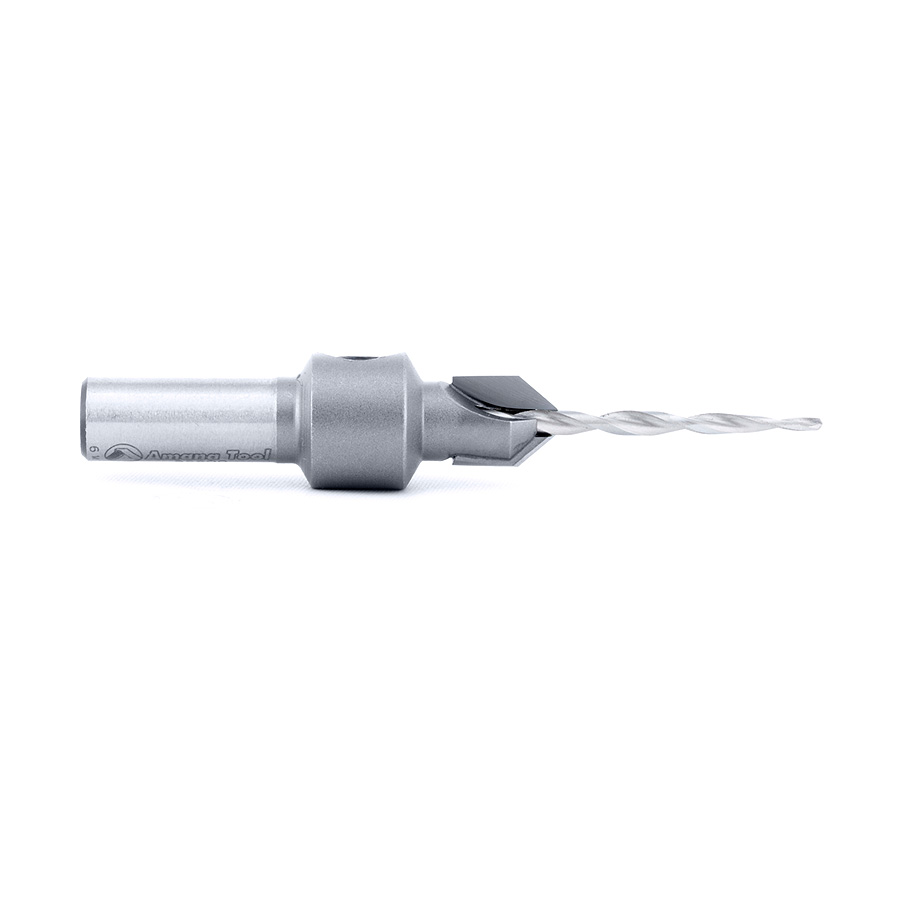

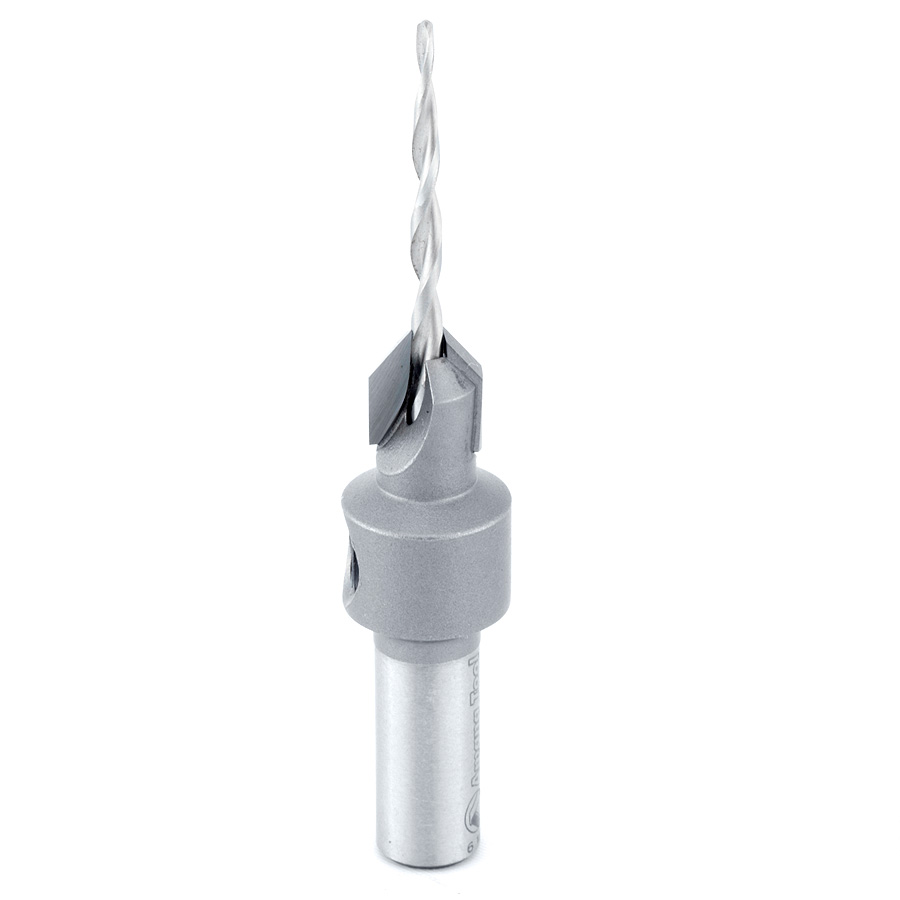

55600 Carbide Tipped 82 Degree Countersink Taper #4 Screw 11/32 Dia x 3/32 Drill Dia x 5/16 Round Shank

Amana 55600 Carbide Tipped 82 Degree Countersink Taper #4 Screw 11/32 Dia x 3/32 Drill Dia x 5/16 Round Shank

Name: Amana 55600 Carbide Tipped 82 Degree Countersink Taper #4 Screw 11/32 Dia x 3/32 Drill Dia x 5/16 Round Shank
SKU: Amana 55600
Availability: InStock

Original price was: $51.35.Current price is: $38.52.

CT COUNTERSINK TAPER #4 SCREW

UPC: 738685556009 SKU: Amana 55600 Categories: Amana Tool, Boring & Drilling Bits, Carbide Tipped Countersinks Bits, Countersink Bits

Item Description

Used to countersink holes for the heads of screws in woods, plastic and non-ferrous materials. The 2-flute integral design ensures uniform and concentric results each and every time. Carbide tips provide chip free hole edges and lasts much longer than steel countersinks.

Available in a wide variety of sizes, complete with the HSS drill bit.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

CNC Countersink

Drilling countersinks with these bits on the CNC machine is a great way to save time and have your pieces look great every time!

With the adjustable depth drill bit you can adjust them for whatever size material you’re working with. They are best used with a drilling toolpath, utilizing the peck drill option at .25″ per pass with a .125″ retract height.

For best results run at 3,000 RPM with a 30 IPM (Inches Per Minute) plunge rate. No feed rate needs to be set with these as they only move up and down with the Z axis, not side to side. If your software doesn’t allow a 0 feed rate, you can enter 1 IPM(Inch Per Minute) in the feed rate as a placeholder.

For countersinks with 1/4″ round shank, use 1/4″ spring collet.

For countersinks with 5/16″ round shank, use 7-8mm spring collet.

For countersinks with 3/8″ round shank, use 9-10mm spring collet.

Replacement Parts

Tool No.	Set Screw	Drill Bit
55600	67083	630-262

Specifications

(a°) Angle	49°
(D) Diameter	11/32
(B) Cutting Height	1/2
(d) Shank	5/16
Overall Length (L)	2-1/4
Wood Screw Size	#4
# Wings	2
D1	3/32
Replacement Drill	630-262
L1	1-1/2

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(a°) Angle	(B) Cutting Height	(d) Shank	Overall Length (L)	L1	Replacement Drill	Tool No.
#6#6#6#6	3/8 (9.53mm)	1/8 (3.18mm)	49°	1/2 (12.70mm)	5/16 (7.94mm)	2-9/16	1-5/8	630-266	55602
#6#6#6#6	25/64 (9.92mm)	9/64 (3.57mm)	49°	1/2 (12.70mm)	5/16 (7.94mm)	3 (76.20mm)	1-5/8	630-268	55604
#8#8#8#8	7/16 (11.11mm)	11/64 (4.37mm)	49°	1/2 (12.70mm)	5/16 (7.94mm)	3-1/4	1-5/8	630-272	55608
#10#10#10#10	7/16 (11.11mm)	3/16 (4.76mm)	49°	1/2 (12.70mm)	3/8 (9.53mm)	3-1/2	2 (50.80mm)	630-274	55610

Weight	0.06 lbs
