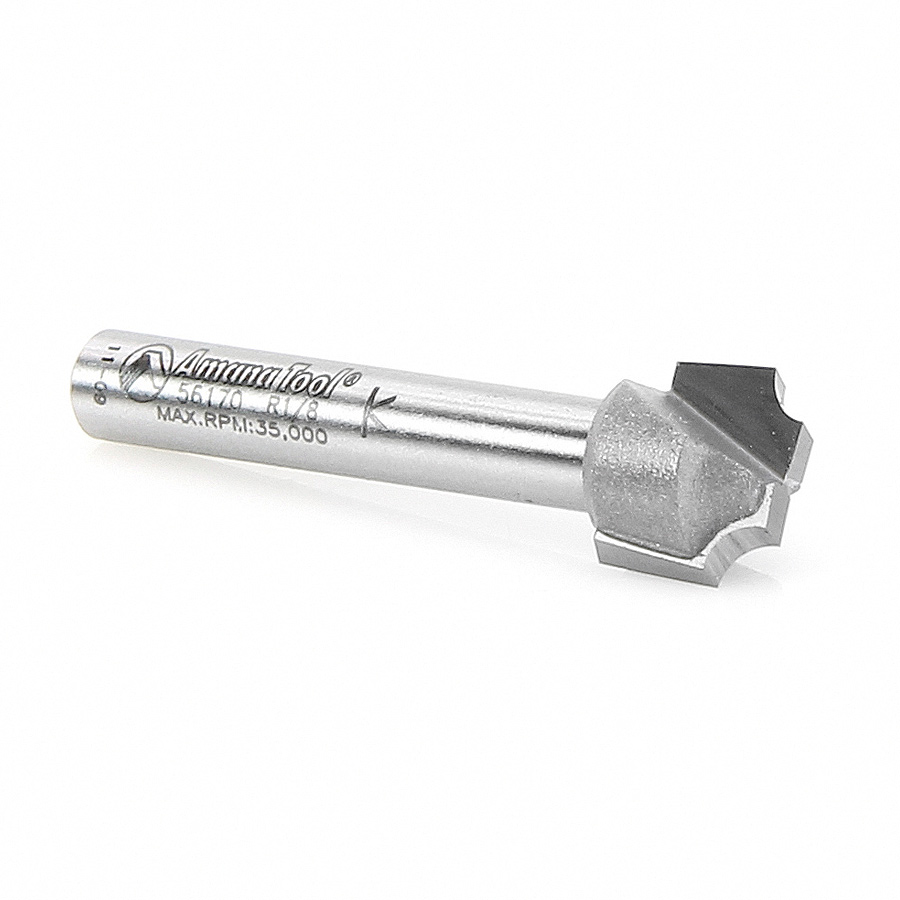

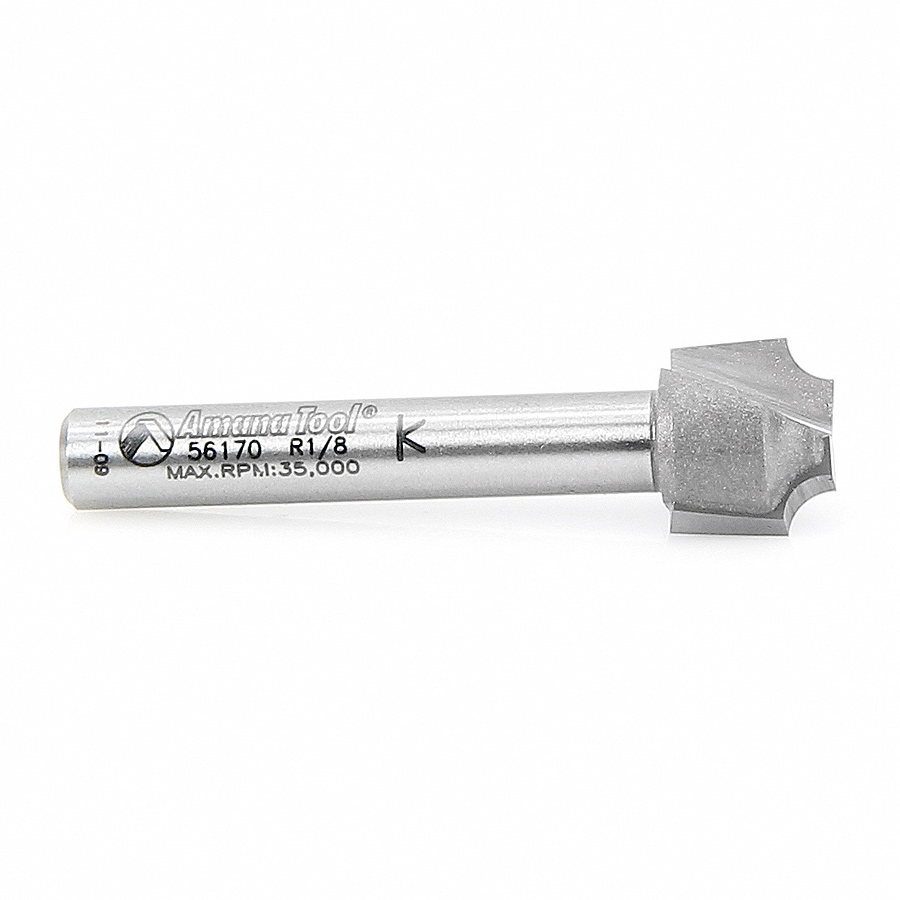

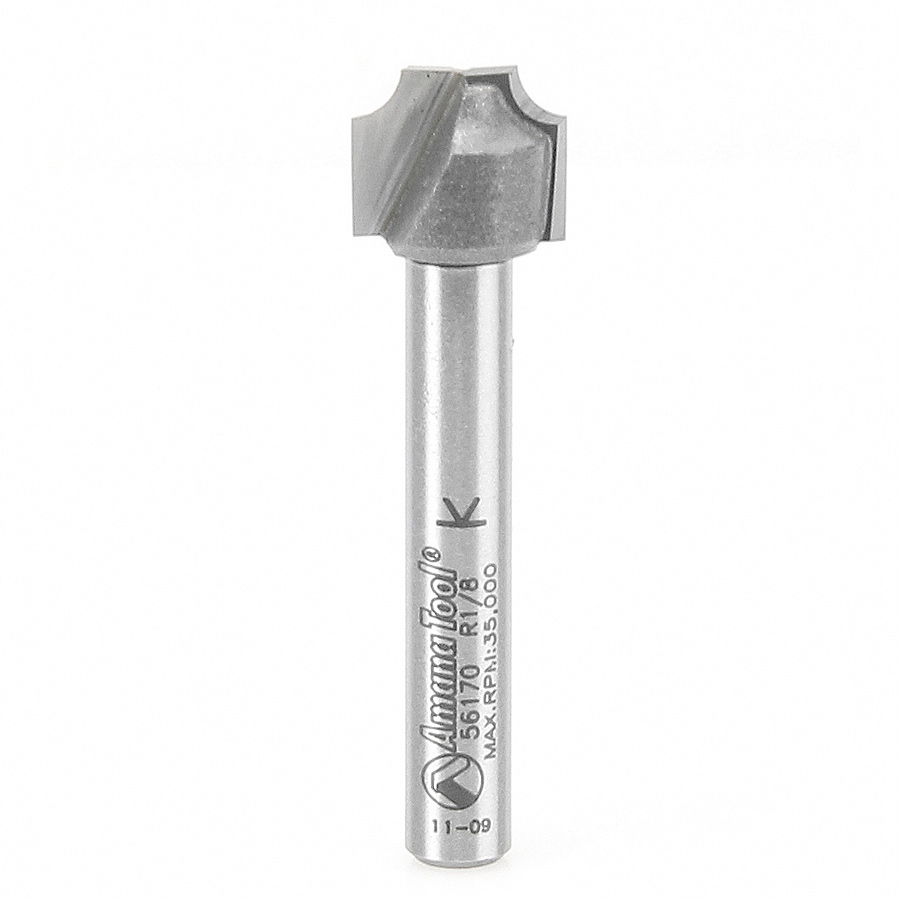

56170 Carbide Tipped Plunge Beading 1/8 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Amana 56170 Carbide Tipped Plunge Beading 1/8 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Name: Amana 56170 Carbide Tipped Plunge Beading 1/8 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank
SKU: Amana 56170
Availability: InStock

Original price was: $64.45.Current price is: $48.34.

BEADING BIT PLUNGE 1/4 SHANK

UPC: 738685561706 SKU: Amana 56170 Categories: Amana Tool, Beading Groove Router Bits, Grooving Router Bits, Router Bits

Item Description

Quarter-round profiles are formed by this bit as it grooves, one on each side of a flat. Used with a fence or edge guide, this beading bit can be used as an edge former.

Specifications

Diameter (D)	1/2
D1	1/4
Radius (R)	1/8
Cutting Height (B)	3/8
B1	1/8
Shank (d)	1/4
Overall Length (L)	1-7/8
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Flutes	Tool No.
25/64 (9.92mm)	1/8 (3.18mm)	3/32 (2.38mm)	23/64 (9.13mm)	1/8 (3.18mm)	1/4 (6.35mm)	1-29/32	2	56100
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/16 (7.94mm)	19/32 (15.08mm)	1/2 (12.70mm)	2-9/16	2	56179
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/16 (7.94mm)	19/32 (15.08mm)	1/2 (12.70mm)	2-9/16	2	56179-CNC

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
