Sale!

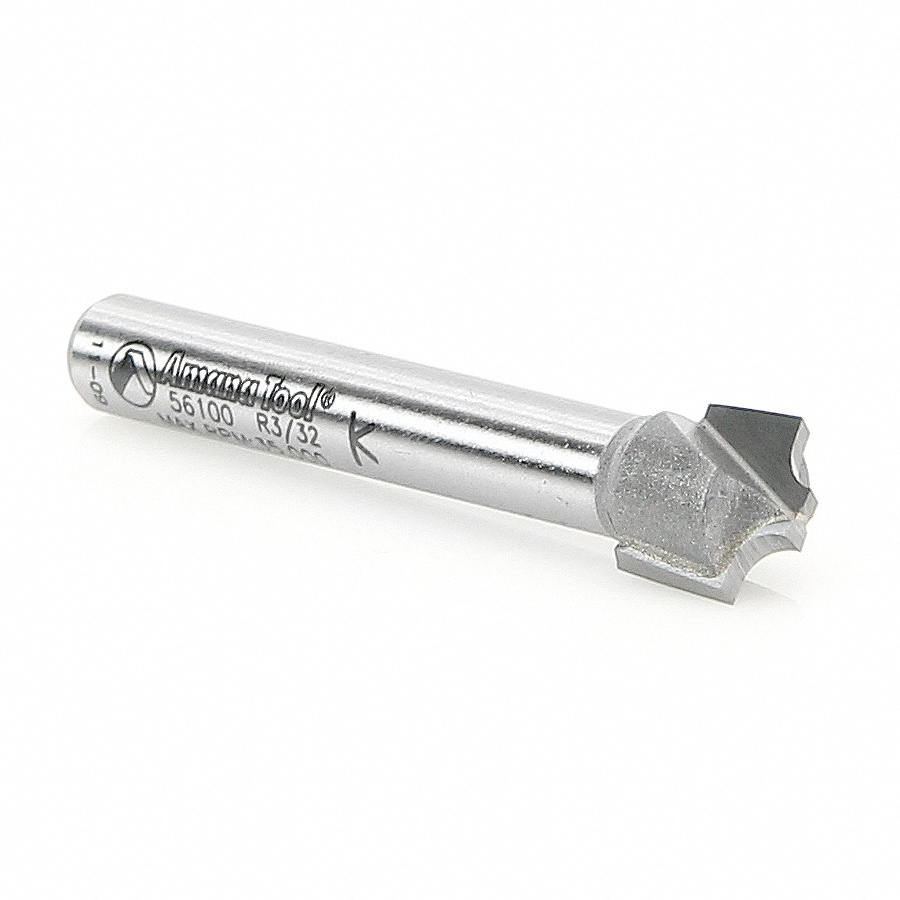

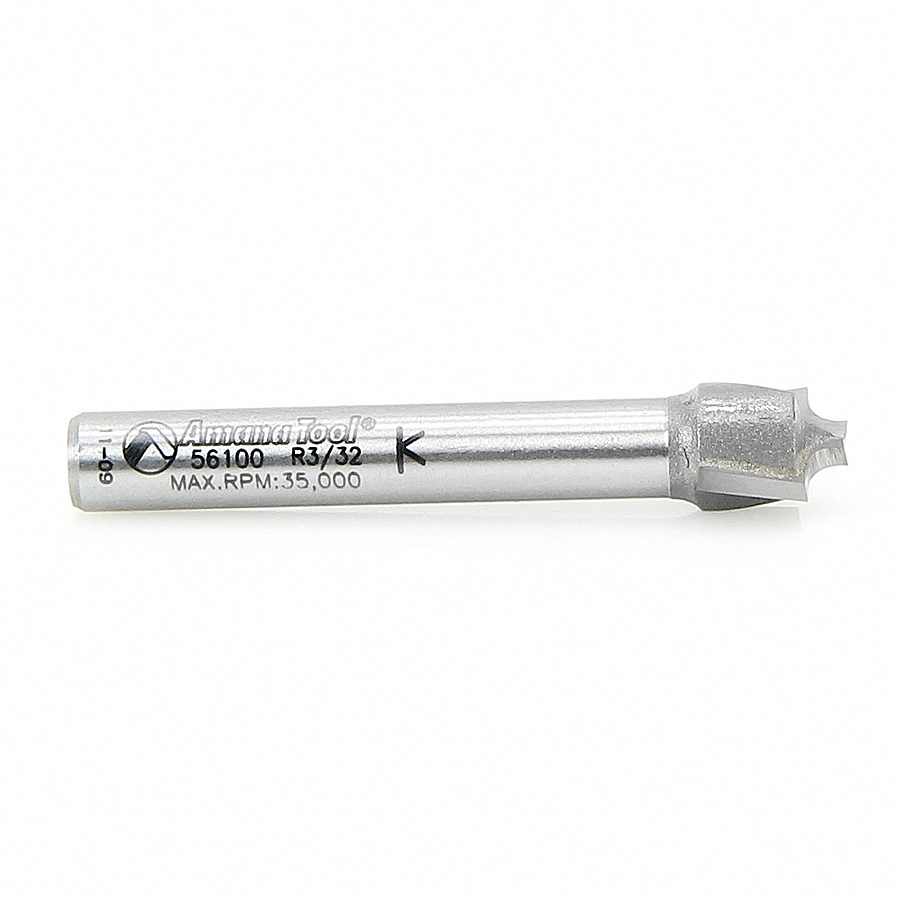

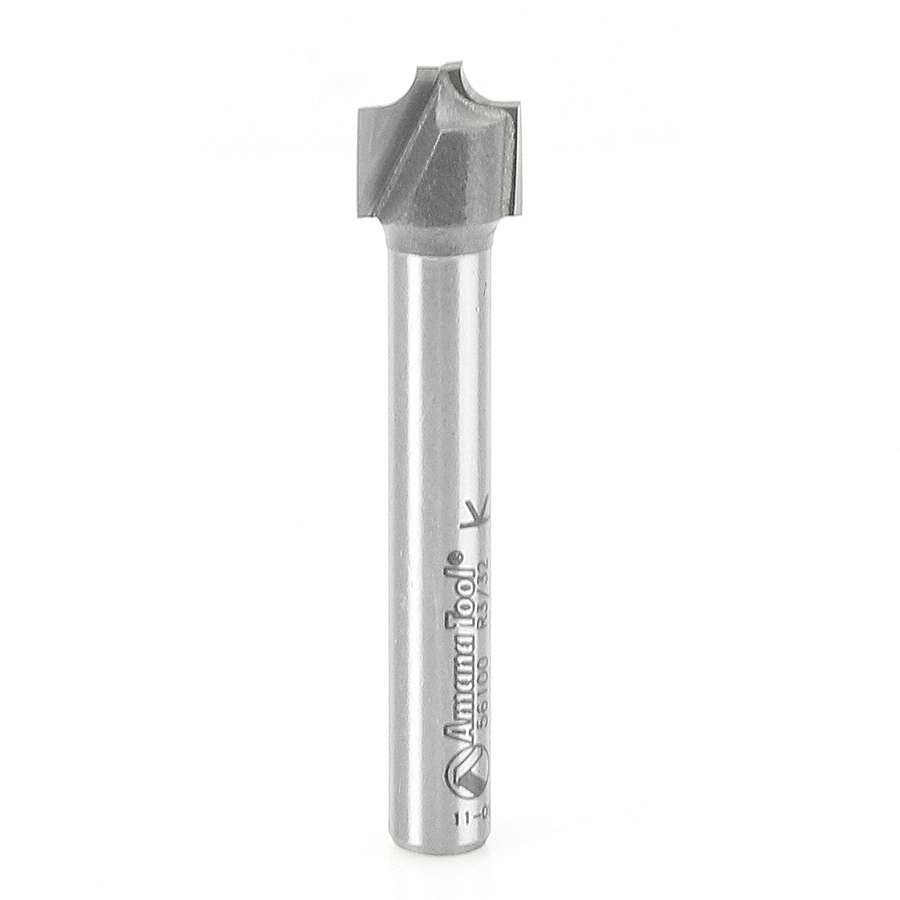

56100 Carbide Tipped Plunge Beading 3/32 Radius x 3/8 Dia x 5/16 x 1/4 Inch Shank

Amana 56100 Carbide Tipped Plunge Beading 3/32 Radius x 3/8 Dia x 5/16 x 1/4 Inch Shank

Name: Amana 56100 Carbide Tipped Plunge Beading 3/32 Radius x 3/8 Dia x 5/16 x 1/4 Inch Shank
SKU: Amana 56100
Availability: InStock

Original price was: $49.05.Current price is: $36.79.

BEADING BIT PLUNGE 1/4 SHANK

UPC: 738685961001 SKU: Amana 56100 Categories: Amana Tool, Beading Groove Router Bits, Grooving Router Bits, Router Bits

Item Description

Quarter-round profiles are formed by this bit as it grooves, one on each side of a flat. Used with a fence or edge guide, this beading bit can be used as an edge former.

Vectric compatible tool file for 56100 available for download,click here.

Specifications

Diameter (D)	25/64
D1	1/8
Radius (R)	3/32
Cutting Height (B)	23/64
B1	1/8
Shank (d)	1/4
Overall Length (L)	1-29/32
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Flutes	Tool No.
1/2 (12.70mm)	1/4 (6.35mm)	1/8 (3.18mm)	3/8 (9.53mm)	1/8 (3.18mm)	1/4 (6.35mm)	1-7/8	2	56170
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/16 (7.94mm)	19/32 (15.08mm)	1/2 (12.70mm)	2-9/16	2	56179
1-1/4	1/2 (12.70mm)	3/8 (9.53mm)	5/16 (7.94mm)	19/32 (15.08mm)	1/2 (12.70mm)	2-9/16	2	56179-CNC

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
