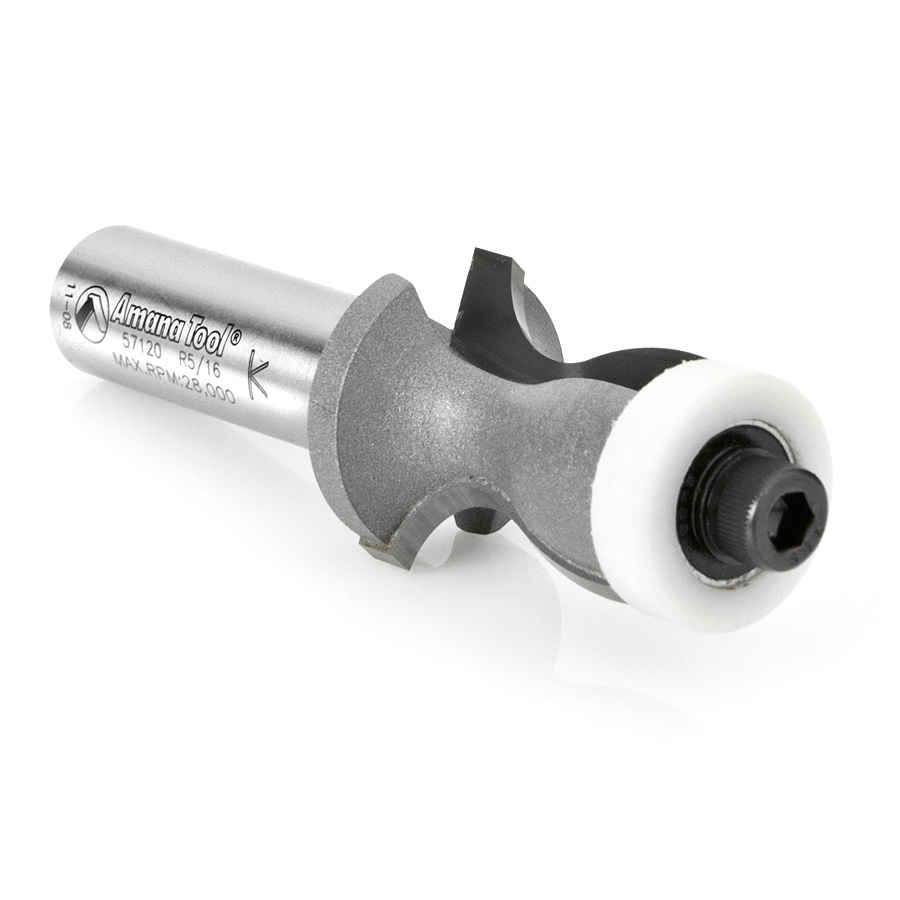

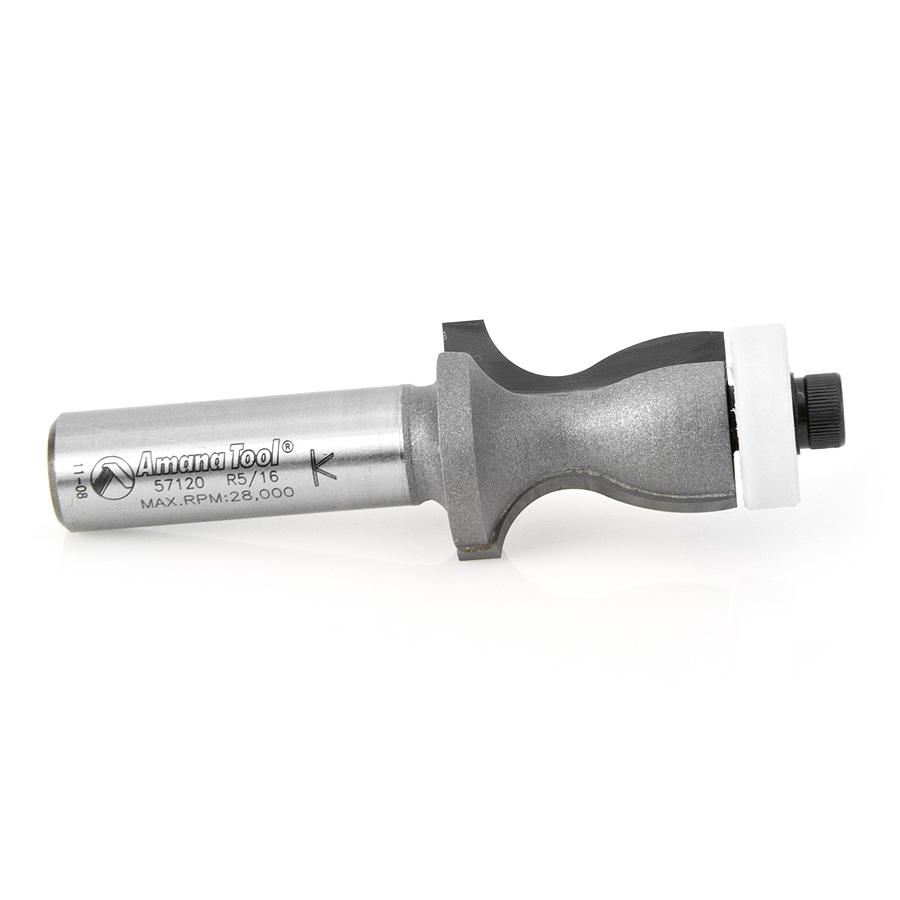

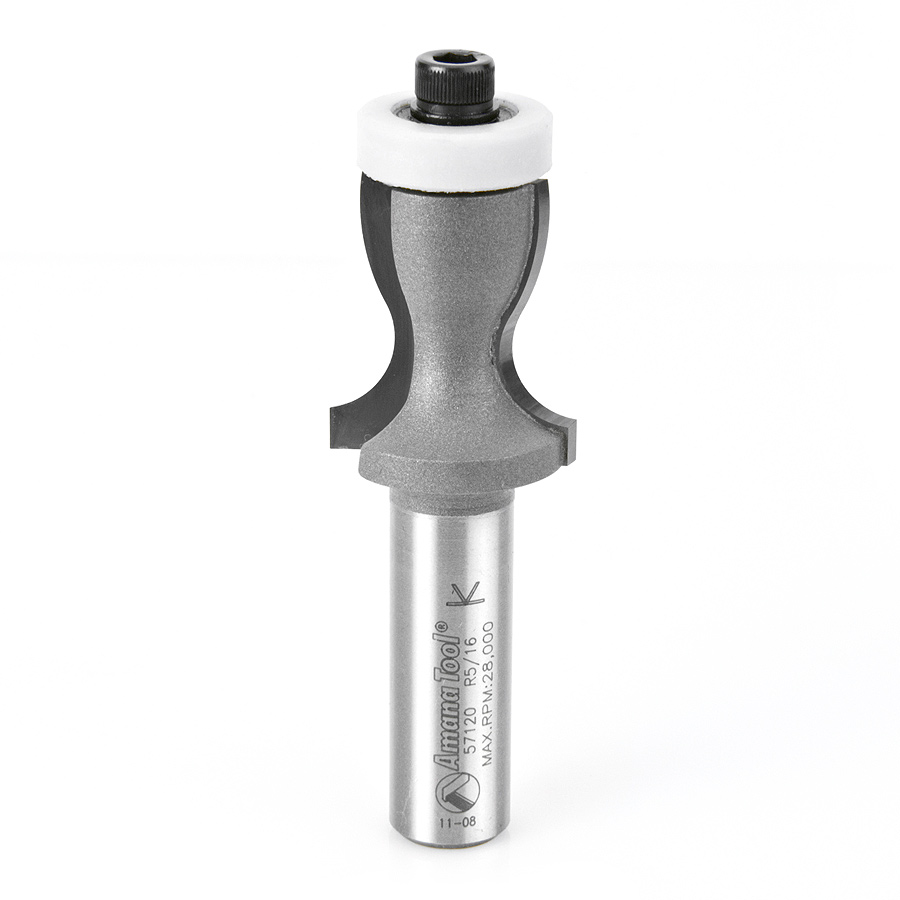

57120 Carbide Tipped Countertop No-Drip with Ultra-Glide Radius Bearing Guide Solid Surface 1 Inch Dia x 1-1/8 x 5/16 Angle x 1/2 Shank

Amana 57120 Carbide Tipped Countertop No-Drip with Ultra-Glide Radius Bearing Guide Solid Surface 1 Inch Dia x 1-1/8 x 5/16 Angle x 1/2 Shank

Name: Amana 57120 Carbide Tipped Countertop No-Drip with Ultra-Glide Radius Bearing Guide Solid Surface 1 Inch Dia x 1-1/8 x 5/16 Angle x 1/2 Shank
SKU: Amana 57120
Availability: InStock

Original price was: $108.90.Current price is: $81.68.

COUNTER TOP BIT 3/4″ STOCK

UPC: 738685971208 SKU: Amana 57120 Categories: Amana Tool, Countertop No-Drip Router Bits, Router Bits, Solid Surface Router Bits

Item Description

This bit will cut a ‘no-drip’ edge on kitchen and vanity counter-tops in one pass. Use in a handheld router.

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
57120	47709	67109	67101

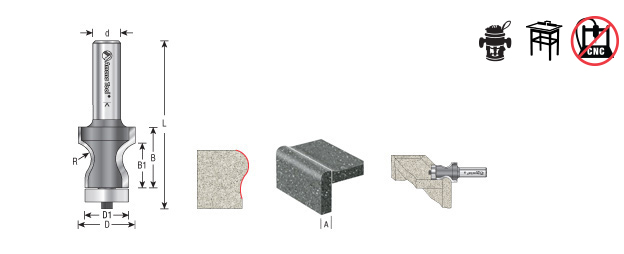

Specifications

Cut Depth (A)	3/4
Diameter (D)	1
D1	3/4
Radius (R)	5/16
Cutting Height (B)	1-1/8
B1	15/16
Shank (d)	1/2
Overall Length (L)	3-1/4
Flutes	2

Other Sizes Available

Diameter (D)	D1	Cut Depth (A)	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
1 (25.40mm)	3/4 (19.05mm)	1/2 (12.70mm)	5/16 (7.94mm)	7/8 (22.23mm)	5/8 (15.88mm)	1/2 (12.70mm)	3 (76.20mm)	57118

Weight	0.22 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
