57156 Carbide Tipped Undermount Bowl Solid Surface 1-25/32 Dia x 11/16 x 17 Deg x 1/2 Inch Shank

Amana 57156 Carbide Tipped Undermount Bowl Solid Surface 1-25/32 Dia x 11/16 x 17 Deg x 1/2 Inch Shank

Name: Amana 57156 Carbide Tipped Undermount Bowl Solid Surface 1-25/32 Dia x 11/16 x 17 Deg x 1/2 Inch Shank
SKU: Amana 57156
Availability: InStock

Original price was: $236.45.Current price is: $177.34.

ROUND OVER DESIGN 3/8″ RADIUS

UPC: 738685971567 SKU: Amana 57156 Categories: Amana Tool, Router Bits, Solid Surface Router Bits, Undermount Bowl Router Bits

Item Description

These bits are designed specifically for use in undermount installations of Corian® bowl #874-S. They trim and profile the counter-top edges after the bowl is mounted.

Replacement Parts

Tool No.	Bearing(s)	Screw
57156	47731	67146

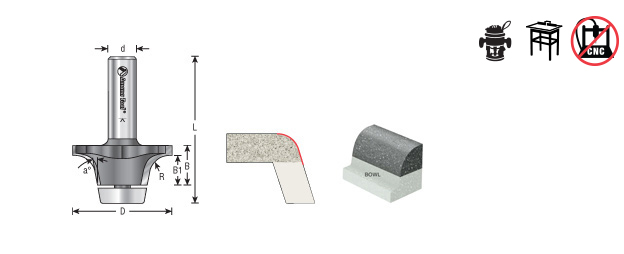

Specifications

Angle (a°)	17°
Diameter (D)	1-25/32
Radius (R)	3/8
Cutting Height (B)	11/16
B1	17/32
Shank (d)	1/2
Overall Length (L)	2-1/2
Type	Round Over
Replacement Bearing	47731
Flutes	2
A	1/2

Other Sizes Available

Angle (a°)	Diameter (D)	Radius (R)	A	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Type	Tool No.
11.5°	1-1/4	–	1/2 & 3/4	1 (25.40mm)	–	1/2 (12.70mm)	3 (76.20mm)	Bevel	57168
14°	2 (50.80mm)	1/2 (12.70mm)	1/2 (12.70mm)	11/16 (17.46mm)	17/32 (13.49mm)	1/2 (12.70mm)	2-1/2	Round Over	57158
17°	2-1/8	1/2 (12.70mm)	3/4 (19.05mm)	1 (25.40mm)	25/32 (19.84mm)	1/2 (12.70mm)	2-7/8	Round Over	57160

Weight	0.36 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
