59400 Solid Carbide V Groove Engraving 60 Deg x 1/4 Dia x 0.560 x 1/4 Inch Shank

Amana 59400 Solid Carbide V Groove Engraving 60 Deg x 1/4 Dia x 0.560 x 1/4 Inch Shank

Name: Amana 59400 Solid Carbide V Groove Engraving 60 Deg x 1/4 Dia x 0.560 x 1/4 Inch Shank
SKU: Amana 59400
Availability: InStock

Original price was: $42.30.Current price is: $31.73.

SC V GROOVE 60D 1/4″ DIAMETER

UPC: 738685594001 SKU: Amana 59400 Categories: Amana Tool, Router Bits, Signmaking Router Bits, Solid Carbide Engraving Router Bits for Signmaking Tag: Engraving

Item Description

For fine-line “engraving” in wood and composite materials, use either of these compact bits. Two-flute configuration and modest length (which minimizes vibration) combine to produce crisp, clean cuts.

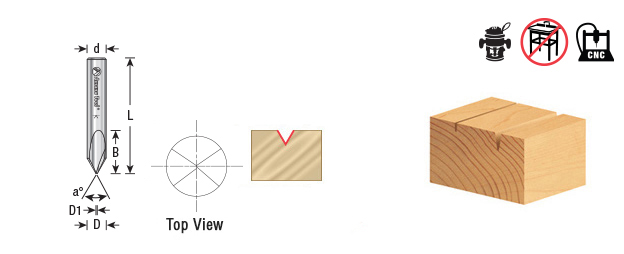

Specifications

Angle (a°)	60°
Diameter (D)	1/4
D1	0.017
Cutting Height (B)	0.560
Shank (d)	1/4
Overall Length (L)	1-1/2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
15°	1/4 (6.35mm)	0.0625"0.06	21/32 (16.67mm)	1/4 (6.35mm)	2-1/2	45627
15°	1/4 (6.35mm)	0.020"0.02	0.666"0.67	1/4 (6.35mm)	2-1/2	45628
15°	3/16 (4.76mm)	0.07"0.07	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	45780
60°	1/4 (6.35mm)	1/32 (0.79mm)	13/32 (10.32mm)	1/4 (6.35mm)	2 (50.80mm)	45782

Weight	0.04 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
