Sale!

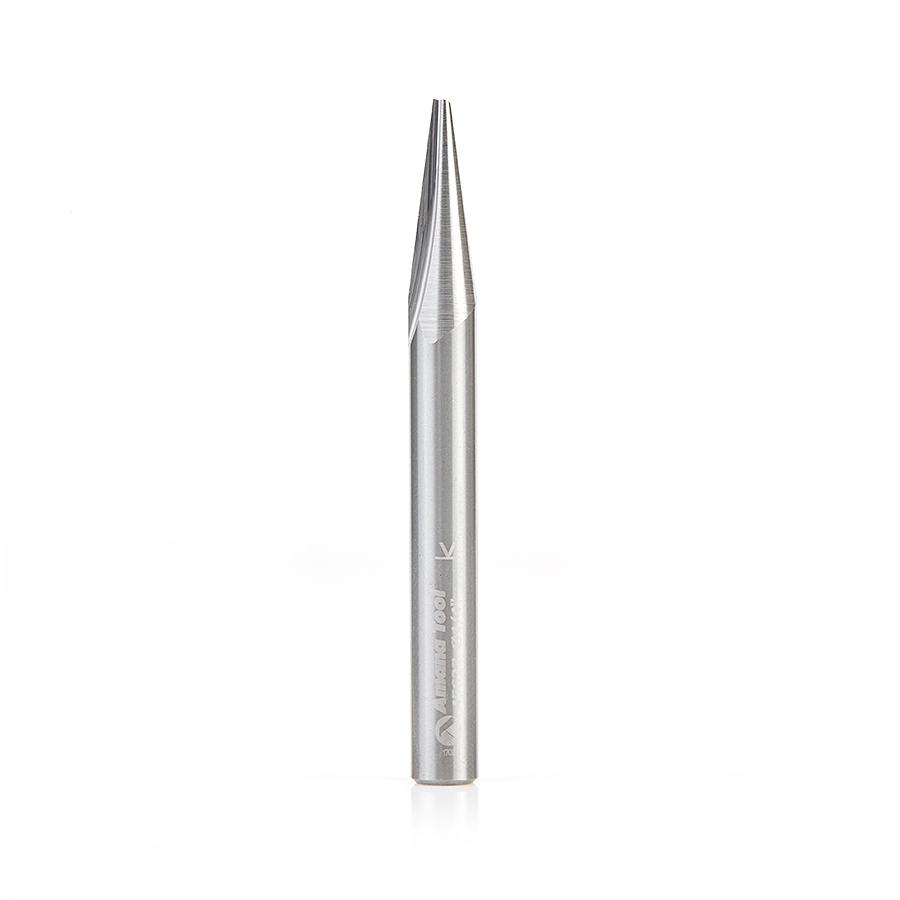

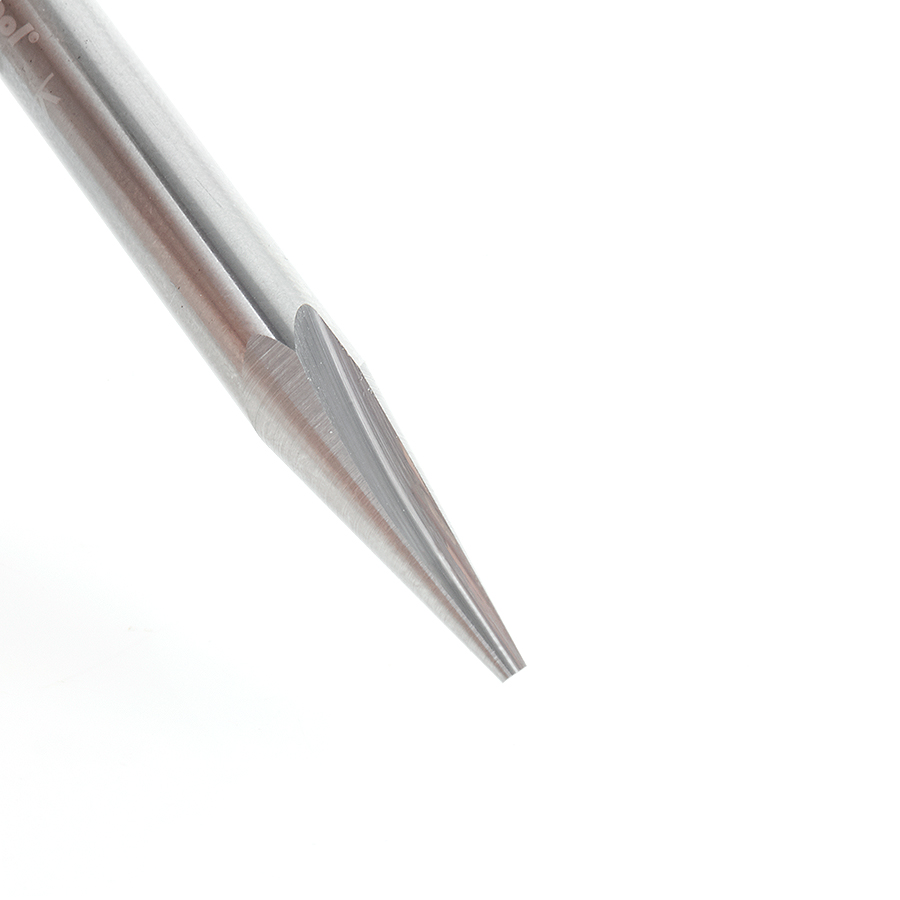

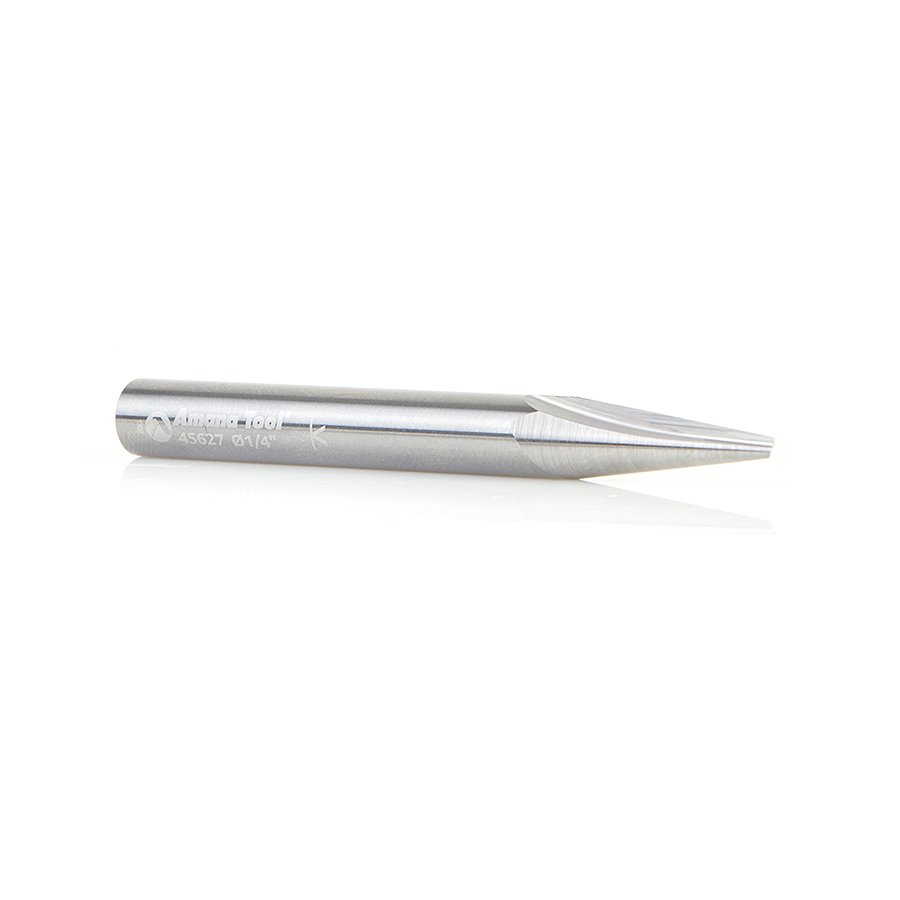

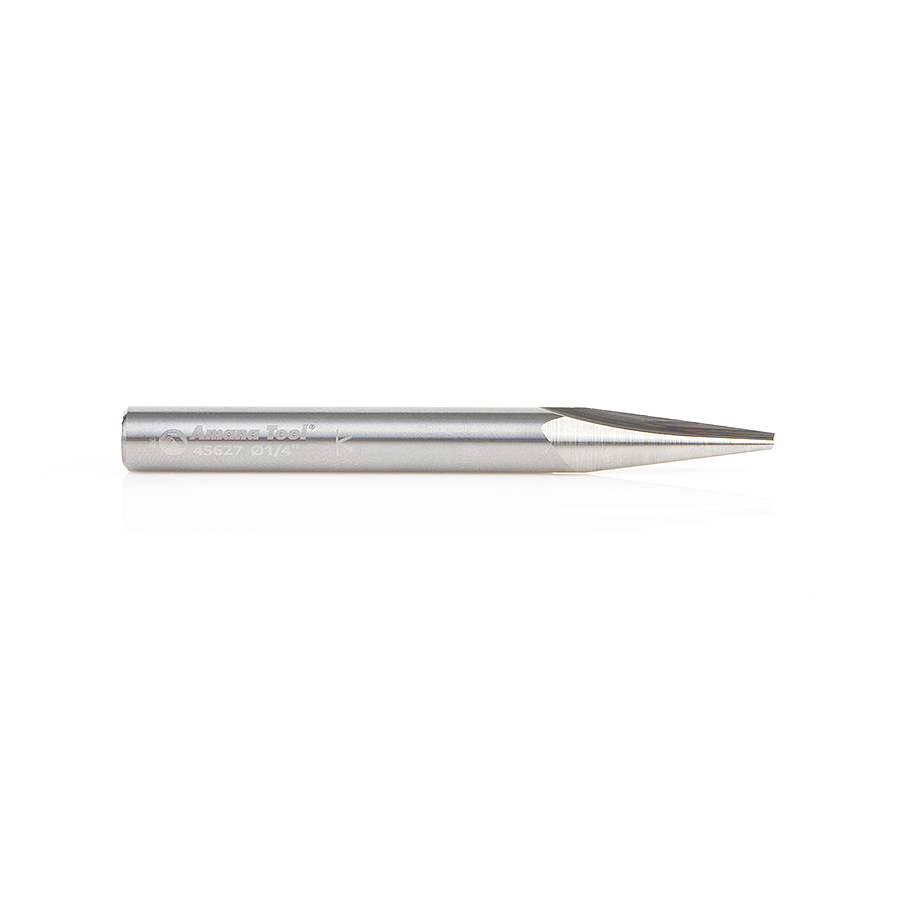

45627 Solid Carbide V Groove Engraving 15 Deg x 1/4 Dia x 21/32 x 1/4 Inch Shank

Amana 45627 Solid Carbide V Groove Engraving 15 Deg x 1/4 Dia x 21/32 x 1/4 Inch Shank

Name: Amana 45627 Solid Carbide V Groove Engraving 15 Deg x 1/4 Dia x 21/32 x 1/4 Inch Shank
SKU: Amana 45627
Availability: InStock

Original price was: $54.25.Current price is: $40.69.

1/16″TIP 15D ENGRAVING 1/4″DIA

UPC: 738685456279 SKU: Amana 45627 Categories: Amana Tool, Router Bits, Signmaking Router Bits, V Groove Router Bits

Item Description

For fine-line “engraving” in wood and composite materials, use either of these compact bits. Two-flute configuration and modest length (which minimizes vibration) combine to produce crisp, clean cuts.

Vectric compatible tool file for 45627 available for download,click here.

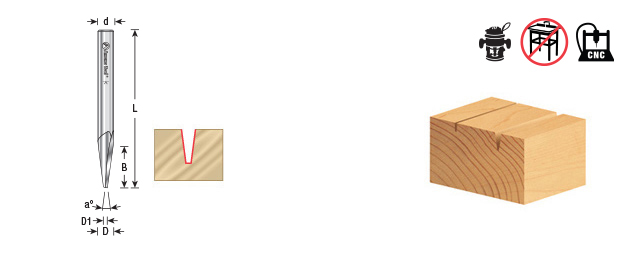

Specifications

Angle (a°)	15°
Diameter (D)	1/4
D1	0.0625"
Cutting Height (B)	21/32
Shank (d)	1/4
Overall Length (L)	2-1/2
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
15°	1/4 (6.35mm)	0.020"0.02	0.666"0.67	1/4 (6.35mm)	2-1/2	45628
15°	3/16 (4.76mm)	0.07"0.07	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	45780
60°	3/8 (9.53mm)	.030"0.03	5/8 (15.88mm)	3/8 (9.53mm)	3 (76.20mm)	45635
60°	1/2 (12.70mm)	.040"0.04	5/8 (15.88mm)	1/2 (12.70mm)	3 (76.20mm)	45636
60°	1/4 (6.35mm)	1/32 (0.79mm)	13/32 (10.32mm)	1/4 (6.35mm)	2 (50.80mm)	45782
60°	1/4 (6.35mm)	0.017 (0.51mm)	0.560 (14.22mm)	1/4 (6.35mm)	1-1/2	59400
90°	3/8 (9.53mm)	.036"0.04	5/8 (15.88mm)	3/8 (9.53mm)	3 (76.20mm)	45637

Weight	0.06 lbs
