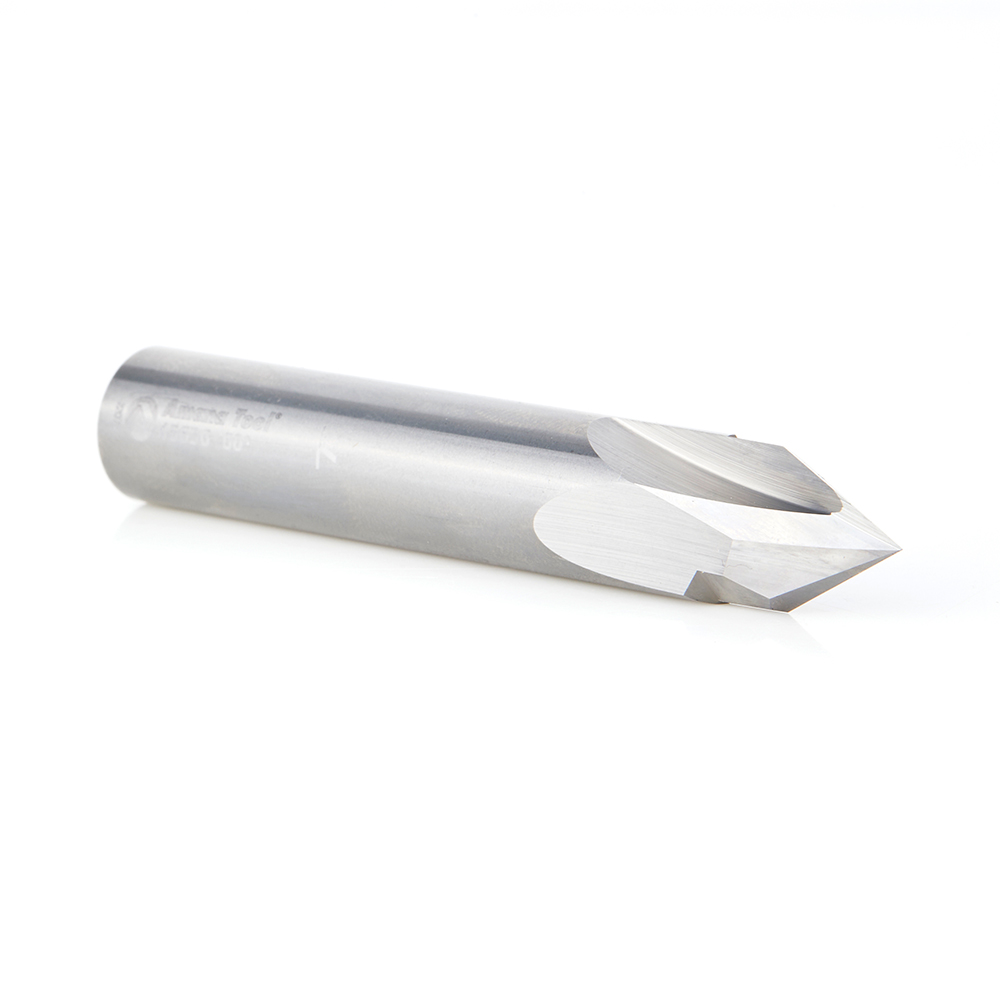

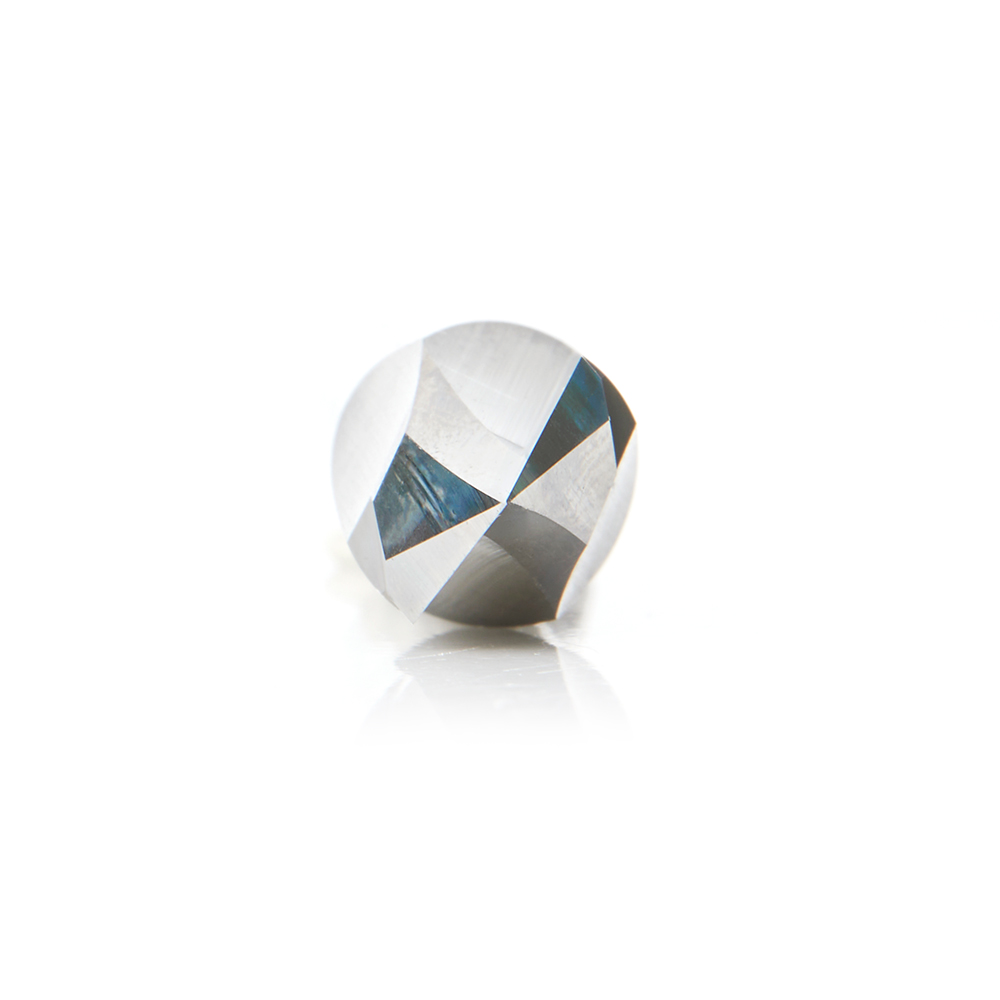

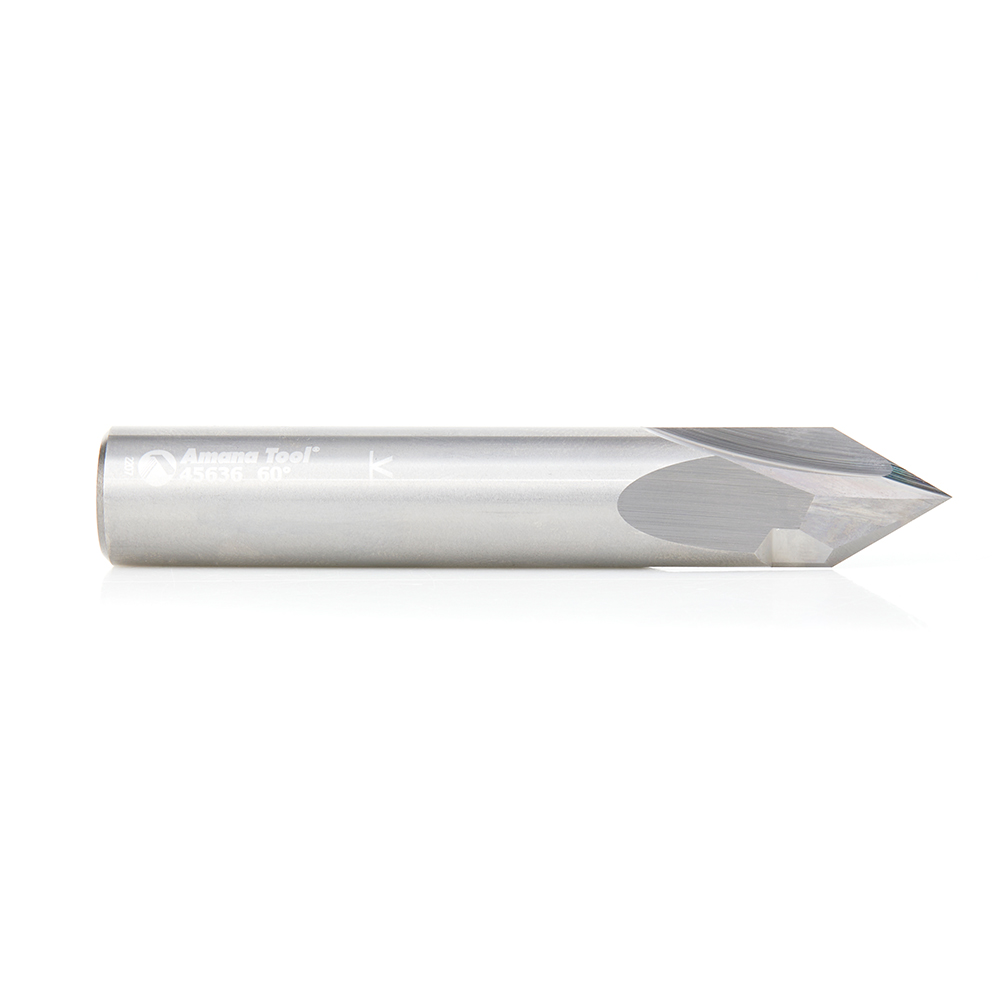

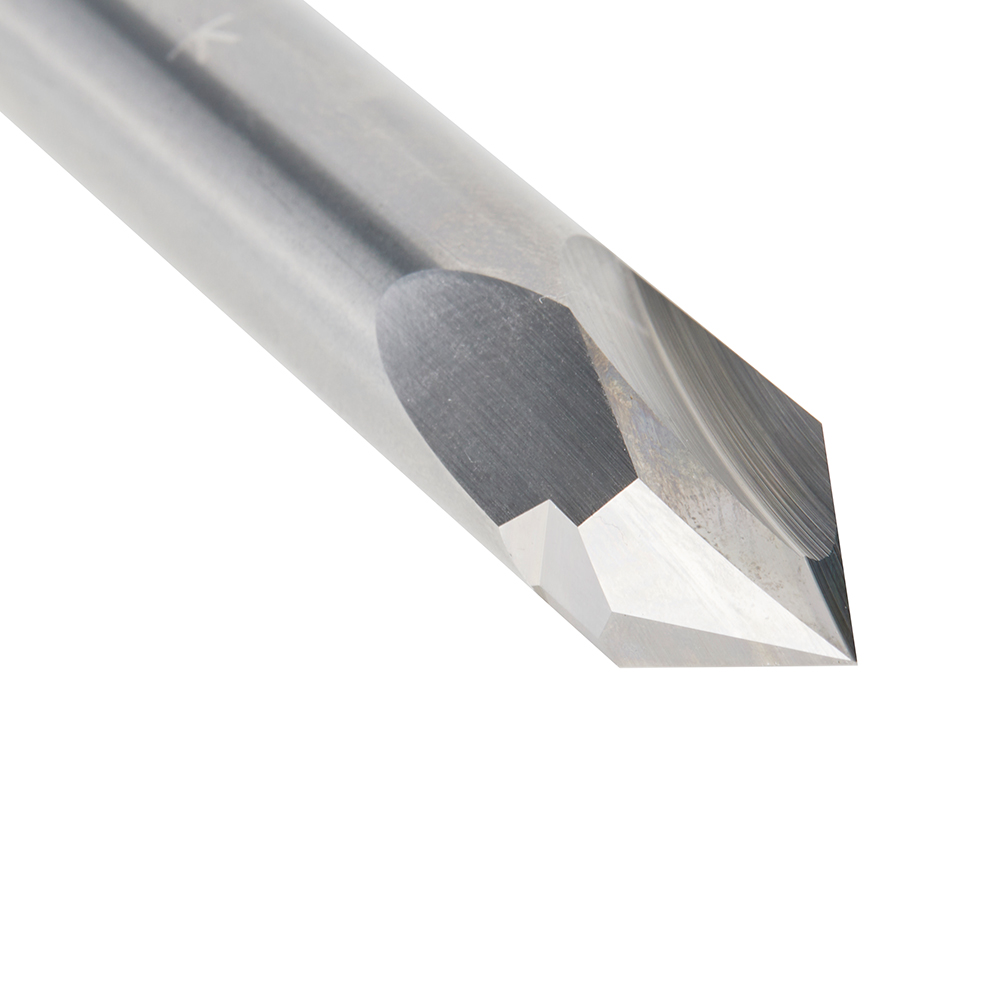

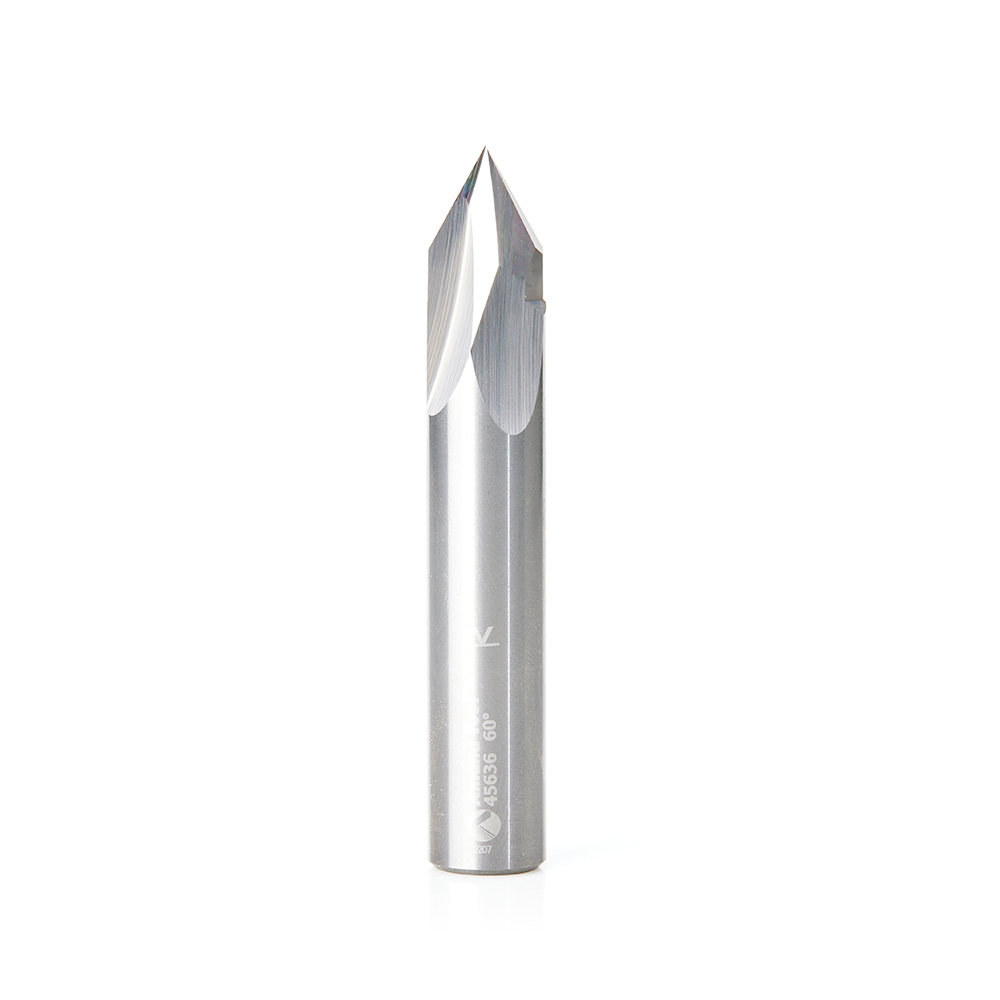

45636 Solid Carbide V Groove Engraving 60 Deg x 1/2 Dia x 5/8 x 1/2 Inch Shank

Amana 45636 Solid Carbide V Groove Engraving 60 Deg x 1/2 Dia x 5/8 x 1/2 Inch Shank

Name: Amana 45636 Solid Carbide V Groove Engraving 60 Deg x 1/2 Dia x 5/8 x 1/2 Inch Shank
SKU: Amana 45636
Availability: InStock

Original price was: $152.90.Current price is: $114.68.

60D V GROOVE 2FL 1/2″Dx1/2″SHK

UPC: N/A SKU: Amana 45636 Categories: Amana Tool, Router Bits, Signmaking Router Bits, V Groove Router Bits

Item Description

For fine-line “engraving” in wood and composite materials, use either of these compact bits. Two-flute configuration and modest length (which minimizes vibration) combine to produce crisp, clean cuts.

Specifications

Angle (a°)	60°
Diameter (D)	1/2
D1	.040"
Cutting Height (B)	5/8
B1	1/2"
Shank (d)	1/2
Overall Length (L)	3
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
15°	1/4 (6.35mm)	0.0625"0.06	21/32 (16.67mm)	1/4 (6.35mm)	2-1/2	45627
15°	1/4 (6.35mm)	0.020"0.02	0.666"0.67	1/4 (6.35mm)	2-1/2	45628
15°	3/16 (4.76mm)	0.07"0.07	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	45780
60°	3/8 (9.53mm)	.030"0.03	5/8 (15.88mm)	3/8 (9.53mm)	3 (76.20mm)	45635
60°	1/4 (6.35mm)	0.017 (0.51mm)	0.560 (14.22mm)	1/4 (6.35mm)	1-1/2	59400
90°	3/8 (9.53mm)	.036"0.04	5/8 (15.88mm)	3/8 (9.53mm)	3 (76.20mm)	45637

Weight	0.28 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
