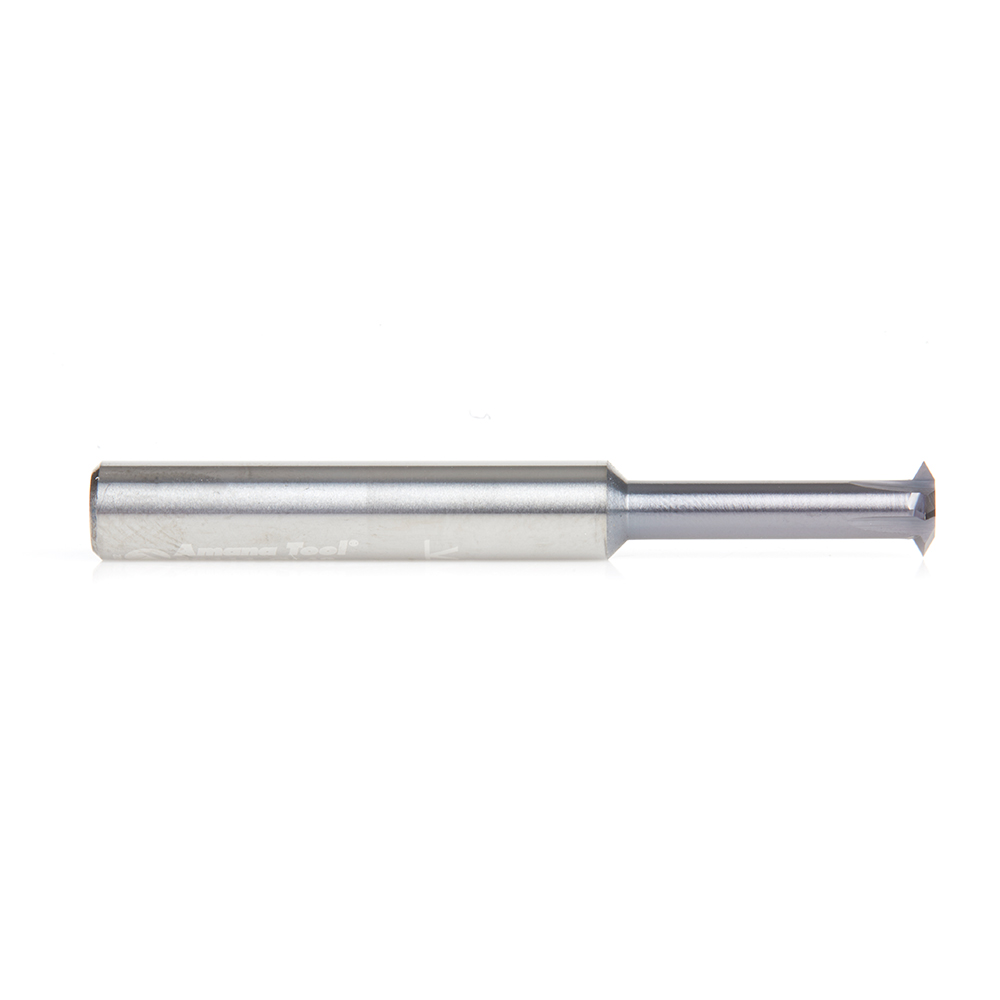

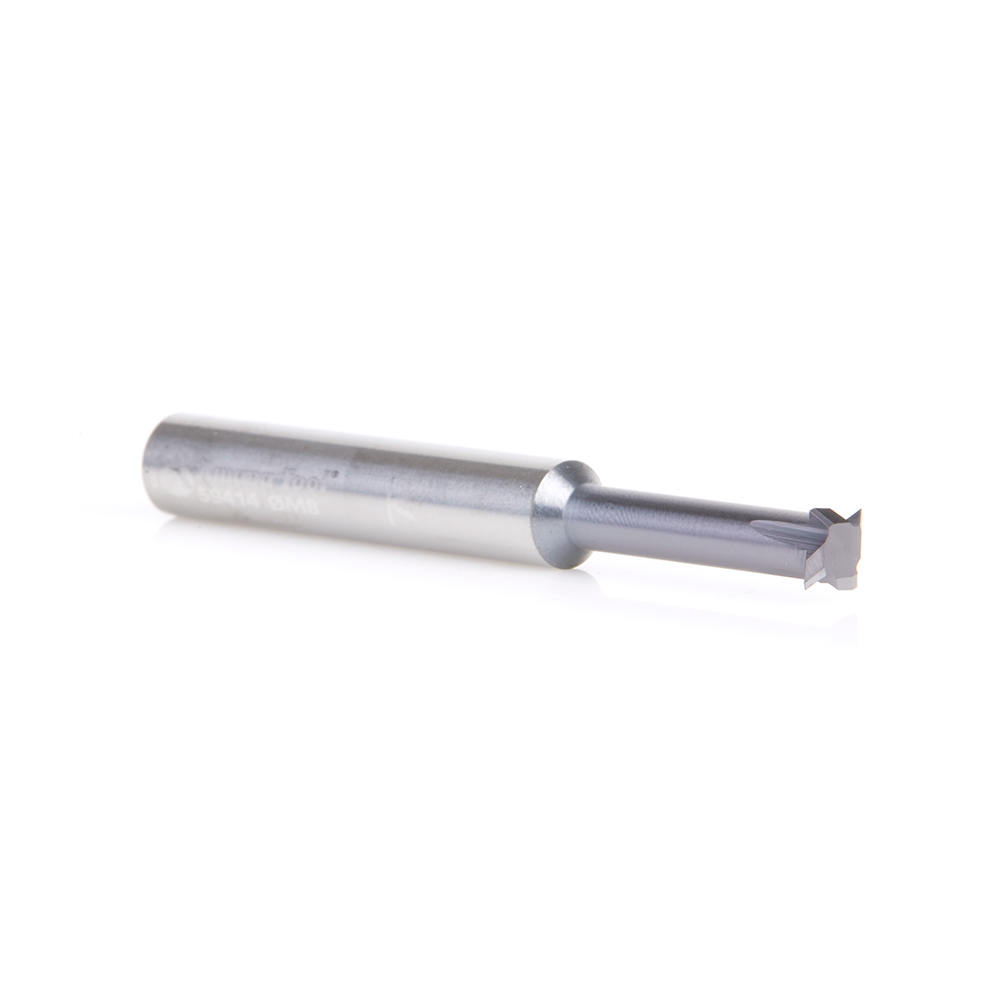

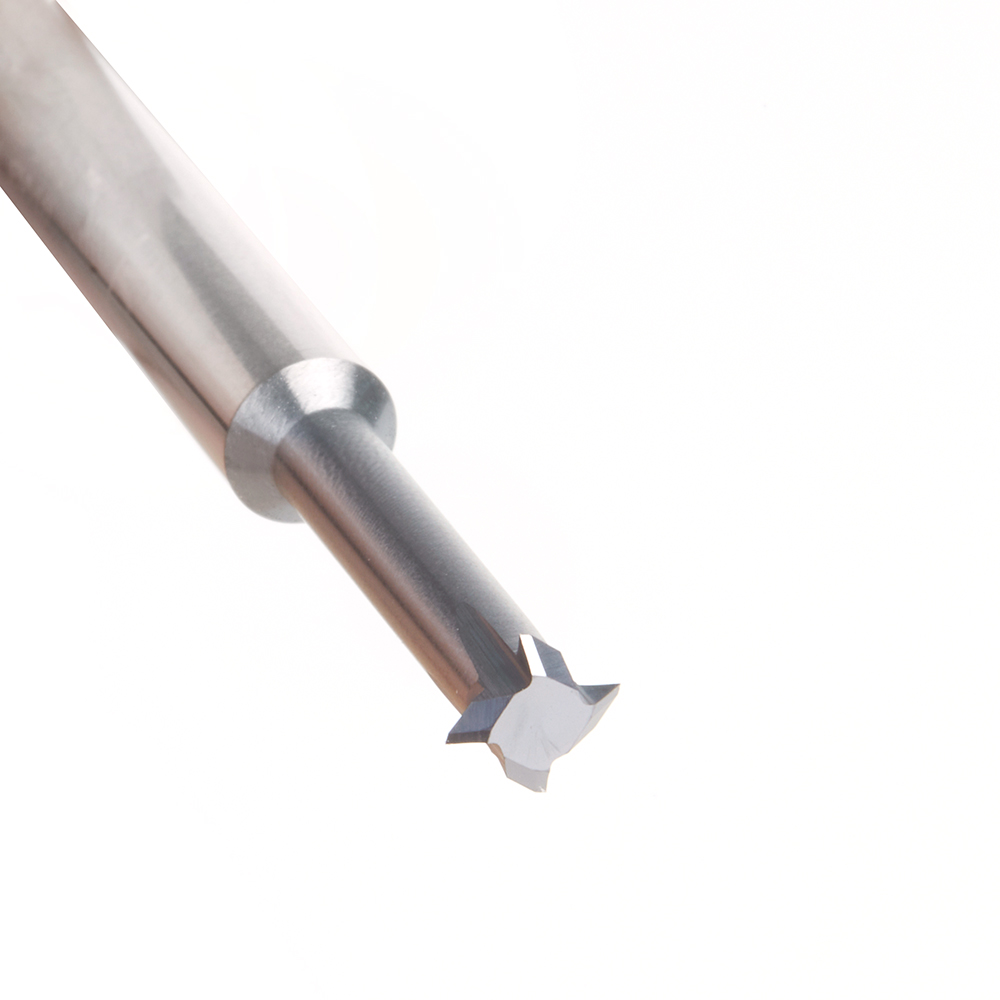

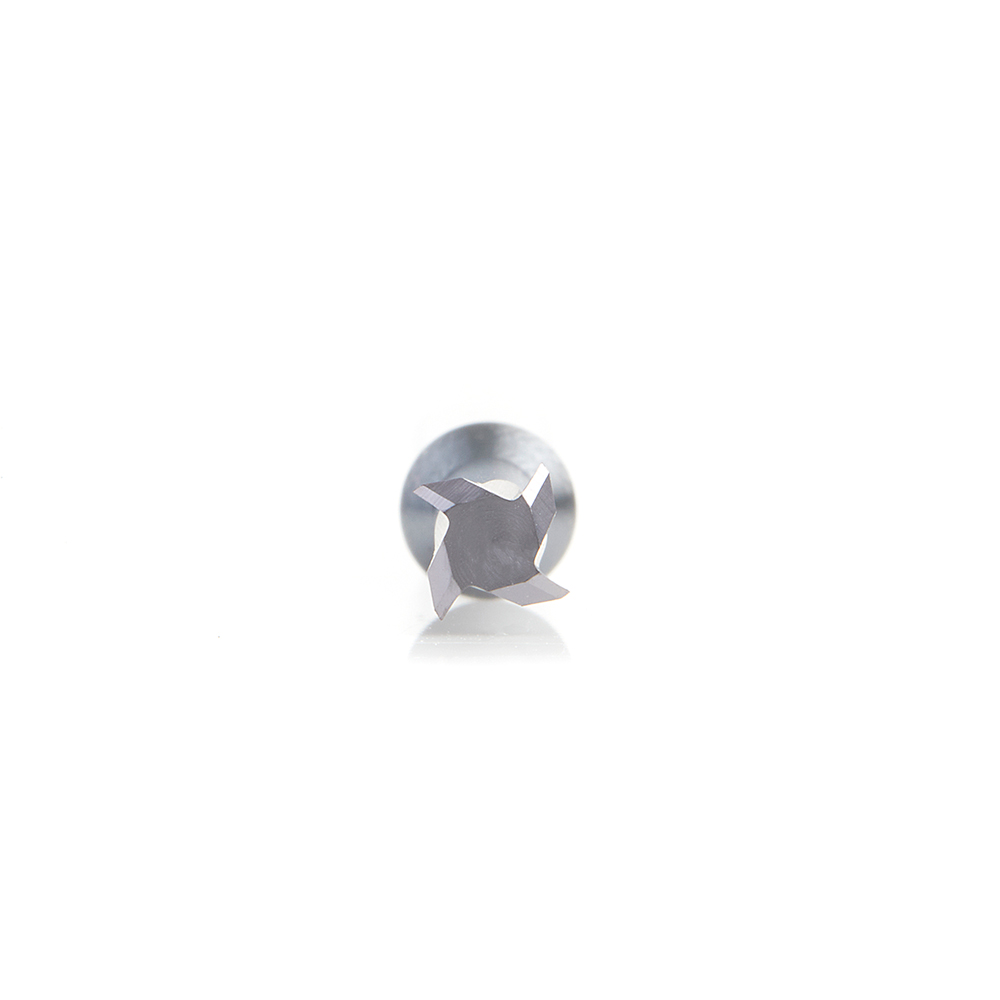

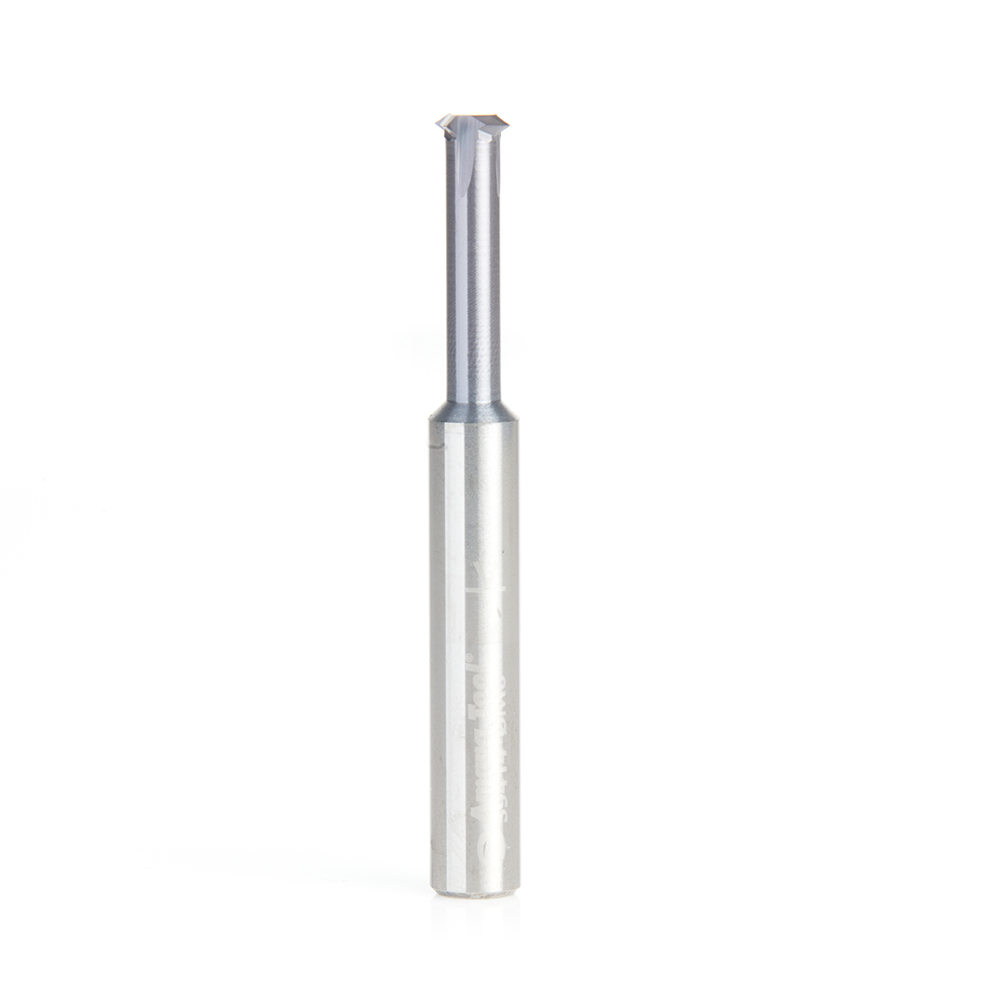

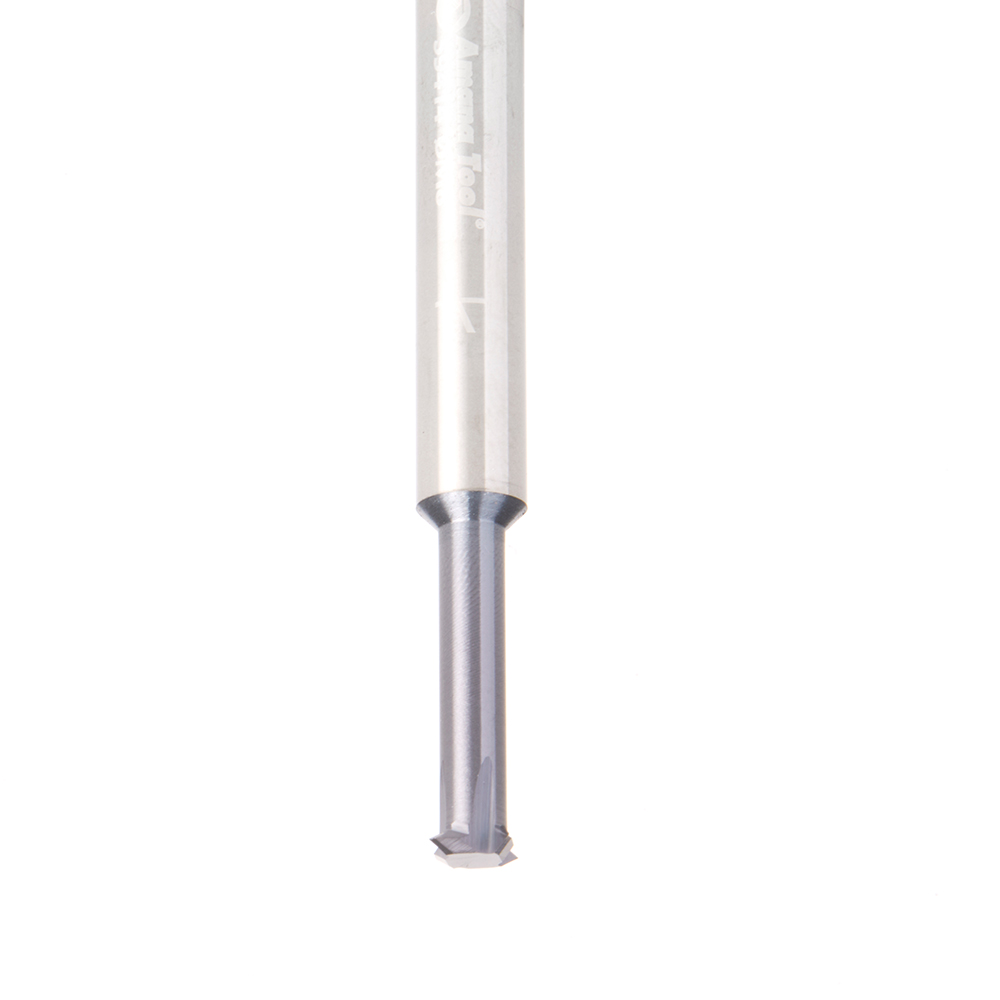

59414 CNC Solid Carbide Single Form Threadmill 6mm Dia x 18mm x 6mm Shank AlTiN Coated

Amana 59414 CNC Solid Carbide Single Form Threadmill 6mm Dia x 18mm x 6mm Shank AlTiN Coated

Name: Amana 59414 CNC Solid Carbide Single Form Threadmill 6mm Dia x 18mm x 6mm Shank AlTiN Coated
SKU: Amana 59414
Availability: InStock

Original price was: $116.75.Current price is: $87.57.

M8 SINGLE THREADMILL / AlTiN

UPC: 738685594148 SKU: Amana 59414 Categories: Amana Tool, CNC Router Bits, Solid Carbide Single Form Threadmills, Threadmills

Item Description

Tool is designed to cut internal and external and can mill mulitple pitches.

Cuts internal and external 60º UN threads
Tip of included angle ground to a point

Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity, either in terms of speed or longevity, with or without coolant.

Not for use in handheld drills or handheld routers.

Metric Thread Pitch

Bolt Diameter – Standard Thread Pitch

M5 – .8mm

M6 – 1.0mm

M8 – 1.25mm

M10 – 1.5mm

Excellent for cutting:

Stainless Steel
Steel
Titanium
Cast Iron

Also for cutting:

Aluminum/Non-Ferrous Materials
Acrylic/Plastic

AlTiN Coating Benefits:

Extra wear resistance
Allows for faster feed and speed rates
Cutting edge protected from wear
Better chip evacuation
Less heat build up
Superior cutting quality and extended tool life

WARNING**:****Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

**WARNING**:********Must have a CNC machine and the software to accept the programming needed to utilize helical circular interpolation.

Note:** For optimal results and extended tool life use mist lubricant system or air cooling.

Instruction Manuals

### Threadmill-Offset-Dimensions

Download PDF

Specifications

Thread	M8
(D) Diameter	6mm
D1	3.6mm
(B) Cutting Height	18mm
B1	1.39mm
(d) Shank	6mm
Overall Length (L)	50mm
Flutes	4

Other Sizes Available

(D) Diameter	D1	(B) Cutting Height	B1	(d) Shank	Overall Length (L)	Flutes	Thread	Tool No.
4mm	2.4mm	12mm	0.92mm	4mm	50mm	4	M5	59410
0.18"0.18	0.115"0.12	1 (25.40mm)	0.038"0.04	1/4 (6.35mm)	2-1/2	4	1/4 (6.35mm)	59402
0.24"0.24	0.160"0.16	1 (25.40mm)	0.046"0.05	1/4 (6.35mm)	2-1/2	4	5/16 (7.94mm)	59404
8mm	4.8mm	24mm	1.85mm	8mm	63mm	4	M10	59416

Weight	0.04 lbs
