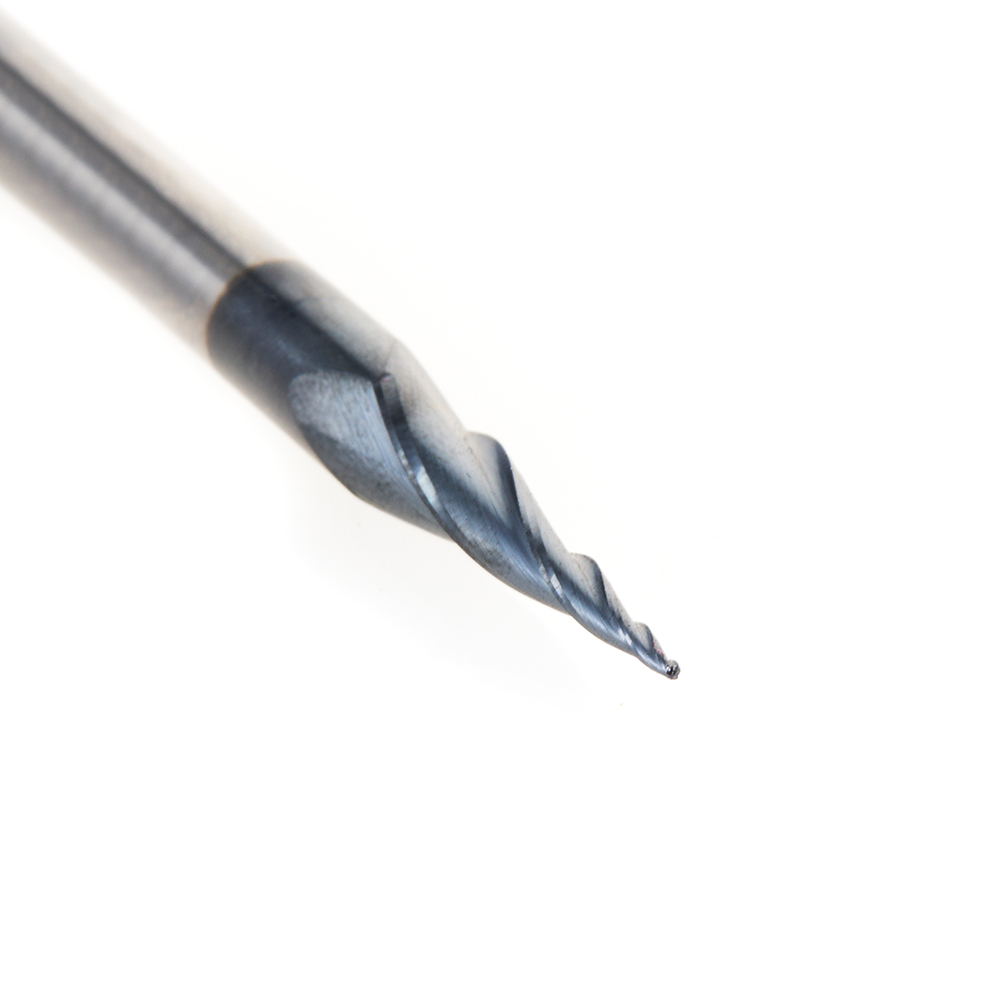

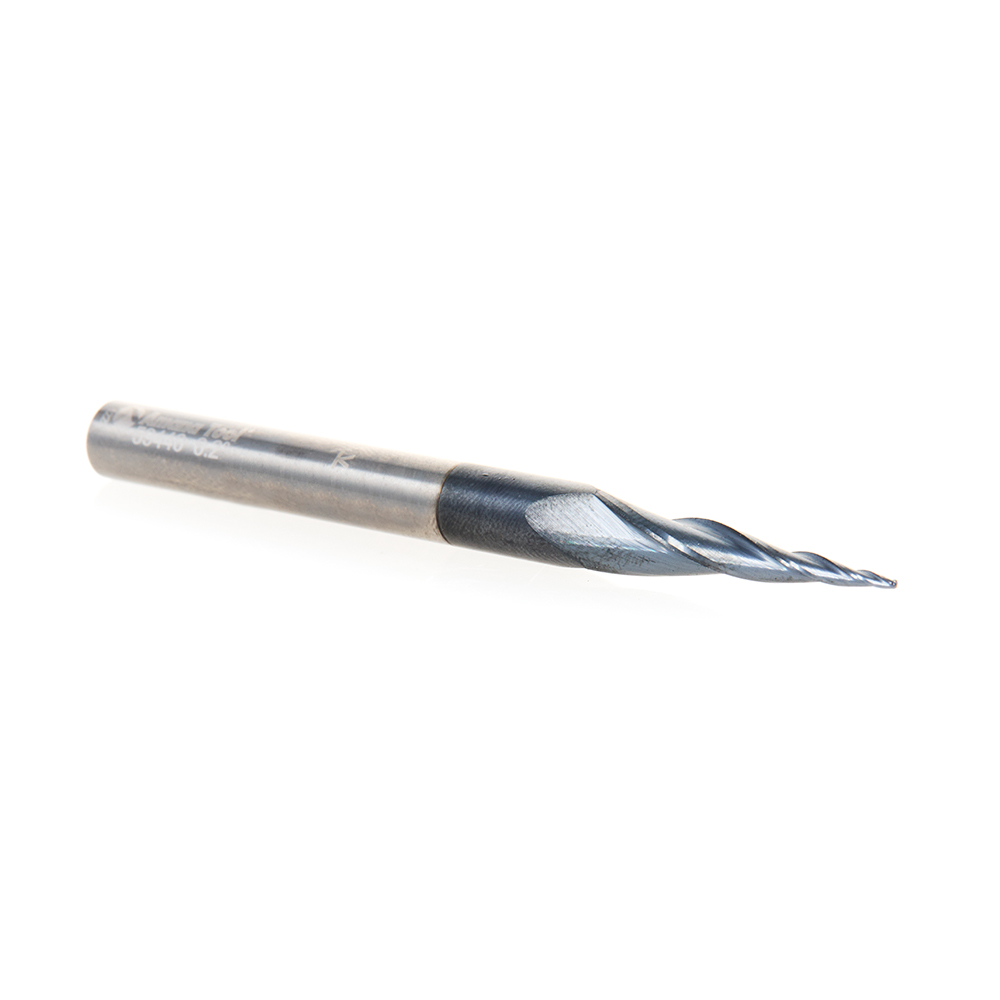

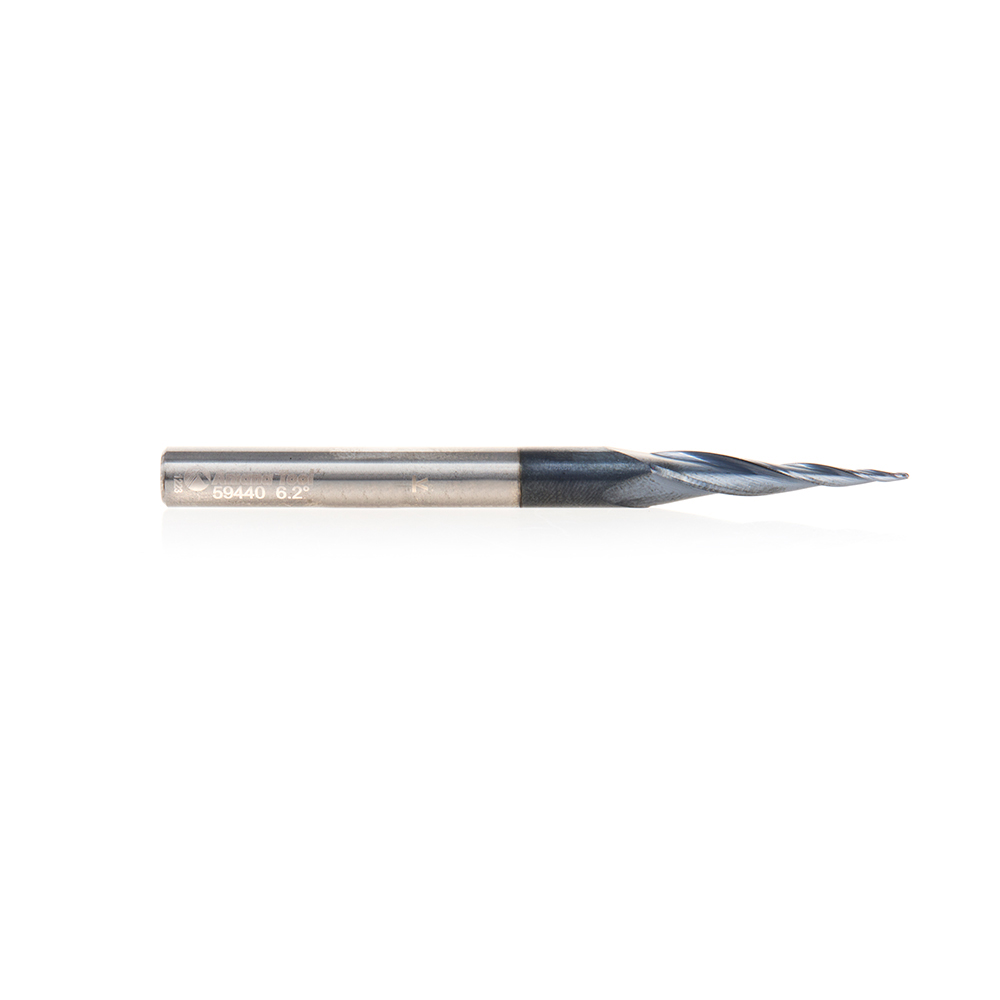

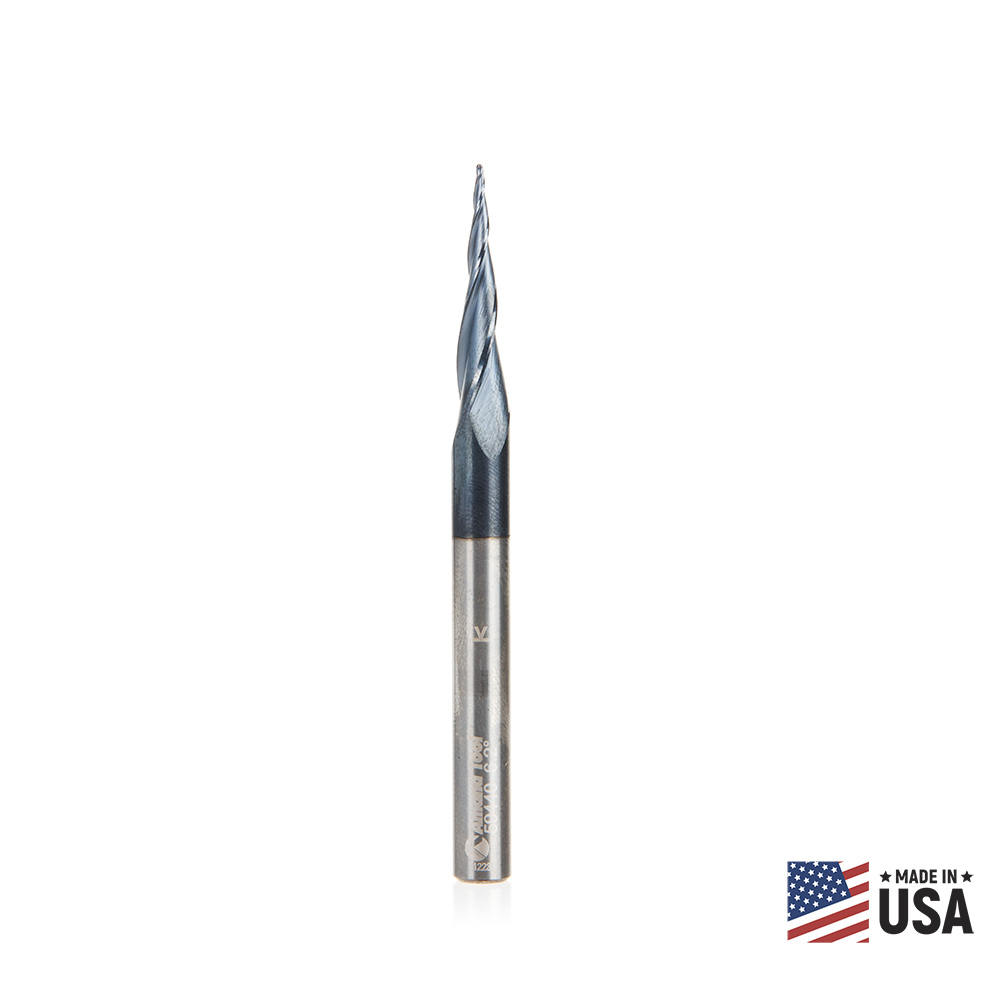

59440 Solid Carbide CNC 2D/3D Carving Steel, Stainless Steel & Composite Cutting Tapered Ball Nose with AlTiN Coating 3-Flute x 6.2 Deg x 1/64 Radius 1/32 Dia x 1 x 1/4 Shank x 3 Inch Long Up-Cut Router Bit

Amana 59440 Solid Carbide CNC 2D/3D Carving Steel, Stainless Steel & Composite Cutting Tapered Ball Nose with AlTiN Coating 3-Flute x 6.2 Deg x 1/64 Radius 1/32 Dia x 1 x 1/4 Shank x 3 Inch Long Up-Cut Router Bit

Name: Amana 59440 Solid Carbide CNC 2D/3D Carving Steel, Stainless Steel &amp; Composite Cutting Tapered Ball Nose with AlTiN Coating 3-Flute x 6.2 Deg x 1/64 Radius 1/32 Dia x 1 x 1/4 Shank x 3 Inch Long Up-Cut Router Bit
SKU: Amana 59440
Availability: InStock

Original price was: $115.35.Current price is: $86.52.

1/32 SC TAPERED BALL END AlTiN

UPC: N/A SKU: Amana 59440 Categories: Amana Tool, CNC 2D/3D Carving Tapered Ball Nose with AlTin Coating, CNC Router Bits, Steel Cutting CNC Router Bits

Item Description

Specially designed for 2D and 3D CNC profiling and carving in steel and stainless steel with CNC. The ability to CNC machine a range of radiused profiles in both ferrous and non-ferrous materials.

Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity either in terms of speed or longevity with or without coolant.

Excellent for cutting:

Stainless Steel
Steel
Cast Iron
Composites

Metal Composite Material (MCM)
Plastics
Hardened Alloy Steels
Titanium (up to 40HRc Hardness)

AlTiN coating has many benefits:

Extra wear resistance
Allows for faster feed and speed rates
Cutting edge protected from wear
Better chip evacuation
Less heat build up
Superior cutting quality and extended tool life

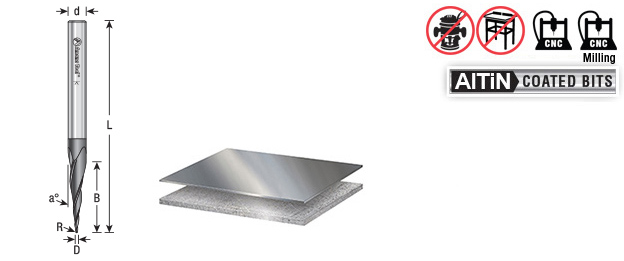

Specifications

(a°) Angle	6.2°
(D) Diameter	1/32
(R) Radius	1/64
(B) Cutting Height	1
(d) Shank	1/4
Overall Length (L)	3
Type	Ball Nose
Flutes	3

Other Sizes Available

(R) Radius	(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Type	Tool No.
1/32 (0.79mm)	1/16 (1.59mm)	1-1/16	1/4 (6.35mm)	3 (76.20mm)	Ball Nose	59442
1/16 (1.59mm)	1/8 (3.18mm)	1-1/2	1/4 (6.35mm)	3 (76.20mm)	Ball Nose	59444

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
