Sale!

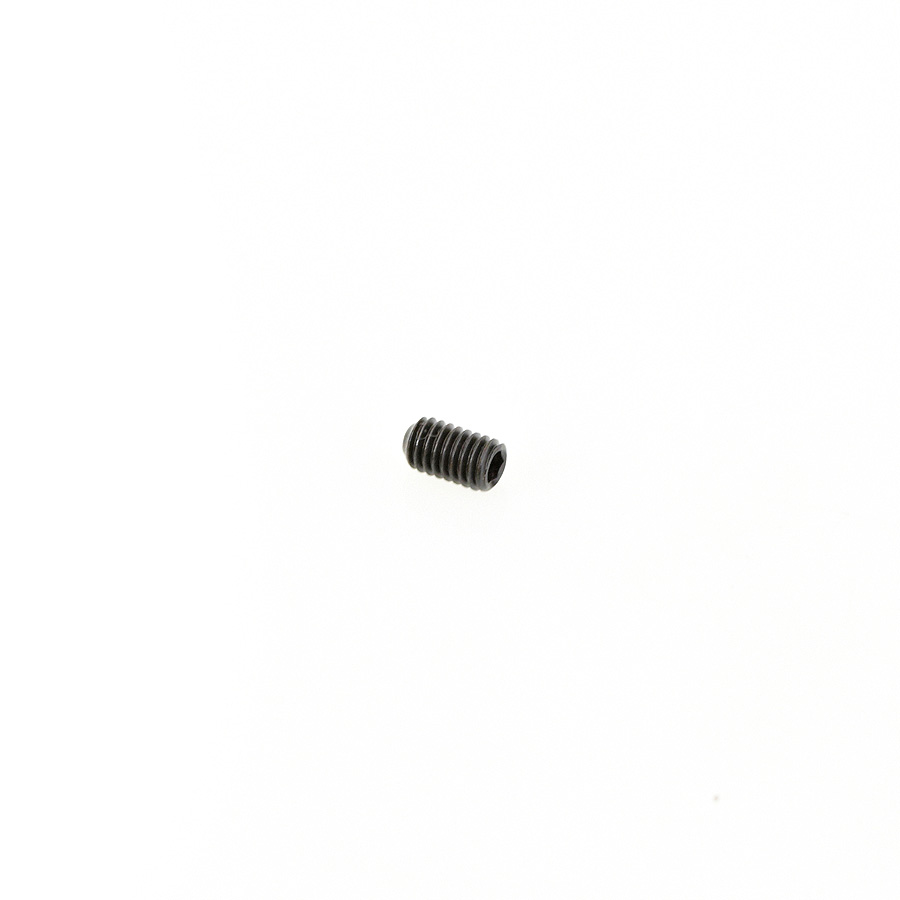

Amana 67016 Allen Type Set Screw 3 x 5mm

Original price was: $2.95.Current price is: $2.22.

REP. KNIFE SET SCREW RC-3200

UPC: 738685966068 SKU: Amana 67016 Categories: Allen-Type, Flat-Top, Cup-Point & Hex screws, Amana Tool, Router Bit Parts & Accessories, Router Bits

Specifications

Type	3 x 5mm Special (FP)
Use w/ Key Size	1.5mm (#5000)
Application	RC-3200 & 3110

Other Sizes Available

Application	Type	Use w/ Key Size	Tool No.
Boring	5mm x .8mm (FP)5mm x .8mm (FP)	S/D	67007
Rosette	6mm x 1.0mm (FP)6mm x 1.0mm (FP)	3mm	67008
In-Tech™	M3x4mm	–	67013
RC-3100	3 x 4mm Special (FP)3 x 4mm Special (FP)	1.5mm	67015
3307	3 x 6mm Special (FP)3 x 6mm Special (FP)	1.5mm	67017
82°	1/4 x 1/4 Hex Screw	–	67070
Metric	6mm x 1.0mm (CP)6mm x 1.0mm (CP)	3.0mm	67079
1	6mm x 1.0mm (FP)6mm x 1.0mm (FP)	3.0mm	67083
Metric	5mm x .8mm (CP)5mm x .8mm (CP)	2.5mm	67087
47724-730	#5-40 NC (CP)#5-40 NC (CP)#5-40 NC (CP)#5-40 NC (CP)	1/16	67091
#55	#10-24 NC (CP)#10-24 NC (CP)#10-24 NC (CP)#10-24 NC (CP)	3/32	67092
Metric	5mm x .8mm (FP)5mm x .8mm (FP)	2.5mm	67097
In-Tech™	#5-40 X 3/8" NC Flat Top#5-40 X 3/8#5-40 X 3/8#5-40 X 3/8	–	67099
RC-2375	–	–	67133
Insert	6mm X 1mm	4MM	67142
Insert	Torx® 4mm x 12mm	#T-15	67176
61264/61268 61264/61268 61264/61268 61264/61268	Slot Stop Screw (6MMx1MM)Slot Stop Screw (6MMx1MM)Slot Stop Screw (6MMx1MM)Slot Stop Screw (6MMx1MM)	–	67182
Insert	Hex Screw	S3	67183
–	Hex Screw (M8x10)Hex Screw (M8x10)Hex Screw (M8x10)Hex Screw (M8x10)	–	67187

Weight	0.02 lbs

Brand

Amana Tool
