Sale!

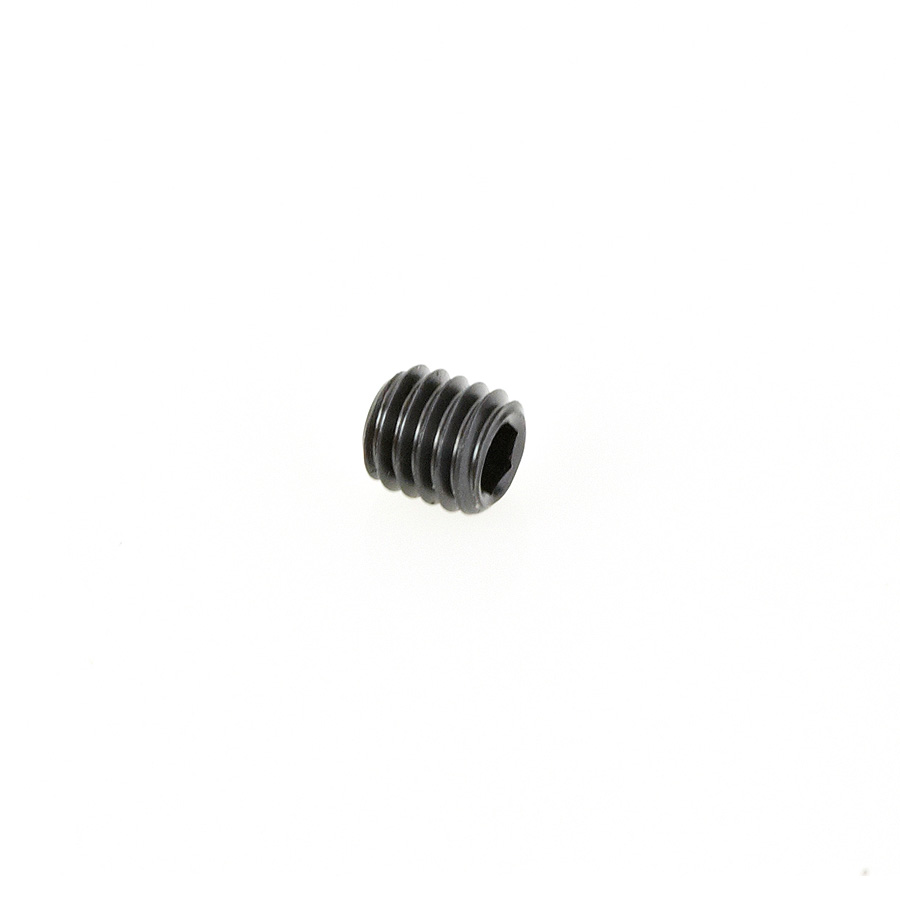

Amana 67097 Allen Type Set Screw 5 x .8mm

Name: Amana 67097 Allen Type Set Screw 5 x .8mm
SKU: Amana 67097
Availability: InStock

Original price was: $2.40.Current price is: $1.80.

REPLACEMENT SET SCREW

UPC: 738685670972 SKU: Amana 67097 Categories: Allen-Type, Flat-Top, Cup-Point & Hex screws, Amana Tool, Router Bit Parts & Accessories, Router Bits

Specifications

Type	5mm x .8mm (FP)
Use w/ Key Size	2.5mm (#5007)
Application	Metric Chucks

Other Sizes Available

Application	Type	Use w/ Key Size	Tool No.
Boring	5mm x .8mm (FP)5mm x .8mm (FP)	S/D	67007
Rosette	6mm x 1.0mm (FP)6mm x 1.0mm (FP)	3mm	67008
In-Tech™	M3x4mm	–	67013
RC-3100	3 x 4mm Special (FP)3 x 4mm Special (FP)	1.5mm	67015
3110	3 x 5mm Special (FP)3 x 5mm Special (FP)	1.5mm	67016
3307	3 x 6mm Special (FP)3 x 6mm Special (FP)	1.5mm	67017
82°	1/4 x 1/4 Hex Screw	–	67070
Metric	6mm x 1.0mm (CP)6mm x 1.0mm (CP)	3.0mm	67079
1	6mm x 1.0mm (FP)6mm x 1.0mm (FP)	3.0mm	67083
Metric	5mm x .8mm (CP)5mm x .8mm (CP)	2.5mm	67087
47724-730	#5-40 NC (CP)#5-40 NC (CP)#5-40 NC (CP)#5-40 NC (CP)	1/16	67091
#55	#10-24 NC (CP)#10-24 NC (CP)#10-24 NC (CP)#10-24 NC (CP)	3/32	67092
In-Tech™	#5-40 X 3/8" NC Flat Top#5-40 X 3/8#5-40 X 3/8#5-40 X 3/8	–	67099
RC-2375	–	–	67133
Insert	6mm X 1mm	4MM	67142
Insert	Torx® 4mm x 12mm	#T-15	67176
61264/61268 61264/61268 61264/61268 61264/61268	Slot Stop Screw (6MMx1MM)Slot Stop Screw (6MMx1MM)Slot Stop Screw (6MMx1MM)Slot Stop Screw (6MMx1MM)	–	67182
Insert	Hex Screw	S3	67183
–	Hex Screw (M8x10)Hex Screw (M8x10)Hex Screw (M8x10)Hex Screw (M8x10)	–	67187

Weight	0.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
