Sale!

955 Carbide Tipped 3-Wing Straight Edge 2-5/8 Dia x 1 x 1/2 & 3/4 Bore

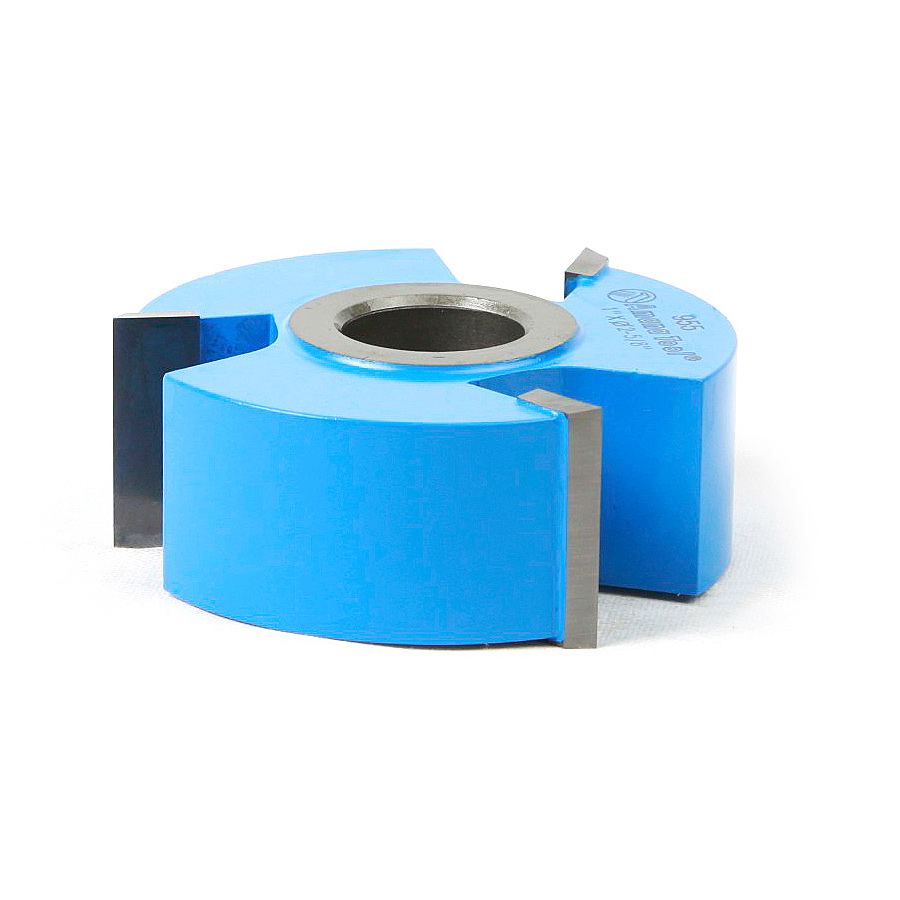

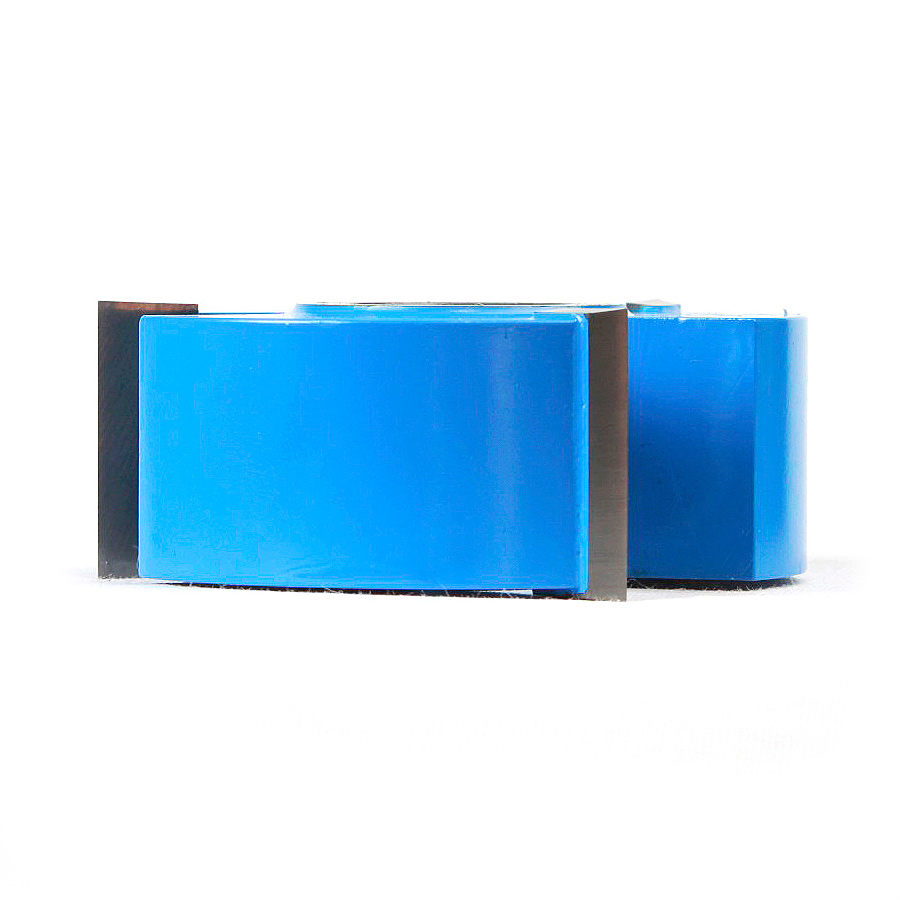

Amana 955 Carbide Tipped 3-Wing Straight Edge 2-5/8 Dia x 1 x 1/2 & 3/4 Bore

Original price was: $159.45.Current price is: $111.62.

1″ STRAIGHT CUTTER

Item Description

Over 250 different cutters for all your shaping needs. Extra-thick carbide tips offer many resharpenings and longer tool life. RPM rating: 12,000 and under.

Cutters are furnished with either 1/2,” 3/4″ or 1-1/4″ bore.

Cutters with 3/4″ bore include 2 reduction bushings (1/2″ x 3/4″)

which will reduce the bore to 1/2.”

Cutters with 1-1/4″ bore include 2 reduction bushings (1″ x 1-1/4″)

which will reduce the bore to 1″.

Specifications

(D) Diameter	2-5/8
(d) Bore	1/2 & 3/4
(B) Cutting Height	1

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Bore	Tool No.
2 (50.80mm)	1 (25.40mm)	1/2 (12.70mm)	SC610
2.000 (50.80mm)	1/2 (12.70mm)	1/2 (12.70mm)	SC614
1-7/8	1/4 (6.35mm)	1/2 & 3/4	SC672
3-9/16	1/4 (6.35mm)	1 & 1-1/4	SC615
2-5/8	3/4 (19.05mm)	1/2 & 3/4	912
2-5/8	1/4 (6.35mm)	1/2 & 3/4	918
2-5/8	3/8 (9.53mm)	1/2 & 3/4	953
2-5/8	1/2 (12.70mm)	1/2 & 3/4	954
2-5/8	1-1/2	1/2 & 3/4	956
2-5/8	2 (50.80mm)	1/2 & 3/4	SC632
2-7/8	1/4 (6.35mm)	1/2 & 3/4	SC611
2-7/8	1/4 (6.35mm)	1 & 1-1/4	SC613
3-1/8	1/4 (6.35mm)	1/2 & 3/4	917
4 (101.60mm)	1/4 (6.35mm)	1-1/4	A-27-100
4 (101.60mm)	3/8 (9.53mm)	1-1/4	A-27-102
4 (101.60mm)	1/2 (12.70mm)	1-1/4	A-27-104
4 (101.60mm)	3/4 (19.05mm)	1-1/4	A-27-106
4 (101.60mm)	1 (25.40mm)	1-1/4	A-27-108
4 (101.60mm)	1-1/4	1-1/4	A-27-110
4 (101.60mm)	1-3/4	1-1/4	A-27-114
4 (101.60mm)	2 (50.80mm)	1-1/4	A-27-116
3-3/8	1/4 (6.35mm)	1 & 1-1/4	SC673
2-3/4	1/4 (6.35mm)	1/2 & 3/4	SC671
2-1/2	1/2 (12.70mm)	1/2 & 3/4	948

Weight	1.6 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
