Amana AMS-143 18-Pc Solid Carbide Up-Cut Spiral Tapered, 2D/3D, Carving & Lettering ZrN Coated Advanced CNC Router Bit Collection, 1/8 & 1/4 Inch Shank

Name: Amana AMS-143 18-Pc Solid Carbide Up-Cut Spiral Tapered, 2D/3D, Carving &amp; Lettering ZrN Coated Advanced CNC Router Bit Collection, 1/8 &amp; 1/4 Inch Shank
SKU: Amana AMS-143
Price: 934.81 USD
Availability: InStock

Original price was: $1,246.40.Current price is: $934.81.

UPC: 738685331439 SKU: Amana AMS-143 Categories: CNC Router Bits, Sets

Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum & wood with CNC machines. The high-shear ball nose and flat bottom tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction and heat buildup. Some of Amana Tool carving tools, as you can appreciate have a very small diameter therefore any material chip-loads need to reflect that small size. It can however withstand RPM’s up to 60,000 RPMs. A directed air-blast to keep chips away along with cooling the tool and work piece are always welcome.
Tools are manufactured with high balance that allows them to run up to 60,000 RPMs. Adjust your chip load and feed rate accordingly.Applications:

A perfect bit for 3D carving
Precision 2D and 3D large scale carving
Great for deep profiling
Dimensional signage
3D millwork
2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials

Excellent for cutting:

Acrylonitrile-Butadiene-Styrene (ABS)
Acrylic
Acrylic Stone
Aluminum
Brass
Bronze
Composite
Copper
Corian
Coroplast®*
Dibond®
Ethafoam***
Ethylene-vinyl Acetate Foam (EVA)
Expanded Polypropylene (EPP)**
Expanded Polystyrene Foam (EPS)
Extruded Polystyrene Foam (XPS)
Fiberglass
Fiberglass PCB Board
Foam Board
Graphite
High Density Polyethylene (HDPE)
High Density Urethane (HDU)
20lbs High Density Urethane
Lexan™
MDF/HDF
Non-Ferrous Metals
PALFOAM™
Phenolics
Phenolic Composites
Plastics
Poly (methyl methacrylate) (PMMA)
Polyethylene Foam***
Polylam***
Polyurethane Foam
PVC
PVC Foam Board
Sign Board
Sign Foam
Titanium
Tooling Board
Wood
XPE (Cross Linked Polyethylene) Foam

*A soft plastic cardboard made with super soft, super flexible PVC.
**Expanded polypropylene (EPP) is a foam form of polypropylene.
***Ethafoam, Polyethylene, and Polylam are durable, flexible, closed-cell foams with excellent memory.Benefits of Zirconium Nitride (ZrN) Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
Have the tendency to run/spin much faster than an uncoated tool
Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
High flute volume supports high feed rates and chip loads
High aspect ratio for single pass deep-reach cutting
Flute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites

Milling Plastics:
In a milling application, all plastics tend to behave differently so attention must be paid first and foremost to heat input, as that greatly impacts surface finish and chip control.

Suggested starting spindle speed might be 18,000 RPM, there needs to be some experimenting on the part of the programmer to best find an acceptable finish.

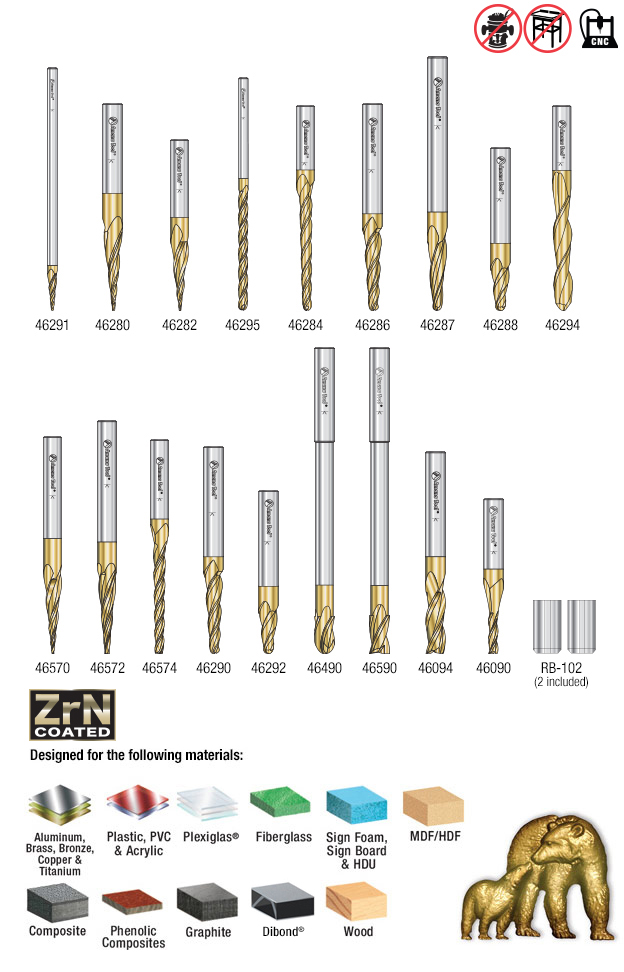

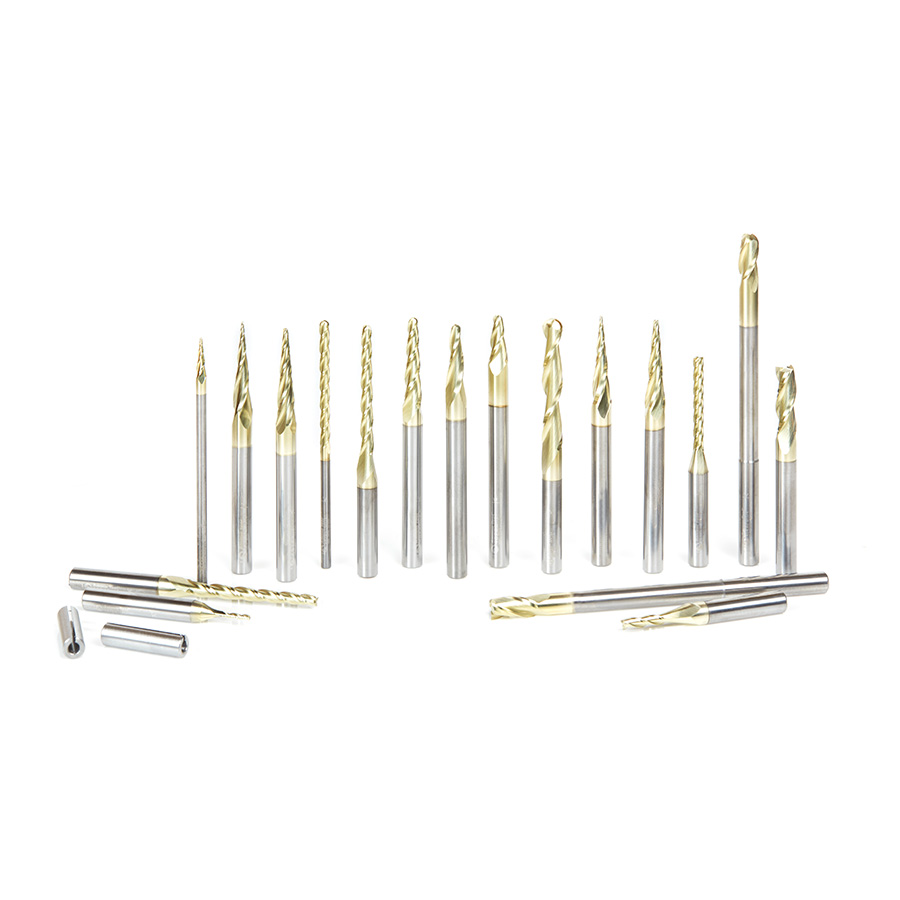

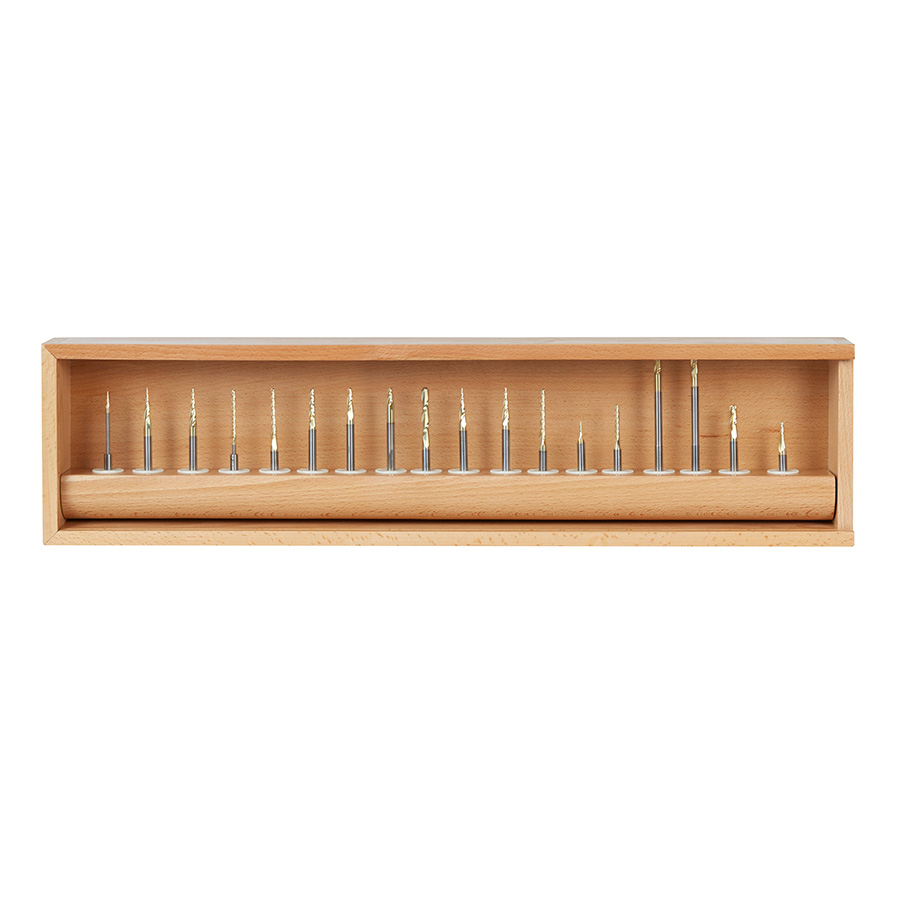

AMS-143 Set Includes:

Tool No.	Product Name	Qty
RB-102	RB-102 High Precision Steel Router Collet Reducer 1/4 Overall Dia x 1/8 Inner Dia x 1 Inch Long	1
46280	46280 CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Tip x 1/32 Dia x 1/64 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit	1
46282	46282 CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit	1
46284	46284 CNC 2D and 3D Carving 1 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit	1
46286	46286 CNC 2D and 3D Carving 3.6 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit	1
46288	46288 CNC 2D and 3D Carving 7 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 1/2 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit	1
46294	46294 CNC 2D and 3D Carving 0.10 Deg Straight Angle Ball Tip 1/4 Dia x 1/8 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 2 Flute Solid Carbide ZrN Coated Router Bit	1
46290	46290 CNC 2D and 3D Carving Flat Bottom 0.10 Deg Angle x 1/16 Dia x 5/16 x 1/4 Shank x 2 Inch Long x 3 Flute Solid Carbide ZrN Coated Router Bit	1
46292	46292 CNC 2D and 3D Carving Flat Bottom 0.10 Deg Angle x 1/8 Dia x 1-3/32 x 1/4 Shank x 2-1/2 Inch Long x 4 Flute Solid Carbide ZrN Coated Router Bit	1
46287	46287 CNC 2D and 3D Carving 5 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 3/4 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit	1
46590	46590 Extra Long CNC 2D and 3D Carving Flat Bottom 0.10 Deg Straight Angle x 1/4 Dia x 1/2 x 1/4 Shank x 4 Inch Long x 3 Flute Solid Carbide ZrN Coated Reduced Shank Router Bit	1
46570	46570 CNC 2D and 3D Carving Flat Bottom 6.2 Deg Angle x 1/32 Dia x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide ZrN Coated Router Bit	1
46572	46572 CNC 2D and 3D Carving Flat Bottom 5.4 Deg Angle x 1/16 Dia x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide ZrN Coated Router Bit	1
46574	46574 CNC 2D and 3D Carving Flat Bottom 1.0 Deg Angle x 1/8 Dia x 1-1/2 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide ZrN Coated Router Bit	1
46291	46291 CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Tip x 1/32 Dia x 1/64 Radius x 0.445 x 1/8 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral ZrN Coated Router Bit	1
46490	46490 Extra Long CNC 2D and 3D Carving Ball Nose 0.10 Deg Straight Angle x 1/4 Dia x 1/8 Radius x 1/2 x 1/4 Shank x 3 Flute ZrN Coated Reduced Shank Router Bit	1
46295	46295 CNC 2D and 3D Carving 1 Deg Straight Angle Ball Tip 1/8 Dia x 1/16 Radius x 1-1/2 x 1/8 Shank x 3 Inch Long x 3 Flute Solid Carbide ZrN Coated Router Bit	1
46090	46090 Solid Carbide Up-Spiral 1/8 Dia x 1/2 x 1/4 Shank x 2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit	1
46094	46094 Solid Carbide Up-Cut Spiral 1/4 Dia x 3/4 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting ZrN Coated Router Bit	1

Weight	5.7 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
