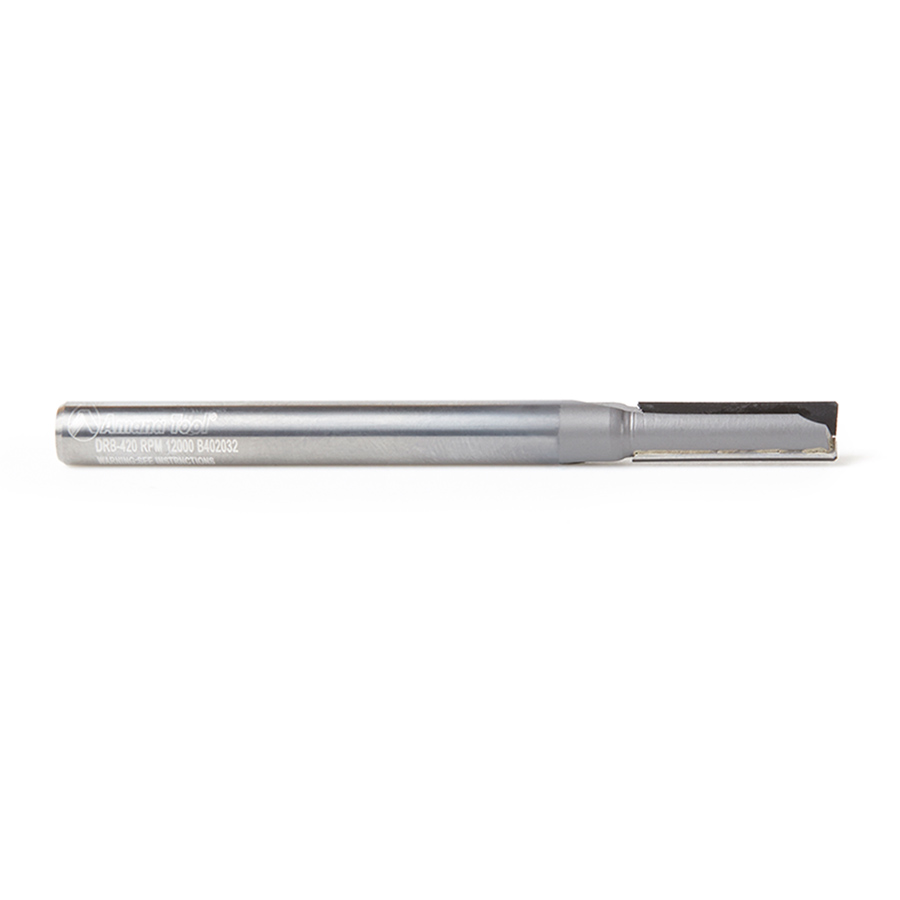

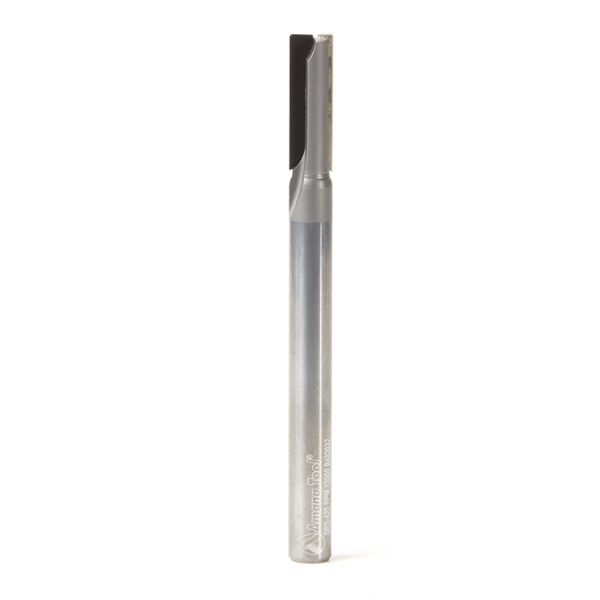

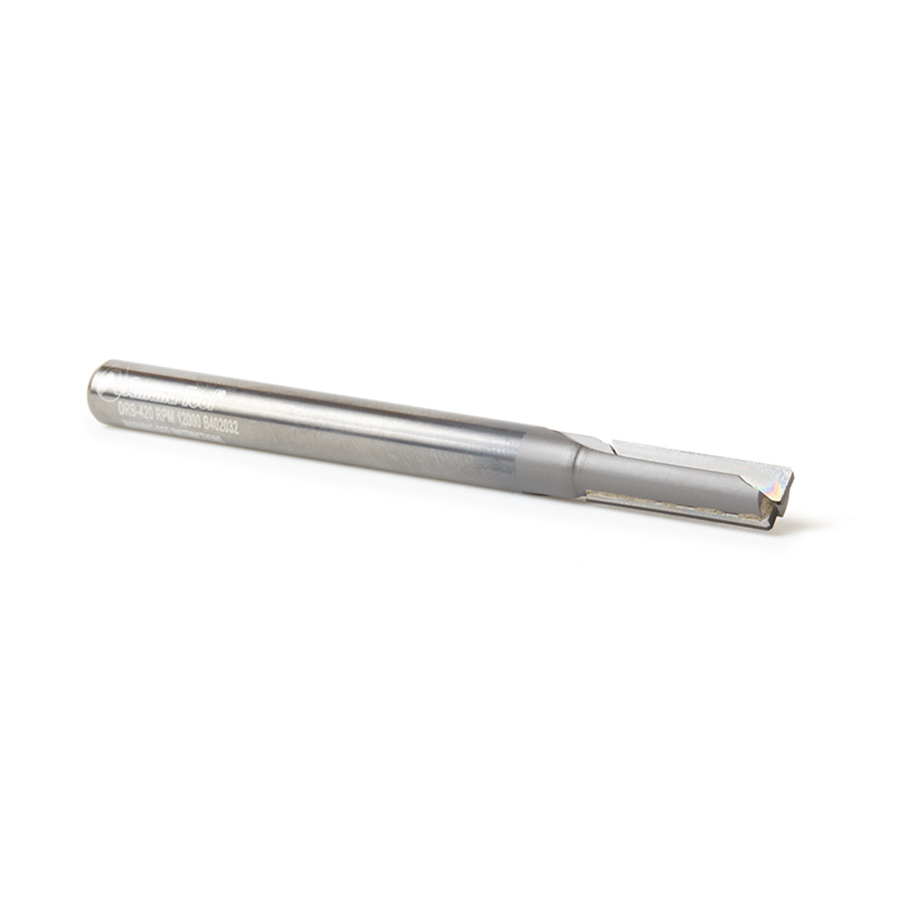

Amana DRB-420 1/4 x 3/4 PCD Diamond Tipped 2FL Straight Plunge Router Bit 1/4″ Shank

PCD DIAMOND 1/4″D 1/4SHANK 2FL

DRB-420 Polycrystalline Diamond (PCD) Tipped Double Flute 1/4 Dia x 3/4 Inch x 1/4 Shank Straight Plunge
#DRB-420

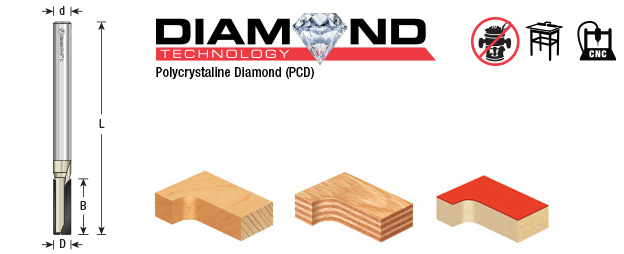

Specification
(D) Diameter: 1/4
(B) Cutting Height: 3/4
(d) Shank: 1/4
Overall Length (L): 3
Max RPM: 24,000
Flutes: 2

Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.

If you’re looking for the ultimate in tooling you’ve found it! Amana Tool®’s PCD tipped double flute straight plunge router bits will groove and joint a wide variety of tough abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life.

• Aluminum
• Aluminum Composites
• Aluminum Composite Material (ACM)
• Composites
• Composite Panels
• Custom Composite Materials (CCM)
• Fiberglass
• Fiberglass PCB Board

• Fiberglass Reinforced Composites
• Fiber-Reinforced Urethane
• Fiber-Reinforced Structural Foam Floors
• Hard and Soft Wood
• Lightweight Composites
• MDF
• Plastic
