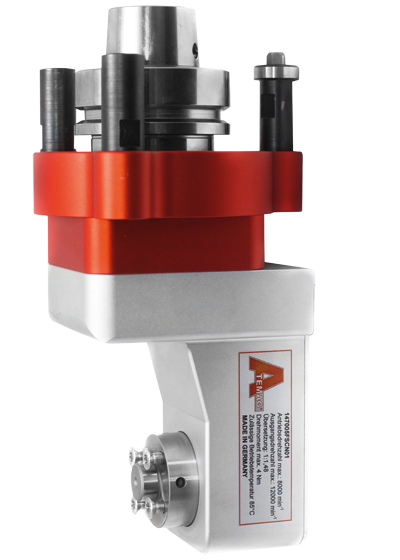

ATEMAG Extra 2 Function Line

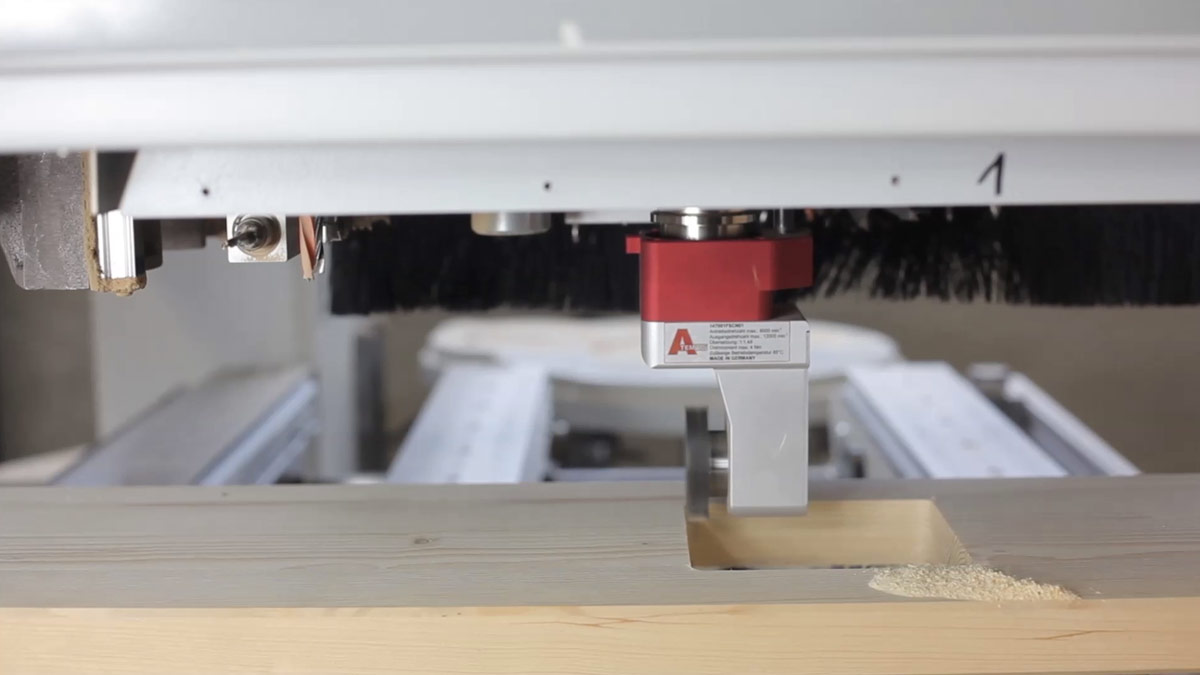

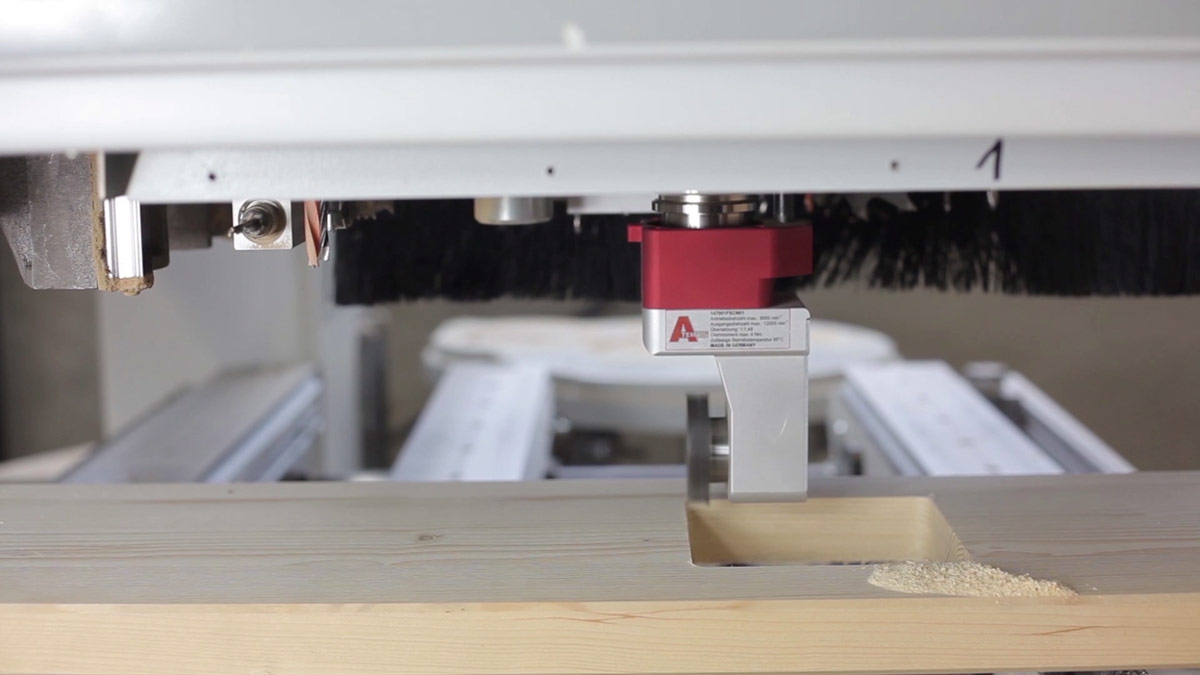

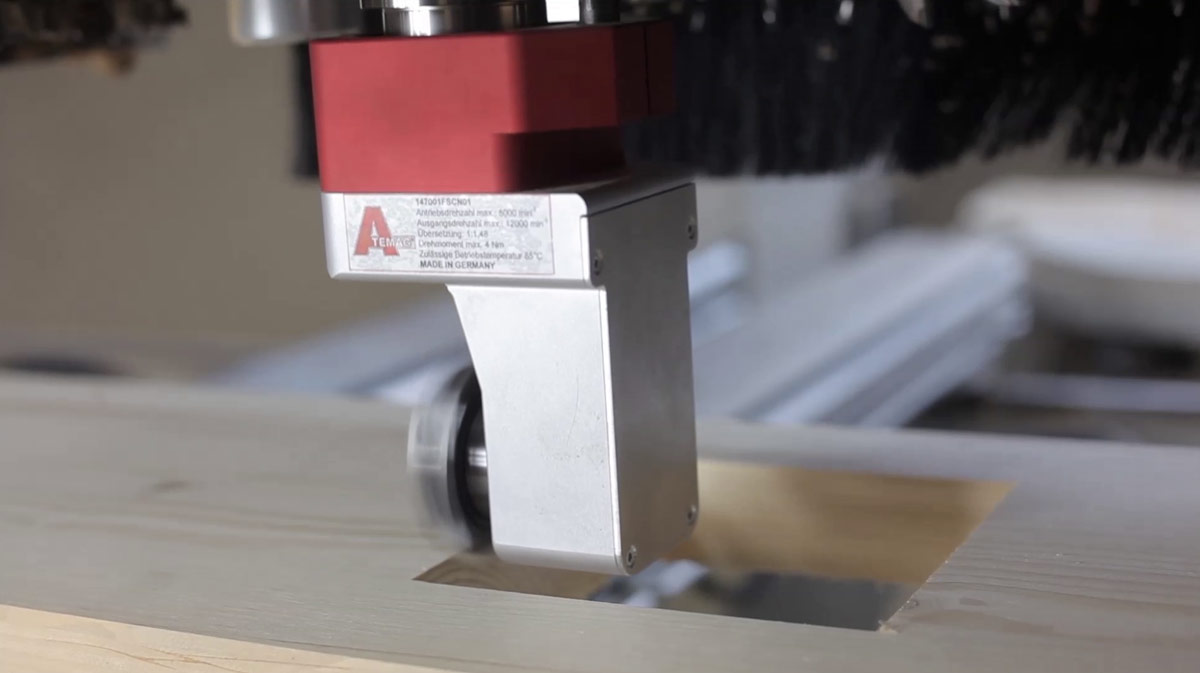

Corner notching / underside machining on 5-axis machines in tight spaces without board.

Request a Quote



Technical Data

Machining options:

Drilling

Milling

Max. input speed: 8.000 rpm
Max. output speed: 12.100 rpm
Gear ratio: 1 : 1,48
Max. torque: 4 Nm
Permissible operating temperature: max. 85°C
Positioning of torque arm with respect to tool: 4 x 90°
Machining angle: 90°
Number of tool outputs: 1 / fix
Lubrication: Grease / Lifetime lubrication
UPC: N/A Categories: ,
