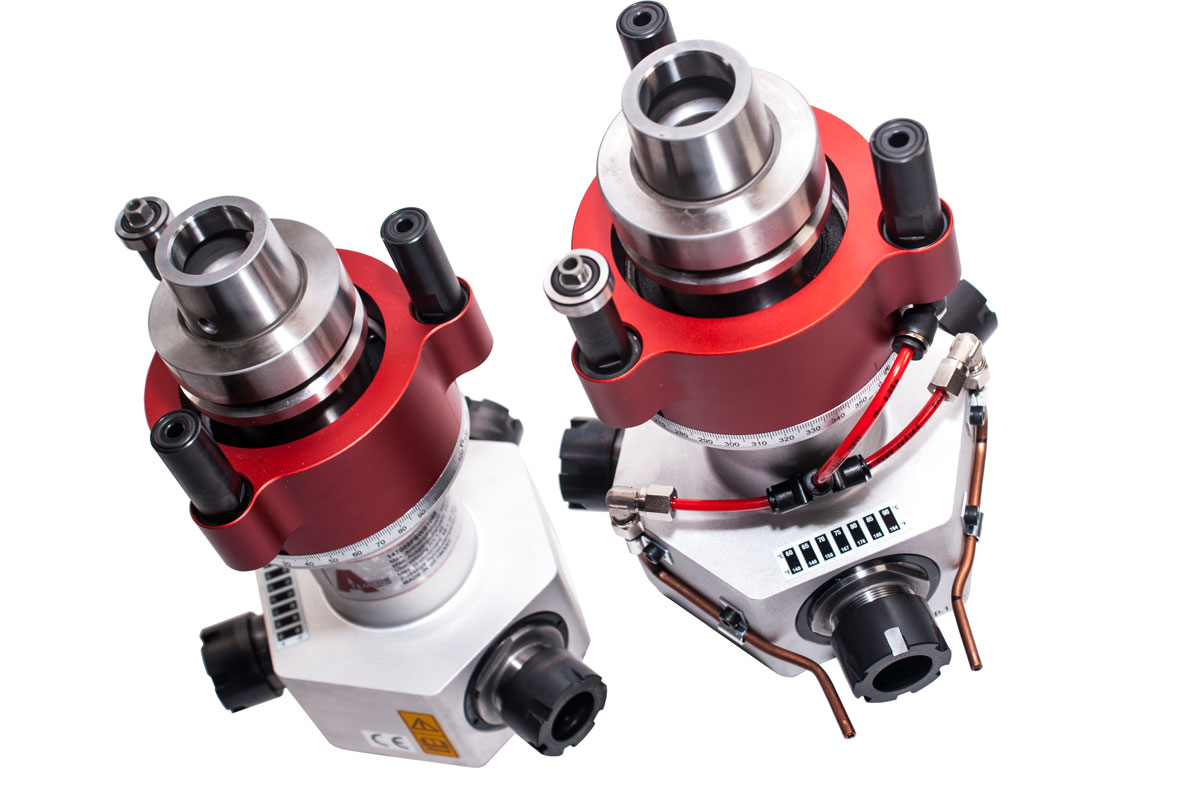

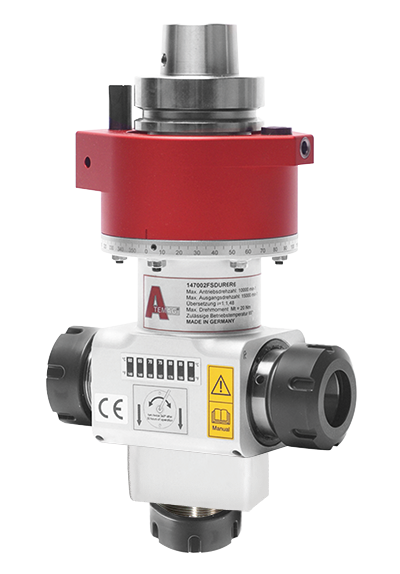

ATEMAG Trio Function Line

DUO FUNCTION LINE with an additional vertical tool output.

Technical Information

Machining options:		Drilling	Milling	Grinding
Max. input speed:	10.000 rpm
Max. output speed:	15.000 rpm
Gear ratio:	1 : 1,48
Max. torque:	20 Nm
Permissible operating temperature:	max. 85°C
Positioning of torque arm with respect to tool:	360°
Machining angle:	horizontal and vertical
Number of Tool Outputs:	3 / fixed
Lubrication:	Grease / Lifetime lubrication

UPC: N/A Categories: Aggregates, FUNCTION LINE

Brand

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
