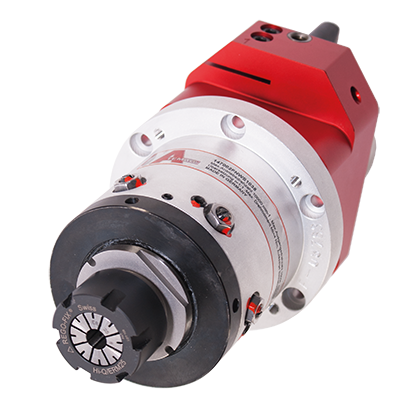

ATEMAG Soft Touch 360° Mono Function Line

Floating aggregate for defined edge machining of contoured parts on 5-axis machines or robot systems.

Request a Quote

Technical Data

Machining options:		Milling
Max. input speed:	12.000 rpm
Max. output speed:	12.000 rpm
Gear ratio:	1 : 1
Max. torque:	10 Nm
Permissible operating temperature:	max. 85°C
Machining angle:	0°
Number of tool outputs:	1 / fixed
Lubrication:	Grease / Lifetime lubrication
Probing direction:	Radial
Floating capacity:	5 mm

UPC: N/A Categories: Aggregates, FUNCTION LINE

Description
Brand

Product Information

Copying function for compensating for shape and position tolerances in radial axis direction of molded parts, e.g., chamfers and radii, or for deburring.

Typical applications:

Musical instruments: Edge machining of guitar bodies
Furniture making: Edge machining of contoured shapes
Routing of glued-on edge banding flush with board on 5-axis machines

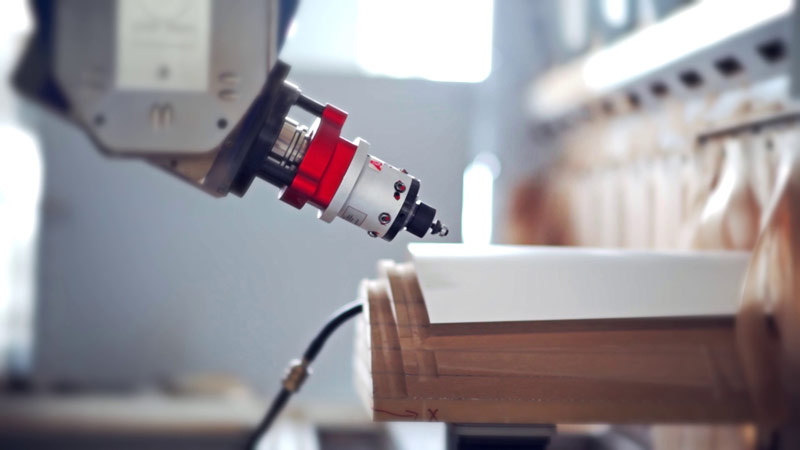

Industrial robot cells: End-of-arm solution for edge machining of GFRP/CFRP parts after pressing

Tool connections:

Modular interface
Other connections on request

Machine connection:

ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
