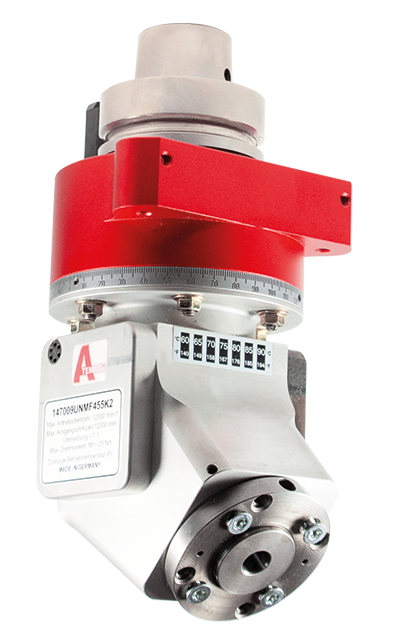

ATEMAG Mono Fix Function Line

MONO FUNCTION LINE with customized angle and one tool output – Ideal for mitering.

Technical Data

Machining options:	Drilling	Milling	Sawing	Grinding
Max. input speed:	15.000 rpm
Max. output speed:	15.000 rpm
Gear ratio:	1 : 1
Max. torque:	20 Nm
Permissible operating temperature:	Max. 85°C
Positioning of torque arm with respect to tool:	360°
Machining angle:	0-100°
Number of tool outputs:	1 / fixed
Lubrication:	Grease / Lifetime lubrication

UPC: N/A Categories: Aggregates, FUNCTION LINE

Description
Brand

Product Information

Machining capabilities:

Drilling, routing, grinding, and sawing

Typical applications:

Doors: Drilling of hardware holes at an angle (e.g., 93° or 97° Anuba hinges)
Clamex grooves
Sawing of miter cuts at 45° for corner joints
Routing of holes for miter joint connectors

Tool connections:

ER 25 and saw blade flange (K1)
K2 saw blade flange
Modular interface
Other connections on request

Machine connection:

ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
