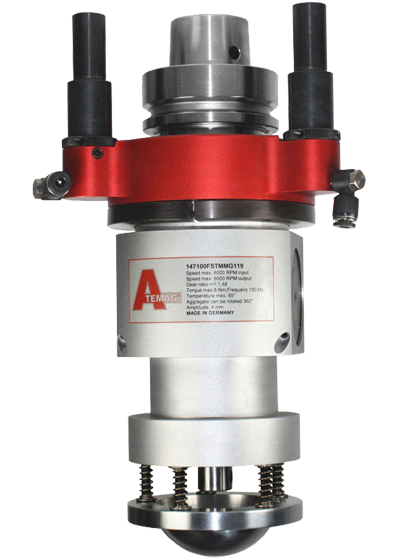

ATEMAG Soft Cutter Pro Function Line

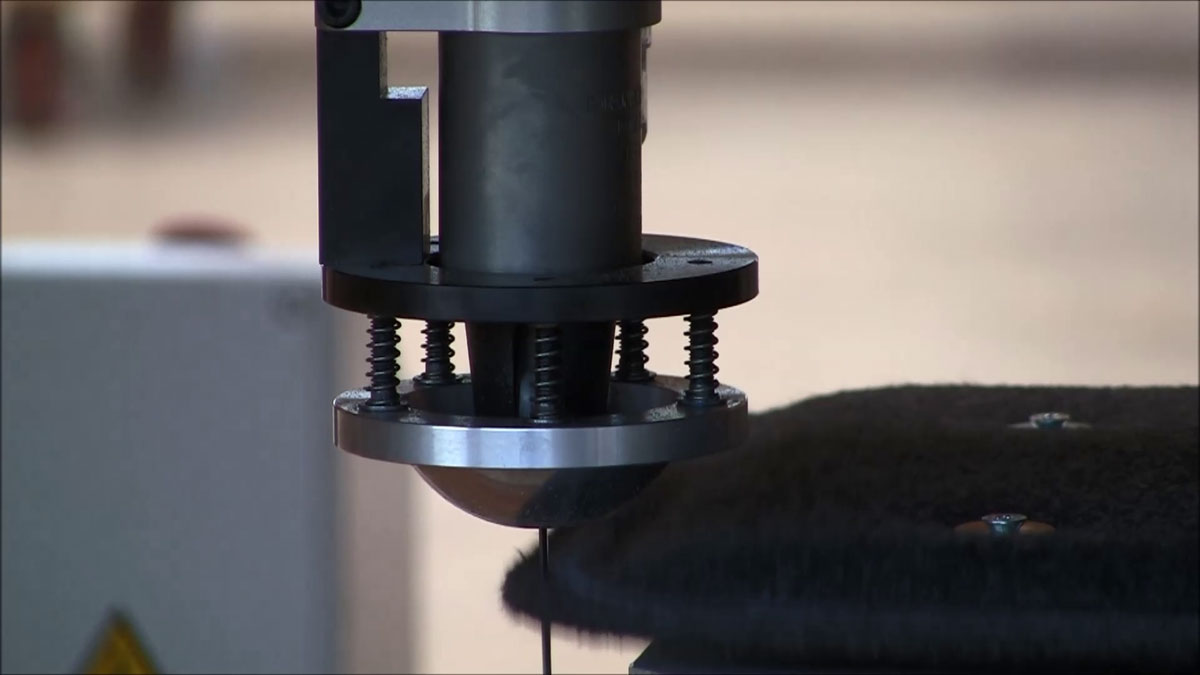

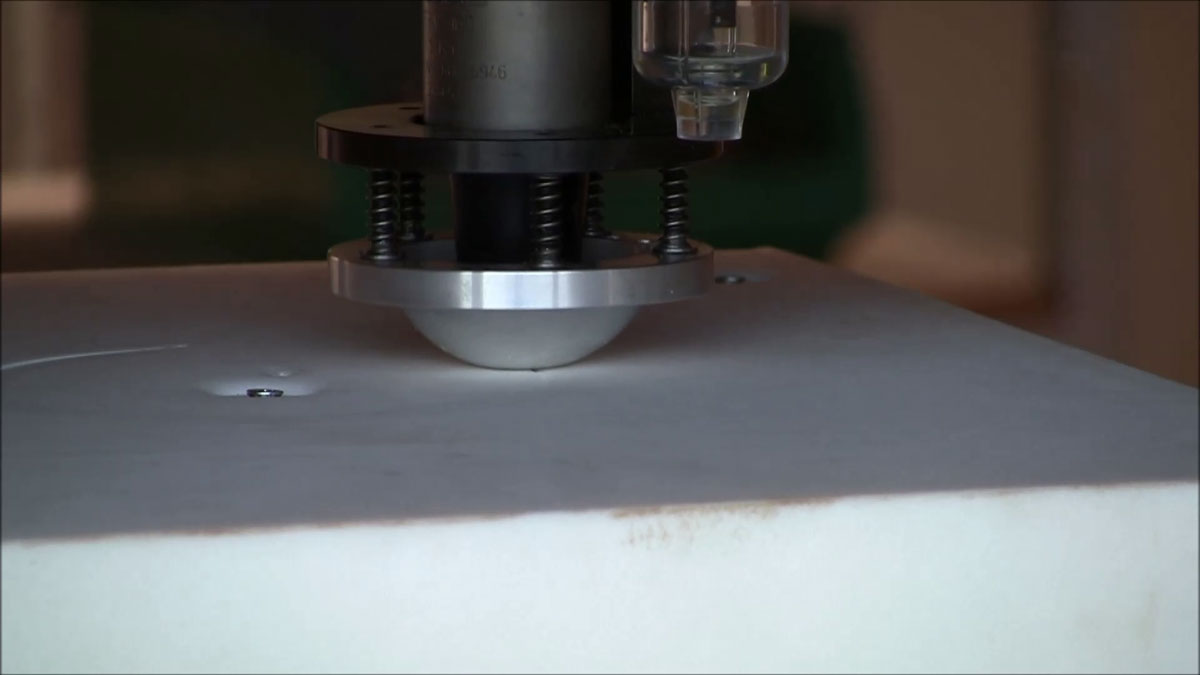

Aggregate for cutting soft materials such as honeycomb core, acoustic elements, and textiles through the use of oscillating movements.

Request a Quote



Technical Data

Machining options:

Cutting

Max. input speed: 6.000 rpm
Max. output speed: 9.000 rpm
Gear ratio: 1 : 1,48
Max. torque: 8 Nm
Permissible operating temperature: max. 85°C
Positioning of torque arm with respect to tool: 360°
Machining angle:
Number of tool outputs: 1 / fixed
Lubrication: Grease / Lifetime lubrication
Amplitude: 4 mm
Frequency: 150 Hz
