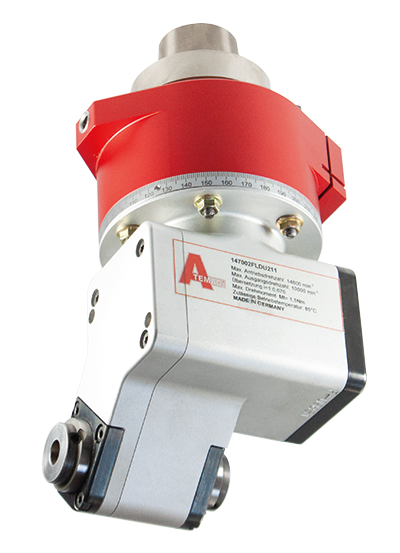

ATEMAG Frame Aggregate Function Line

Angle head for machining of door frames.

Technical Data

Machining options:		Milling
Max. input speed:	15.000 rpm
Max. output speed:	10.000 rpm
Gear ratio:	1 : 0,676
Max. torque:	1,5 Nm
Permissible operating temperature:	max. 85°C
Positioning of torque arm with respect to tool:	360°
Machining angle:	0°
Number of tool outputs:	2 / fix
Lubrication:	Grease / Lifetime lubrication

UPC: N/A Categories: Aggregates, FUNCTION LINE, Special Application

Description
Brand

Product Information

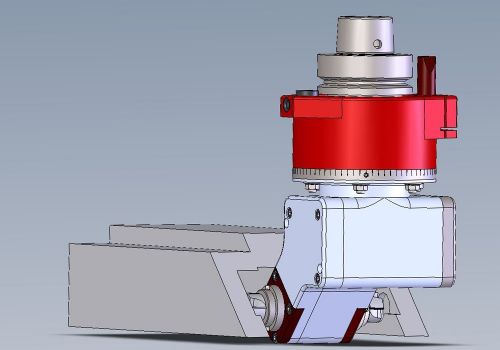

Hole routing for frame connectors, also known as miter joint connectors, for bracing the individual mitered parts of door frames.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
