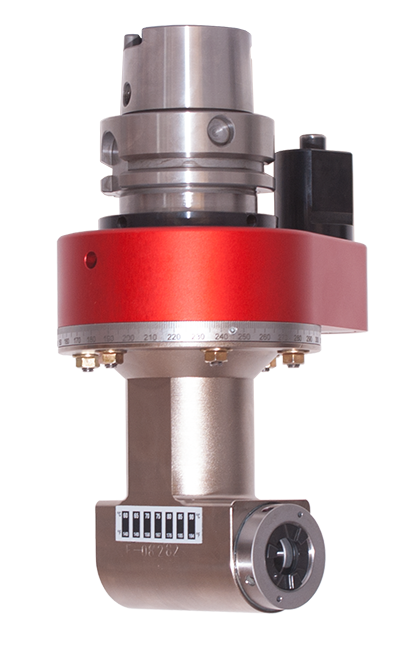

ATEMAG Mono Compact Function Line

Aggregate with very compact design for the machining of composite materials.

Request a Quote

Technical Data

Machining options:		Drilling	Milling
Max. input speed:	4.500 rpm
Max. output speed:	4.500 rpm
Gear ratio:	1 : 1
Max. torque:	15 Nm
Permissible operating temperature:	max. 85°C
Positioning of torque arm with respect to tool:	360° swiveling
Machining angle:	90°
Number of tool outputs:	1 / fix
Lubrication:	Grease / Lifetime lubrication

UPC: N/A Categories: Aggregates, FUNCTION LINE, Special Application

Description
Brand

Product Information

Machining options:

Milling and drilling

Typical applications:

Milling or drilling operations in hard-to-reach positions.

Tool connections:

ER 16
Other connections on request

Machine connection:

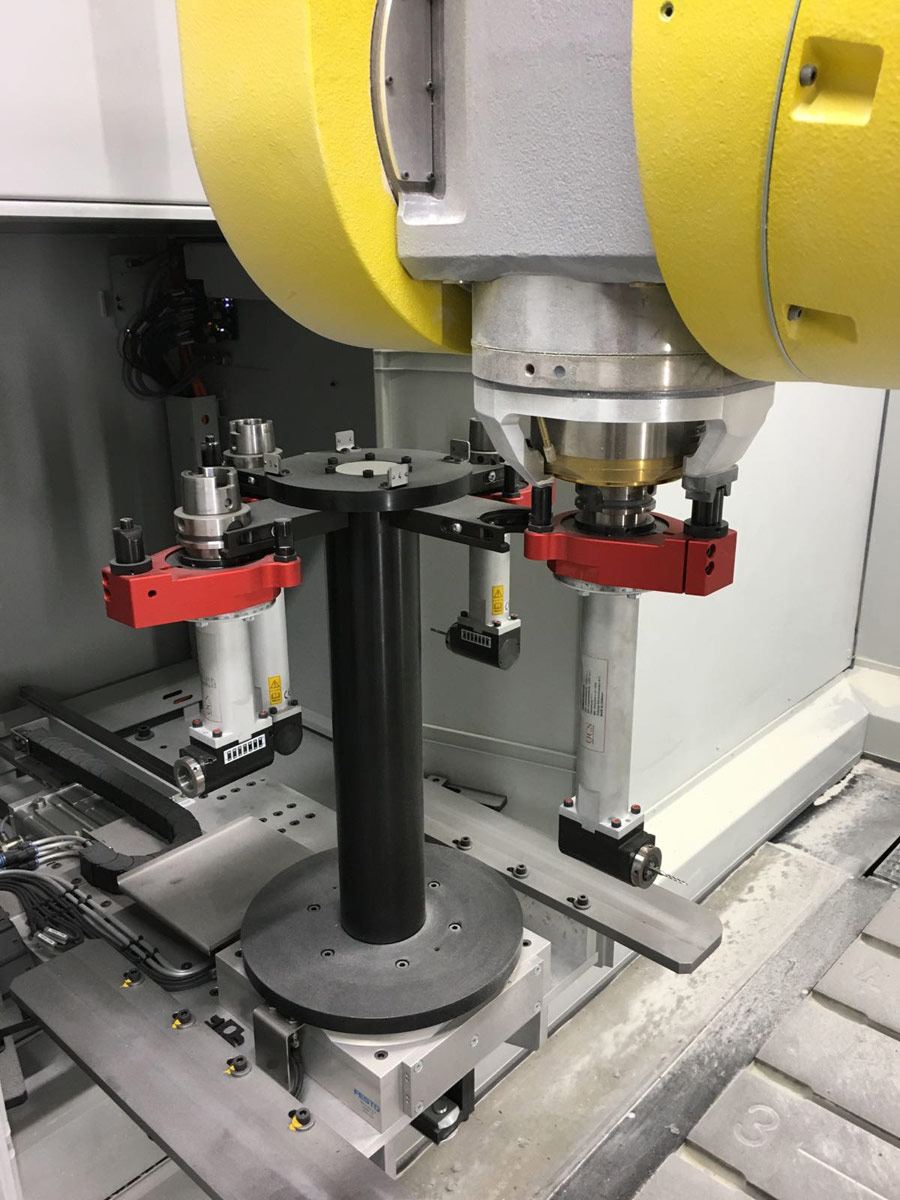

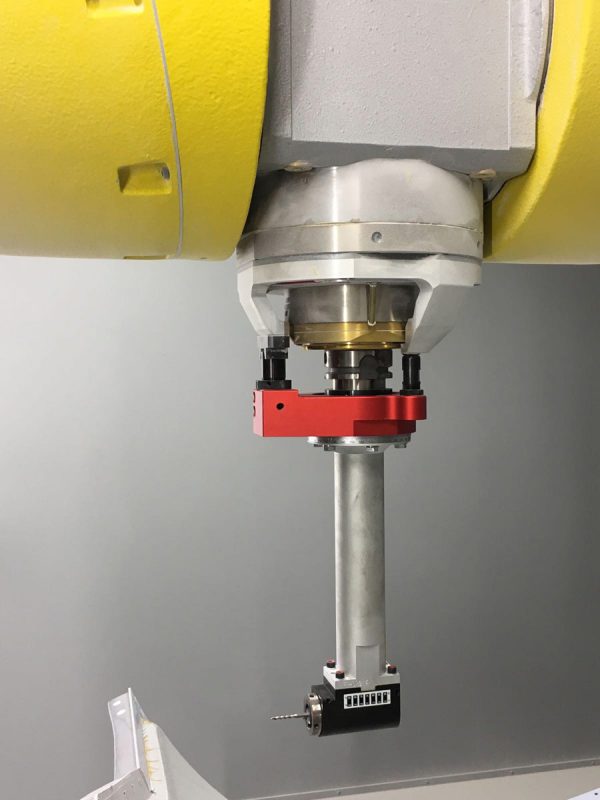

ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
