ATEMAG Verti Function Line

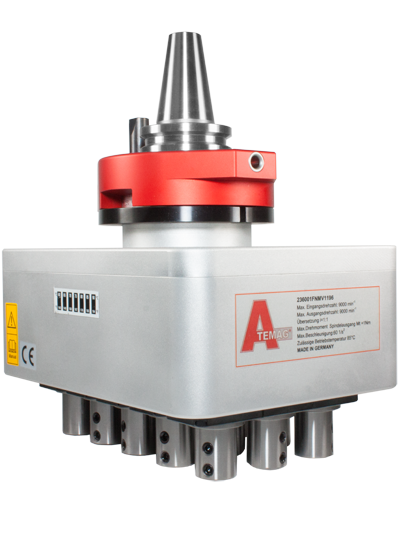

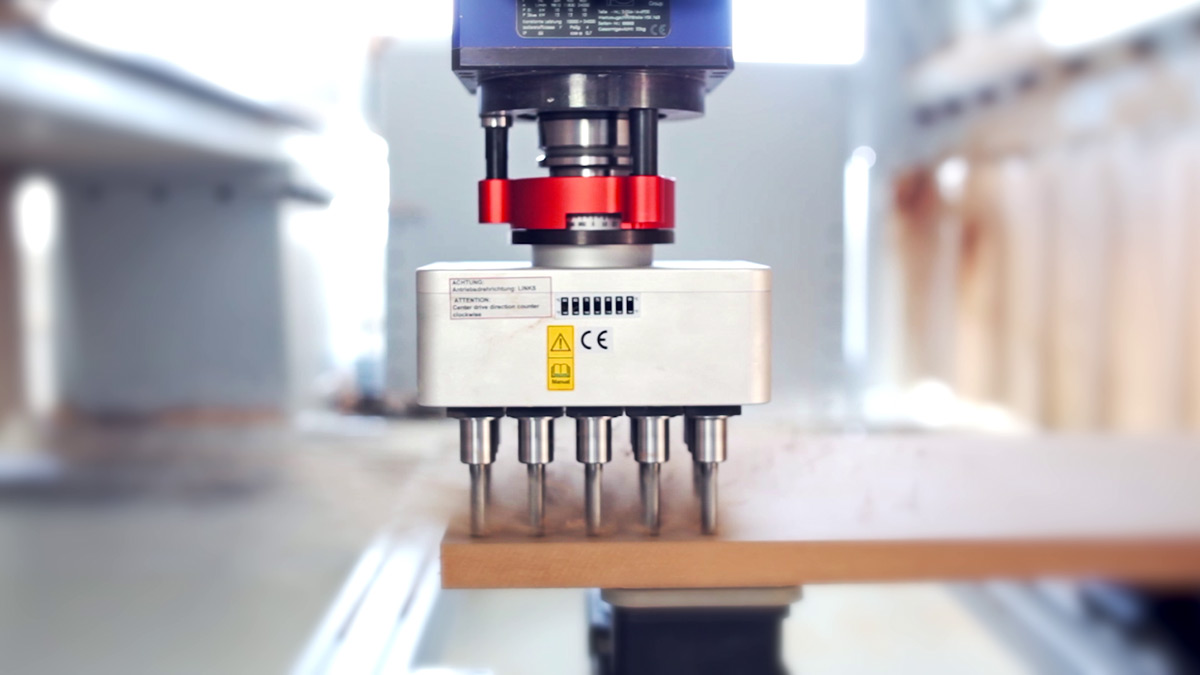

Multispindle drilling head for economical drilling of numerous holes or complex hole patterns in just one machining stroke

Request a Quote

Technical Data

Machining options:		Drilling
Max. input speed:	10.000 rpm
Max. output speed:	10.000 rpm
Gear ratio:	1 : 1
Max. torque:	1 – 5 Nm
Permissible operating temperature:	max. 85°C
Positioning of torque arm with respect to tool:	360°
Machining angle:	0°
Number of tool outputs:	2 – 49 / fixed
Lubrication:	Grease / Sima Lube

UPC: N/A Categories: Aggregates, FUNCTION LINE

Description
Brand

Product Information

The design is always application-based. The number of spindles, the grid dimensions, and the spindle arrangement can vary accordingly.

Typical applications:

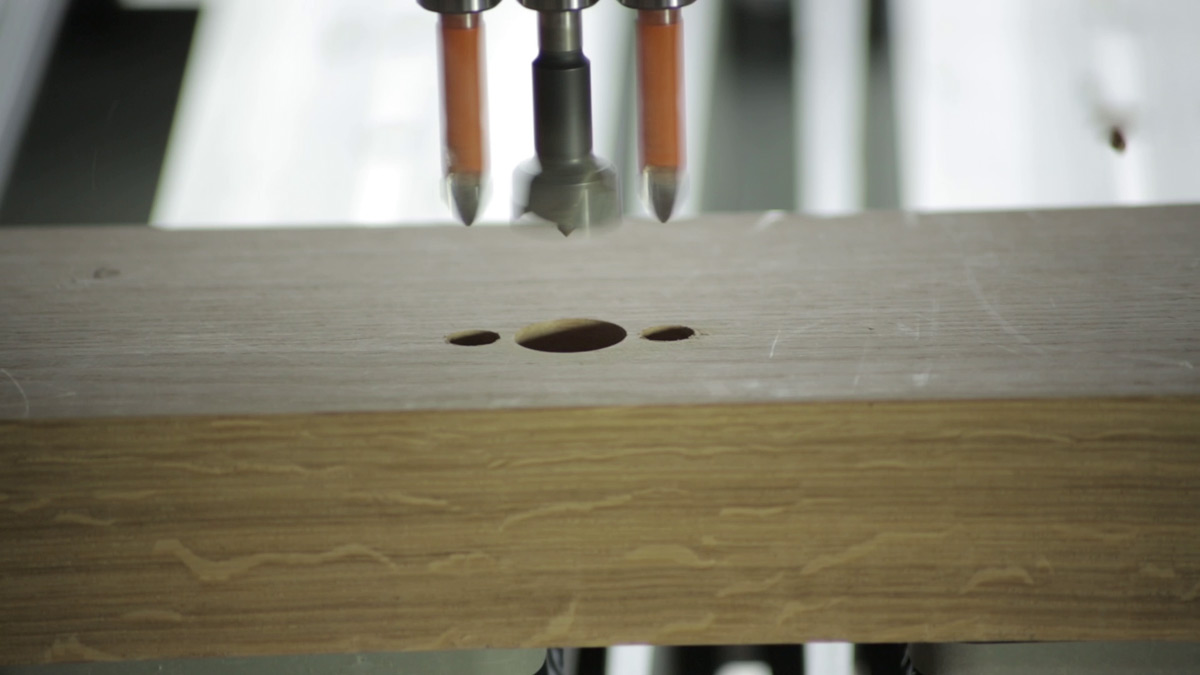

Furniture, windows, and doors: Holes for twist handles or hardware in just one step

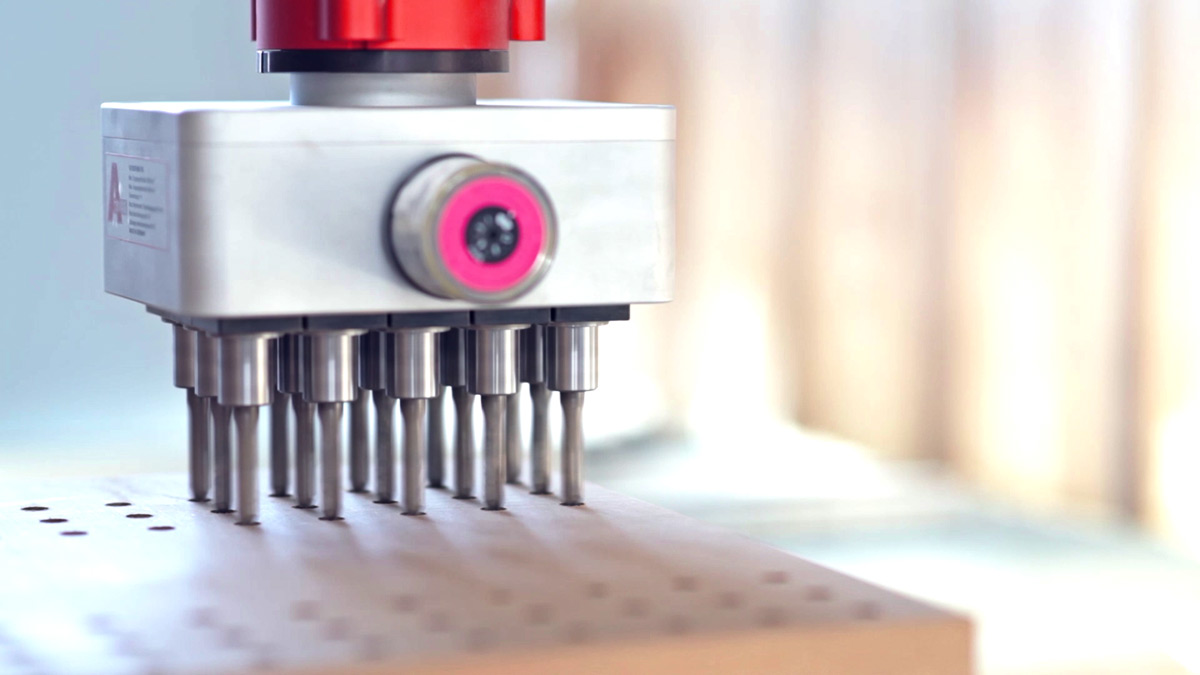

Acoustic elements: Economical production due to fewer drilling strokes

Tool connection:

Weldon Ø10 mm
Other connections on request

Machine connection:

ATEMAG aggregates are used on all CNC machines and robot systems. The machine connection is precisely matched to the technical requirements of the CNC machine or robot.

Brand

ATEMAG

ATEMAG is a leader in the engineering, production, and marketing of CNC aggregates and accessories, and has been since 2004. They are on the cutting edge of both technology and customer service. We at General Cutting Tools are proud to be a national distributor of ATEMAG products.
