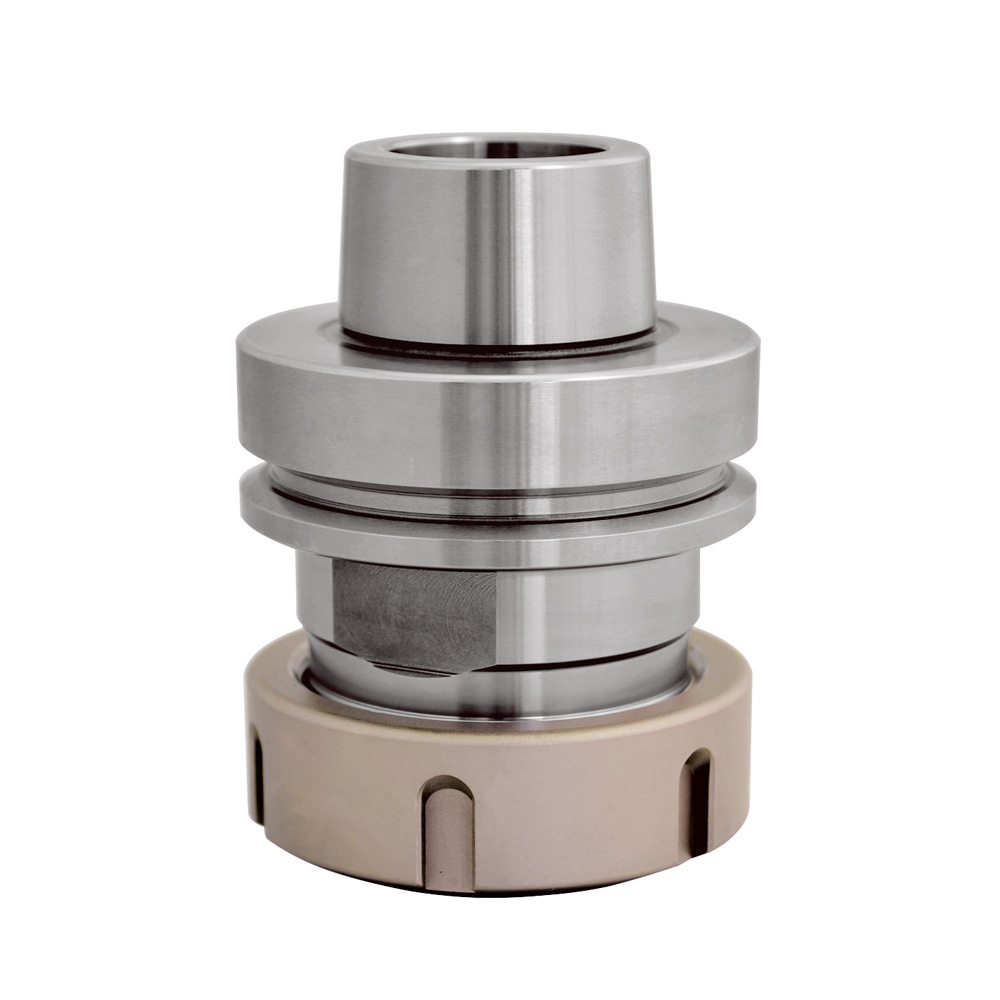

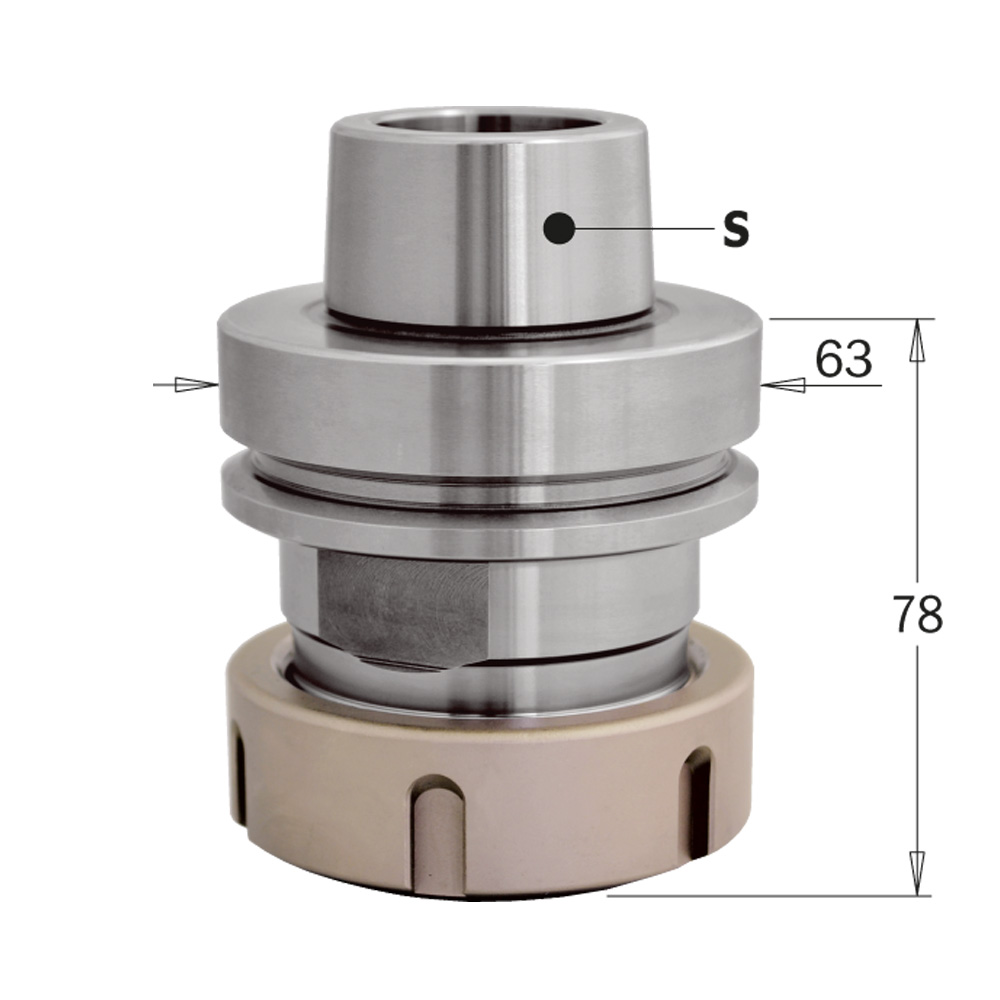

CMT 183.310.11 – CHUCK HSK-F63 RH FOR ER-40 (WITH BEARING)

The Ideal Accessories for Machining Centers, Point-to-Point Machines and CNC Routers:

• Extreme precision and reliability.
• Perfect tool centering.
• Defect-free rotation.
• Made from extremely high resistant steel.
• Precision grinding on all jointed parts.
• Extreme high rotation performance >= 15 HP – 20.000 RPM.
• For very efficient sizing on extreme unprecedented high feed speed.
• Excellent finishing quality on the workpiece and longer tool life.
• Sturdy design with reduced height to increase the work space between the machine and the piece.
• Safe and fast tool setup.
• Interchangeable collet clamps with radial grooves for secure parallel tool clamping.
• Wide clamping tolerance (-0.7mm).
• Right or left-hand rotation chucks with self clamping threads.
• Clamping nut with Woodruff radial grooves for c-spanners.
• Practical withdrawal sleeves with double differential threads for the chuck spindle.
• Central hexagonal low profile for easy tool clamping through a c-spanner.
• Designed and tested in collaboration with the most renowned machining and CNC router construction centres.
• Delivered in smart professional packaging.

Non-Stick Orange Chrome® Shield Coating:

• Prevents overheating
• Protects against corrosion and rust
• Reduces resin build-up
• Longer life and greater tool performance

Application

For HOMAG®, EIMA®, IMA® FROM 9/94, WEEKE®, BIESSE®, SCM®, MORBIDELLI® and MASTERWOOD® machines.

The TW-200 Torque Wrench is recommended for the proper fastening of clamping nuts.
