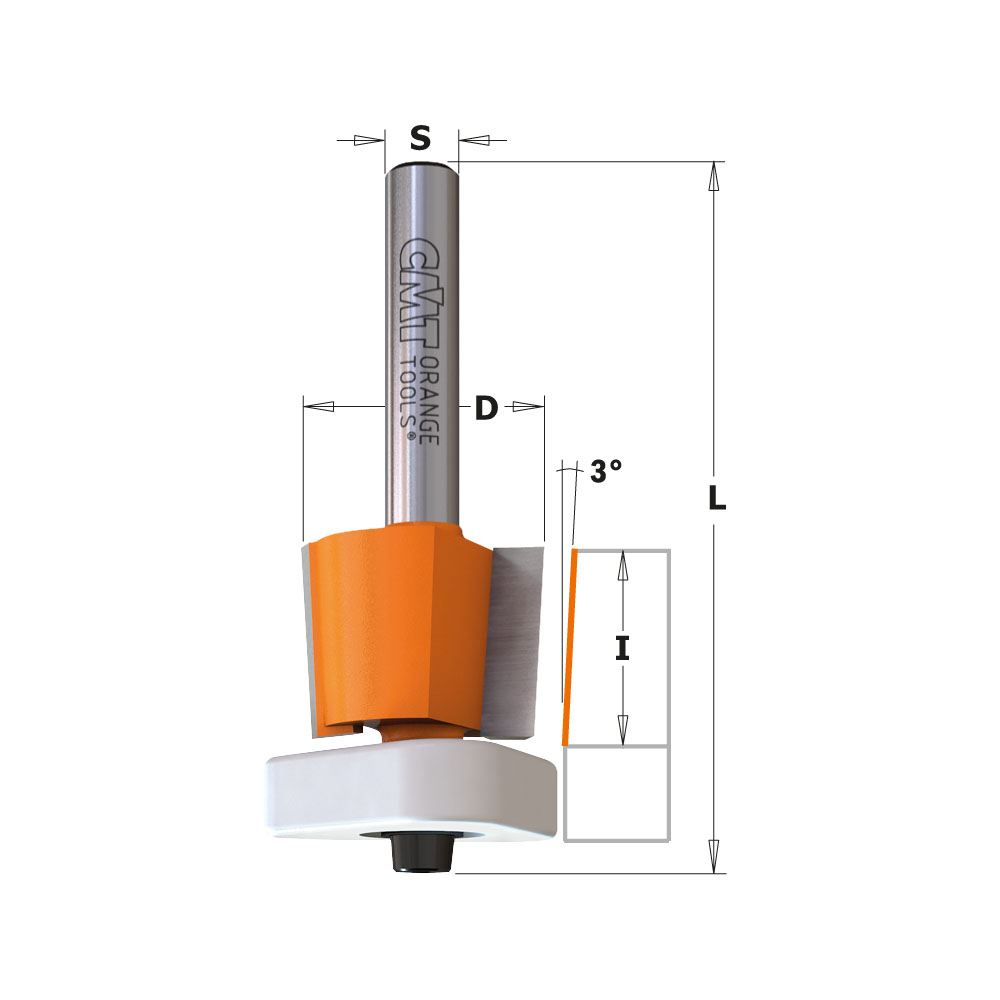

CMT 807.190.11 – 3-1 FLUSH TRIM BIT

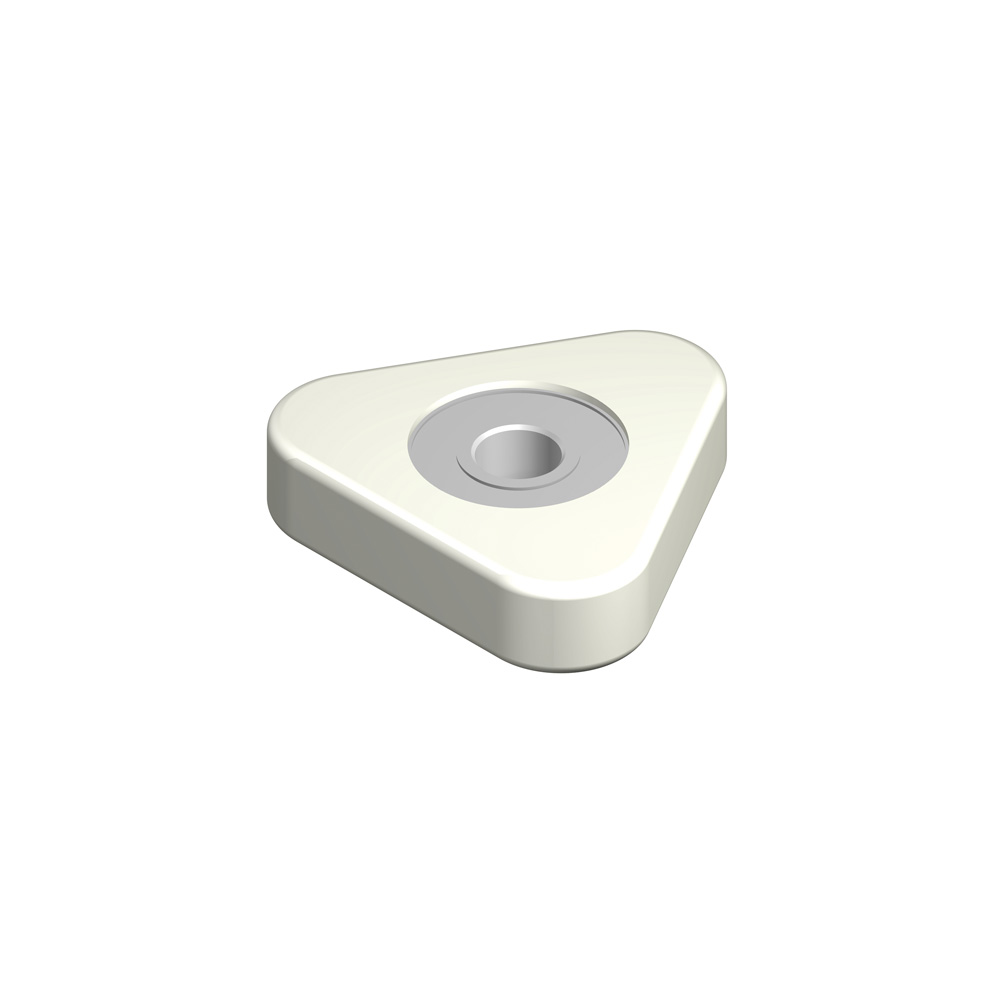

3 in 1 new flush trim bits with Delrin® Triangular bearings are your best partner for laminate trimming. In fact, it solves three of the most common problems that occur when flush trimming:

1. The anti-stick properties of the Delrin® bearing greatly reduces the likelihood of freezing of the bearing from glue.
2. The extended guide surface of the new Delrin® bearing will perfectly match the work surface without scratching like a steel bearing would. The Delrin® bearing also guarantees maximum stability.
3. The shear angle cutting edge reduces the need for filing. 3-in-1 bits are ideal on plastic laminates as well as aluminium laminates!

3-IN-1 BITS ARE IDEAL ON PLASTIC LAMINATES AS WELL AS ALUMINIUM LAMINATES!

Application

Perfect trimming with conical edges!

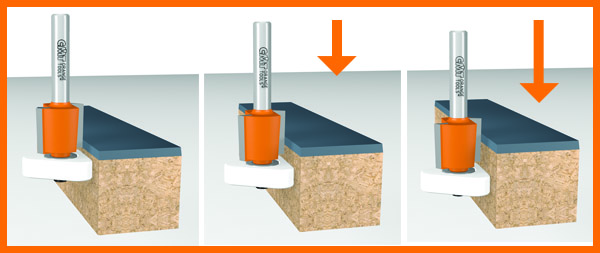

Thanks to the innovative conical edges of this bit, you will always get perfect cuts even after re-sharpening. In fact, the most common problem you have with standard flush trim bits is the undersized diameter after re-sharpening which leaves a mark on the material; with the new CMT construction you could re-sharpen up to six times without any problem. Just remember to adjust your bit up or down as per the illustration.
