M.A. Ford .55MM CB DR .250 FLUTE COLLAR 0.55mm (.0217) x 6.35mm x 38mm Twister GP Uncoated

Name: M.A. Ford .55MM CB DR .250 FLUTE COLLAR 0.55mm (.0217) x 6.35mm x 38mm Twister GP Uncoated
SKU: 30202171C
Price: 5.95 USD
Availability: InStock

$5.95

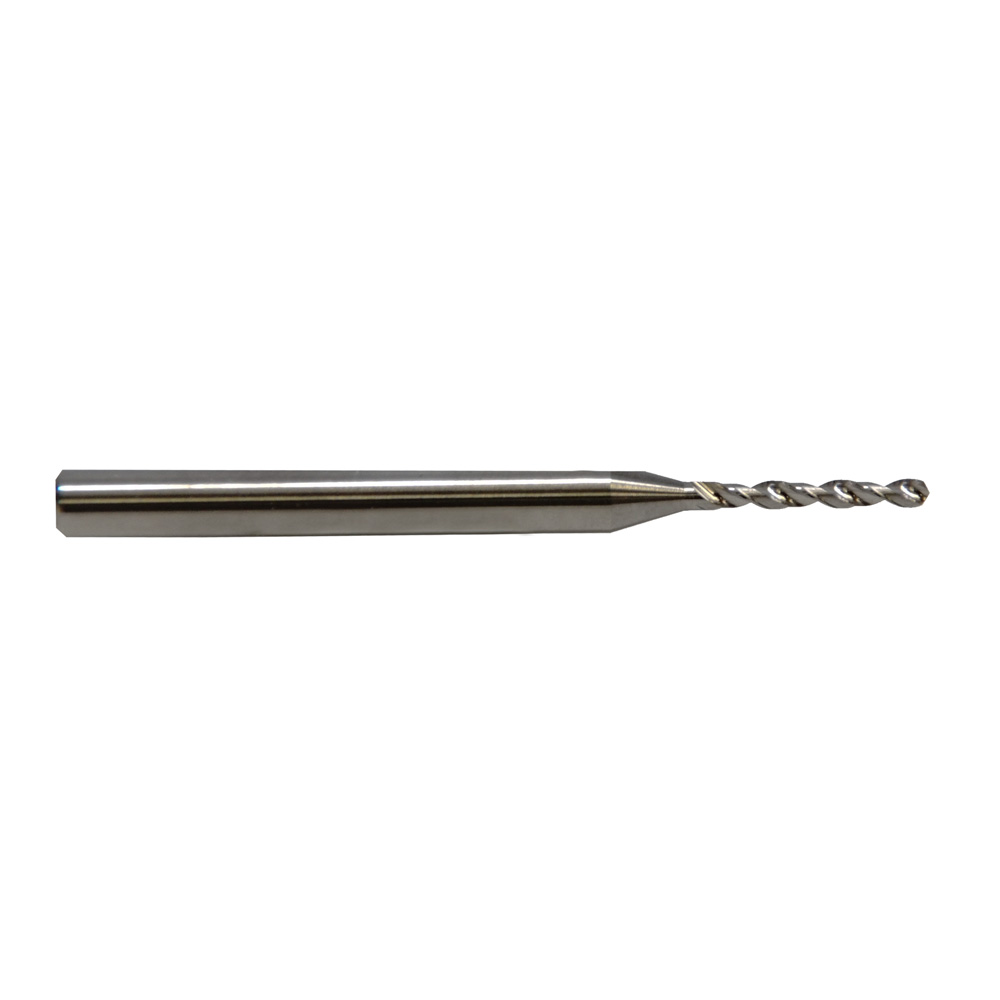

M.A. Ford® Twister® GP Circuit Board Drill 0.55mmx6.35x38x3.175Sh

UPC: N/A SKU: 30202171C Categories: Boring & Drilling Bits, New

Description
Brand

.55MM CB DR .250 FLUTE COLLAR

Product Id: 30202171
EDP: 32163

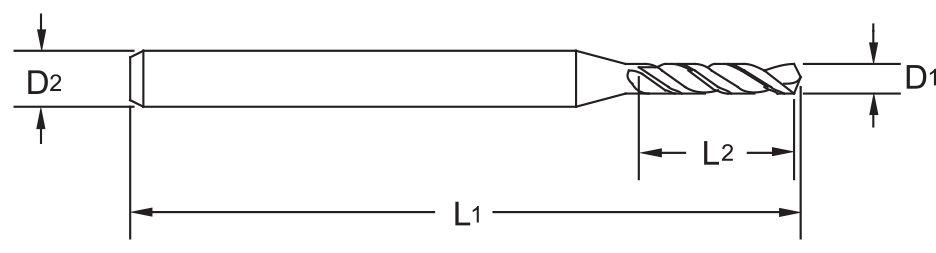

Sizes
Diameter (D/D1) 0.55mm
Diameter Dec .0217
Flute Length (L2) 6.35mm
Flute Length Dec .2500
Overall Length (L1) 38mm
Overall Length Dec 1.4961
Shank Diameter (D2) 3.175mm
Shank Diameter Dec .1250

Specifications
Coating Uncoated
Country of Origin USA
Helix Angle 35°
Included Angle (A) 130°
Material Carbide
# Flutes RH 2
Shank Type Straight
Tool Construction Solid
Trade Name Twister® GP
Weight 0.00845884

Brand

M.A. Ford

Since 1919 M.A. Ford® has grown from a small mid-west maker of rotary files to a leading manufacturer of Standard, High Performance and Custom Cutting tools with manufacturing and distribution facilities all over the world.
