M.A. Ford 06507 CXD DRL 5.8MM SOLID REG 5.8mm (.2283) x 44mm x 82mm Cyclone XD ALtima Plus

Name: M.A. Ford 06507 CXD DRL 5.8MM SOLID REG 5.8mm (.2283) x 44mm x 82mm Cyclone XD ALtima Plus
SKU: CXDSR 0580AP
Price: 69.69 USD
Availability: InStock

$69.69

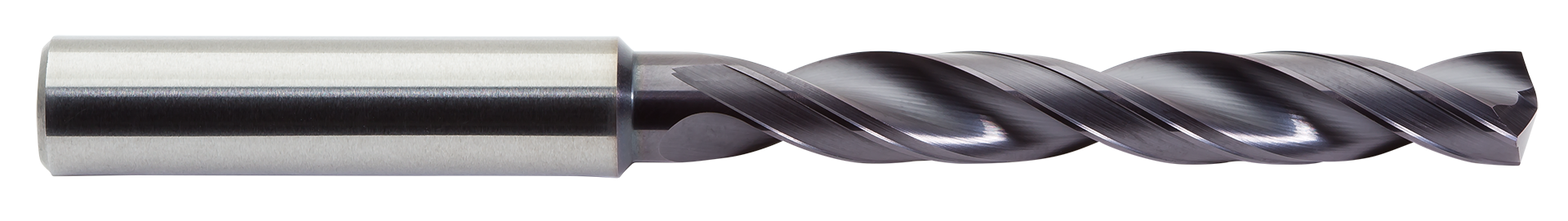

M.A. Ford® Cyclone XD 5X Solid Double Margin Drill 5.80mmx44x82x6Sh ALtima® Plus

UPC: 697604065070 SKU: CXDSR 0580AP Category: Boring & Drilling Bits

Description
Brand

06507 CXD DRL 5.8MM SOLID REG

Product Id: CXDSR 0580AP
EDP: 06507

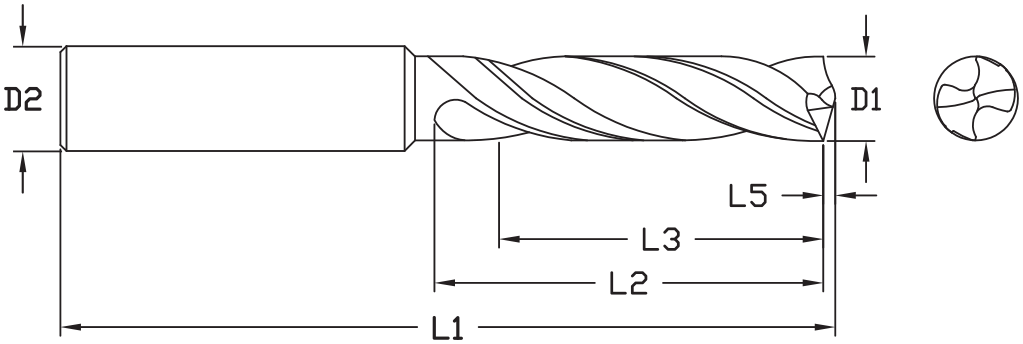

Sizes
Diameter (D/D1) 5.8mm
Diameter Dec .2283
Flute Length (L2) 44mm
Flute Length Dec 1.7323
Overall Length (L1) 82mm
Overall Length Dec 3.2283
Shank Diameter (D2) 6mm
Shank Diameter Dec .2362
Specifications
Coating ALtima® Plus
Country of Origin USA
Helix Angle 30°
Included Angle (A) 140°-142°
Material Carbide
# Flutes RH 2
Shank Type Straight
Specification DIN 6537 L
Tool Construction Solid
Trade Name Cyclone XD

Brand

M.A. Ford

Since 1919 M.A. Ford® has grown from a small mid-west maker of rotary files to a leading manufacturer of Standard, High Performance and Custom Cutting tools with manufacturing and distribution facilities all over the world.
