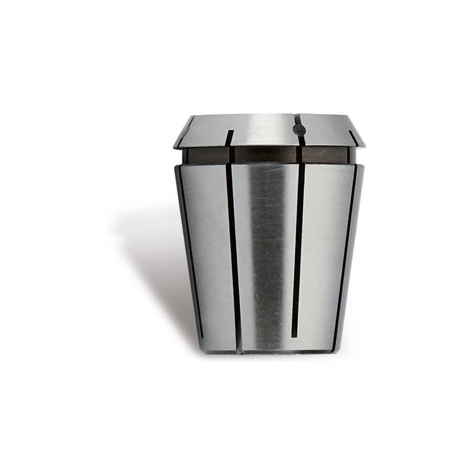

YG1-110316S – ER11S – 3/16 – Er11 Sealed Collet (Inch Type)

Original price was: $59.14.Current price is: $46.70.

Rotary Tool Holders

UPC: N/A SKU: YG1-110316S Categories: Holders, Rotary Tool Holder & Accessories, Rotary Tool Holders, YG-1

EDP No.	110316S
Description	ER11 SEALED COLLET (INCH TYPE)
Size	ER11S – 3/16
Available Qty.	Call for availability

Specifications

Series	ER11S
Type	Sealed Precision Spring Collet
Style	Single Angle
(d) Shank Size (fractional)	0.1875
(d) Shank Size (in)	0.1875
Collapse Range (in)	0.149 – 0.1875
(D) Diameter (in)	0.453
(D) Diameter (mm)	11.5
(L) Overall Length (in)	0.709
(L) Overal Length (mm)	18
Clamping Length (in)	0.709
Clamping Length (mm)	18
Number of PCS (UOM)	1
System of measurement	Inch
Height	1
Length	1
Width	2.125
note	Rubber Sealed Collet

⚠ WARNING: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.

Brand

YG1
