YG1-12000892 – TPKT160504R-ST-YG613 – Indexable Milling Insert

Original price was: $39.81.Current price is: $27.25.

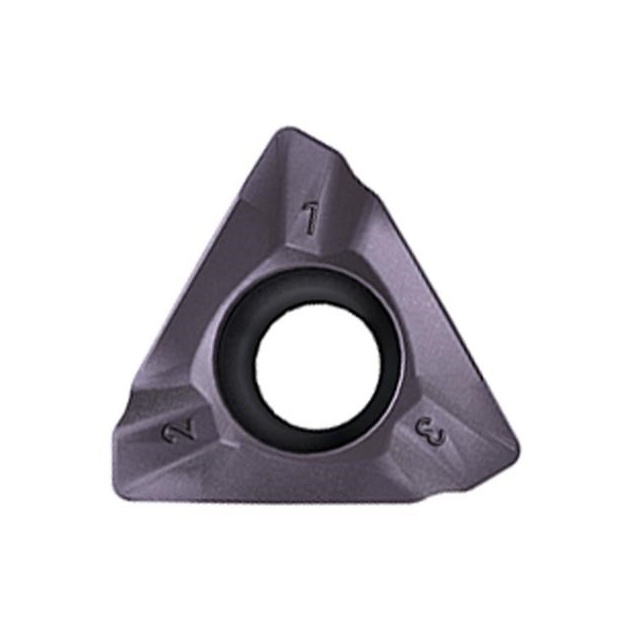

TPKT160504R-ST-YG613 — YG-1 Indexable Milling Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-12000892 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	12000892
Description	TPKT160504R-ST-YG613
Size/Dimension	TPKT160504R-ST-YG613
Material	Carbide
Series	TPKT
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	TPKT
ANSI Code	TPKT160504R-ST
ISO Code	TPKT160504R-ST
ANSI	ISO
Shape	Triangle
# of Cutting Edges	3
Depth of Cut	11
Clearance Angle	Special
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.001
Height Tolerance (± mm)	0.025
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With Screw hole, chipbreaker on one side only
Insert IC (inch)	0.459
Insert IC (mm)	11.6586
Thickness (in)	0.212
Thickness (mm)	5.385
Corner Radius (in)	0.016
Corner Radius (mm)	0.406
Edge Length (in)	0.087
Edge Length (mm)	2.21
Cutting Edge Lgth (in)	0.433
Cutting Edge Lgth (mm)	10.998
Insert Diam (in)	0.459
Insert Diam (mm)	11.6586
Chipbreaker Geometry	ST
Chipbreaker Application	For Stainless Steel, Super Alloy, Sharp Geometry
Cutting Edge Angle	90°
Wiper Edge Clearance	11
Feed rate	.002-.006
Feed Direction	Right hand Insert
Wiper Edge Length	0.087
Grade	YG613
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	MILLING INSERT
Application	Steel, Stainless Steel
System of Measurement	Inch
Application code	P,M

Milling Grade for Stainless Steel Application. New coating layer with lubrication preventing built-up edge on ultra fine grain substrate with high toughness. The toughest substrate provides excellent cutting performance in stainless steel.
