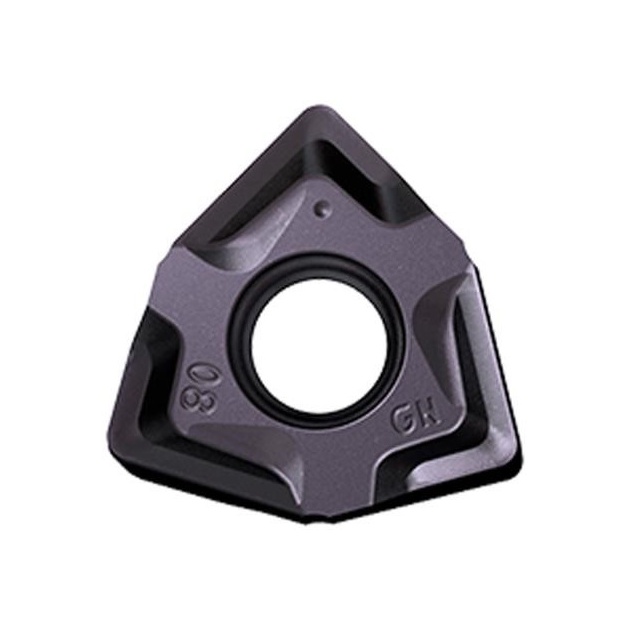

YG1-12000927 – WNEX080620R-GN-YG501/WNEX080620R-GN – Indexable Milling Insert

Original price was: $40.74.Current price is: $27.90.

WNEX080620R-GN-YG501/WNEX080620R-GN — YG-1 Indexable Milling Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-12000927 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	12000927
Description	WNEX080620R-GN-YG501/WNEX080620R-GN
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	WNEX
ANSI Code	WNEX080620R-GN
ISO Code	WNEX080620R-GN
ANSI	ISO
Shape	Trigon
# of Cutting Edges	6
Depth of Cut	7
Clearance Angle	0°
IC Tolerance (± inch)	0.001
IC Tolerance (± mm)	0.025
Height Tolerance (± inch)	0.001
Height Tolerance (± mm)	0.025
Thickness Tolerance (± inch)	0.001
Thickness Tolerance (± mm)	0.025
Insert Type	With Screw hole, chipbreaker on both sides
Insert IC (inch)	0.508
Insert IC (mm)	12.9032
Thickness (in)	0.246
Thickness (mm)	6.248
Corner Radius (in)	0.079
Corner Radius (mm)	2.007
Edge Length (in)	0.063
Edge Length (mm)	1.6
Cutting Edge Lgth (in)	0.276
Cutting Edge Lgth (mm)	7.01
Insert Diam (in)	0.508
Insert Diam (mm)	12.9
Chipbreaker Geometry	GN
Chipbreaker Application	General Application
Cutting Edge Angle	90°
Edge Condition	Round
Feed Direction	Right hand Insert
Wiper Edge Length	0.063
Grade	YG501
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	MILLING INSERT
Application	Cast Iron
System of Measurement	Inch
Application code	K

Hard Milling grade for Cast Iron. Substrate especially designed for high wear resistance. Excellent wear resistance in cast iron milling applications.
