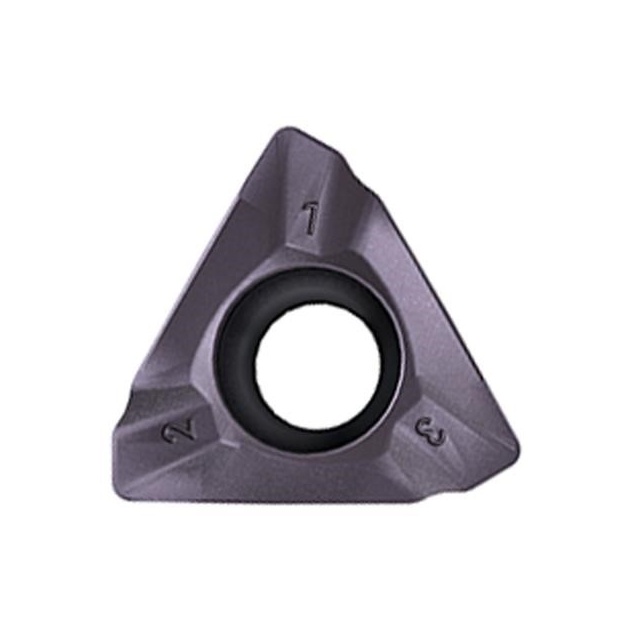

YG1-12000997 – TPKT070308R-GN-YG012/TPKT070308R-GN – Indexable Milling Insert

Original price was: $28.43.Current price is: $19.45.

TPKT070308R-GN-YG012/TPKT070308R-GN — YG-1 Indexable Milling Insert.

Sold in boxes of 10 only — price shown is per insert. Quantity 10 = one box of 10 inserts.

UPC: N/A SKU: YG1-12000997 Categories: Indexable, Indexable, Indexable Insert, YG-1

EDP No.	12000997
Description	TPKT070308R-GN-YG012/TPKT070308R-GN
Package	Box of 10 pieces (price shown per piece)
Available Qty.	Call for availability

Specifications

Series	TPKT
ANSI Code	TPKT070308R-GN
ISO Code	TPKT070308R-GN
ANSI	ISO
Shape	Triangle
# of Cutting Edges	3
Depth of Cut	4.5
Clearance Angle	Special
IC Tolerance (± inch)	0.002
IC Tolerance (± mm)	0.051
Height Tolerance (± inch)	0.001
Height Tolerance (± mm)	0.025
Thickness Tolerance (± inch)	0.005
Thickness Tolerance (± mm)	0.127
Insert Type	With Screw hole, chipbreaker on one side only
Insert IC (inch)	0.217
Insert IC (mm)	5.5118
Thickness (in)	0.115
Thickness (mm)	2.921
Corner Radius (in)	0.031
Corner Radius (mm)	0.787
Edge Length (in)	0.02
Edge Length (mm)	0.508
Cutting Edge Lgth (in)	0.177
Cutting Edge Lgth (mm)	4.496
Insert Diam (in)	0.217
Insert Diam (mm)	5.5118
Chipbreaker Geometry	GN
Chipbreaker Application	General Application
Cutting Edge Angle	90°
Wiper Edge Clearance	11
Feed Direction	Right hand Insert
Wiper Edge Length	0.02
Grade	YG012
Material	Carbide
Coating Process	PVD
Coating	TiAlN
Type	MILLING INSERT
Application	Steel,Hardened Steel
System of Measurement	Inch
Application code	P,H

Optimized Milling Grade for Pre-Hardened & Hardened steel. Applied Extreme Oxidaion PVD layer and Crack-free Substrate. Excellent Cutting performance for Die & Mold applicaition
